Base class to solve a general eigenvalue problem (linear or not) More...

#include <VirtualEigenvalueSolver.hxx>

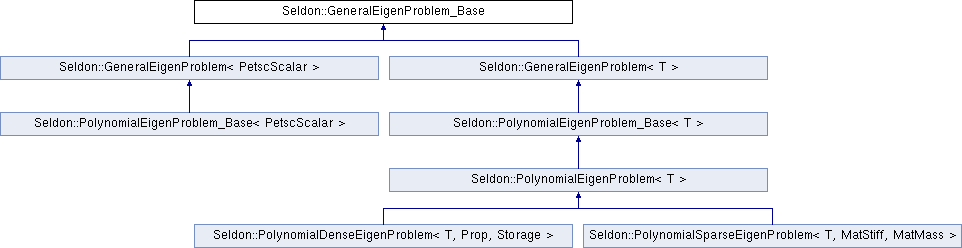

Inheritance diagram for Seldon::GeneralEigenProblem_Base:

Public Types
enum	{ SMALL_EIGENVALUES, LARGE_EIGENVALUES, CENTERED_EIGENVALUES }
	parts of the spectrum (near from 0, at infinity or around a given value) More...

enum	{ SORTED_REAL, SORTED_IMAG, SORTED_MODULUS, SORTED_USER }
	different sorting strategies

Public Member Functions
	GeneralEigenProblem_Base ()
	default constructor

virtual	~GeneralEigenProblem_Base ()
	destructor

int	GetRankCommunicator () const
	returns rank for the solver communicator

int	GetGlobalRankCommunicator () const
	returns rank for the global communicator

int	GetNbAskedEigenvalues () const
	returns the number of eigenvalues asked by the user

void	SetNbAskedEigenvalues (int n)
	sets the number of eigenvalues to compute

int	GetTypeSpectrum () const
	returns the spectrum desired (large, small eigenvalues, etc)

int	GetTypeSorting () const
	returns how eigenvalues are sorted (real, imaginary part or modulus)

void	SetStoppingCriterion (double eps)
	modifies the stopping critertion

double	GetStoppingCriterion () const
	returns the stopping criterion

void	SetNbMaximumIterations (int n)
	sets the maximal number of iterations allowed for the iterative algorithm

int	GetNbMaximumIterations () const
	returns the maximal number of iterations allowed for the iterative algorithm

int	GetNbMatrixVectorProducts () const
	returns the number of matrix-vector products performed since last call to Init

int	GetNbArnoldiVectors () const
	returns the number of Arnoldi vectors to use

void	SetNbArnoldiVectors (int n)
	sets the number of Arnoldi vectors to use

int	GetM () const
	returns number of rows

int	GetGlobalM () const
	returns global number of rows

int	GetN () const
	returns number of columns

int	GetPrintLevel () const
	returns level of verbosity

void	SetPrintLevel (int lvl)
	sets the level of verbosity

void	IncrementProdMatVect ()
	increment of the number of matrix vector products

int	GetNbLinearSolves () const
	returns the number of linear solves

void	IncrementLinearSolves ()
	increments the number of linear solves

void	Init (int n)
	initialisation of the size of the eigenvalue problem

virtual bool	IsSymmetricProblem () const

virtual bool	IsHermitianProblem () const

Protected Attributes
int	nb_eigenvalues_wanted
	number of eigenvalues to be computed

int	nb_arnoldi_vectors
	number of Arnoldi vectors

bool	automatic_selection_arnoldi_vectors
	if true nb_arnoldi_vectors is automatically computed

int	type_spectrum_wanted
	which spectrum ? Near from Zero ? Near from Infinity ? or near from a value ?

int	type_sort_eigenvalues
	large eigenvalues because of their real part, imaginary part or magnitude ?

double	stopping_criterion
	threshold for Arpack's iterative process

int	nb_maximum_iterations
	Maximal number of iterations.

int	nb_linear_solves
	number of linear solves

int	display_every

int	print_level

int	nb_prod
	number of matrix-vector products

int	n_
	size of the problem

int	nglob

Detailed Description

Base class to solve a general eigenvalue problem (linear or not)

Definition at line 236 of file VirtualEigenvalueSolver.hxx.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

parts of the spectrum (near from 0, at infinity or around a given value)

SMALL_EIGENVALUES : seeking eigenvalues near 0 LARGE_EIGENVALUES : seeking largest eigenvalues CENTERED_EIGENVALUES : seeking eigenvalues near the shift sigma

Definition at line 245 of file VirtualEigenvalueSolver.hxx.

The documentation for this class was generated from the following files:

computation/interfaces/eigenvalue/VirtualEigenvalueSolver.hxx
computation/interfaces/eigenvalue/VirtualEigenvalueSolver.cxx
computation/interfaces/eigenvalue/VirtualEigenvalueSolverInline.cxx
