Heterogeneous matrix collection class. More...

#include <HeterogeneousMatrixCollection.hxx>

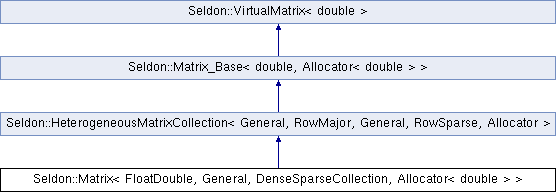

Inheritance diagram for Seldon::Matrix< FloatDouble, General, DenseSparseCollection, Allocator< double > >:

Public Types
typedef General	property

typedef DenseSparseCollection	storage

typedef Allocator< double >	allocator

typedef Matrix< float, General, RowMajor, Allocator< float > >	float_dense_m

typedef Matrix< float, General, RowSparse, Allocator< float > >	float_sparse_m

typedef Matrix< double, General, RowMajor, Allocator< double > >	double_dense_m

typedef Matrix< double, General, RowSparse, Allocator< double > >	double_sparse_m

typedef Matrix< float_dense_m, General, RowMajorCollection, NewAlloc< float_dense_m > >	float_dense_c

typedef Matrix< float_sparse_m, General, RowMajorCollection, NewAlloc< float_sparse_m > >	float_sparse_c

typedef Matrix< double_dense_m, General, RowMajorCollection, NewAlloc< double_dense_m > >	double_dense_c

typedef Matrix< double_sparse_m, General, RowMajorCollection, NewAlloc< double_sparse_m > >	double_sparse_c

typedef Allocator< double > ::value_type	value_type

typedef Allocator< double > ::pointer	pointer

typedef Allocator< double > ::const_pointer	const_pointer

typedef Allocator< double > ::reference	reference

typedef Allocator< double > ::const_reference	const_reference

Public Member Functions
	Matrix ()
	Default constructor. More...

	Matrix (int i, int j)
	Main constructor. More...

void	Clear ()
	Clears the matrix collection without releasing memory.

void	Nullify ()
	Clears the matrix collection without releasing memory.

void	Nullify (int i, int j)
	Clears a given underlying matrix. More...

void	Deallocate ()
	Deallocates underlying the matrices.

int	GetM () const
	Returns the number of rows. More...

int	GetM (int i) const
	Returns the number of rows in an underlying matrix. More...

int	GetM (const Seldon::SeldonTranspose &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetM (const CBLAS_TRANSPOSE &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetMmatrix () const
	Returns the number of rows. More...

int	GetN () const
	Returns the number of columns. More...

int	GetN (int j) const
	Returns the number of columns in an underlying matrix. More...

int	GetN (const Seldon::SeldonTranspose &status) const
	Returns the number of columns of the matrix possibly transposed. More...

int	GetN (const CBLAS_TRANSPOSE &status) const
	Returns the number of columns of the matrix possibly transposed. More...

int	GetNmatrix () const
	Returns the number of columns. More...

int	GetSize () const
	Returns the number of elements stored in memory. More...

int	GetDataSize () const
	Returns the number of elements stored in memory. More...

size_t	GetMemorySize () const
	Returns size of A in bytes used to store the matrix.

int	GetType (int i, int j) const
	Returns the type of a given underlying matrix. More...

float_dense_c &	GetFloatDense ()
	Returns the collection of float dense underlying matrices. More...

const float_dense_c &	GetFloatDense () const

float_sparse_c &	GetFloatSparse ()
	Returns the collection of float sparse underlying matrices. More...

const float_sparse_c &	GetFloatSparse () const

double_dense_c &	GetDoubleDense ()
	Returns the collection of double dense underlying matrices. More...

const double_dense_c &	GetDoubleDense () const

double_sparse_c &	GetDoubleSparse ()
	Returns the collection of double sparse underlying matrices. More...

const double_sparse_c &	GetDoubleSparse () const

void	Reallocate (int i, int j)
	Reallocates memory to resize the matrix collection. More...

void	SetMatrix (int m, int n, const float_dense_m &)

void	SetMatrix (int m, int n, const float_sparse_m &)

void	SetMatrix (int m, int n, const double_dense_m &)

void	SetMatrix (int m, int n, const double_sparse_m &)

void	GetMatrix (int m, int n, float_dense_m &) const

void	GetMatrix (int m, int n, float_sparse_m &) const

void	GetMatrix (int m, int n, double_dense_m &) const

void	GetMatrix (int m, int n, double_sparse_m &) const

double	operator() (int i, int j) const
	Access operator. More...

void	Copy (const HeterogeneousMatrixCollection< General, RowMajor, General, RowSparse, Allocator > &A)
	Duplicates a matrix collection (assignment operator). More...

void	Print () const
	Displays the matrix collection on the standard output. More...

void	Write (string FileName, bool with_size) const
	Writes the matrix collection in a file. More...

void	Write (ostream &FileStream, bool with_size) const
	Writes the matrix collection to an output stream. More...

void	WriteText (string FileName) const
	Writes the matrix collection in a file. More...

void	WriteText (ostream &FileStream) const
	Writes the matrix collection to an output stream. More...

void	Read (string FileName)
	Reads the matrix collection from a file. More...

void	Read (istream &FileStream)
	Reads the matrix collection from an input stream. More...

pointer	GetData () const
	Returns a pointer to the data array. More...

const_pointer	GetDataConst () const
	Returns a const pointer to the data array. More...

void *	GetDataVoid () const
	Returns a pointer of type "void*" to the data array. More...

const void *	GetDataConstVoid () const
	Returns a pointer of type "const void*" to the data array. More...

Protected Attributes
int	nz_
	Number of non-zero elements.

int	Mmatrix_
	Number of rows of matrices.

int	Nmatrix_
	Number of columns of matrices.

Vector< int >	Mlocal_
	Number of rows in the underlying matrices.

Vector< int >	Mlocal_sum_
	Cumulative number of rows in the underlying matrices.

Vector< int >	Nlocal_
	Number of columns in the underlying matrices.

Vector< int >	Nlocal_sum_
	Cumulative number of columns in the underlying matrices.

Matrix< int, General, RowMajor >	collection_
	Type of the underlying matrices. More...

float_dense_c	float_dense_c_
	Pointers of the underlying float dense matrices.

float_sparse_c	float_sparse_c_
	Pointers of the underlying float sparse matrices.

double_dense_c	double_dense_c_
	Pointers of the underlying double dense matrices.

double_sparse_c	double_sparse_c_
	Pointers of the underlying double sparse matrices.

pointer	data_

int	m_

int	n_

Detailed Description

template<template< class U > class Allocator>
class Seldon::Matrix< FloatDouble, General, DenseSparseCollection, Allocator< double > >

Heterogeneous matrix collection class.

Definition at line 180 of file HeterogeneousMatrixCollection.hxx.

Constructor & Destructor Documentation

◆ Matrix() [1/2]

template<template< class U > class Allocator>

Seldon::Matrix< FloatDouble, General, DenseSparseCollection, Allocator< double > >::Matrix

inline

Default constructor.

On exit, the matrix is an empty 0x0 matrix.

Definition at line 397 of file HeterogeneousMatrixCollectionInline.cxx.

◆ Matrix() [2/2]

template<template< class U > class Allocator>

Seldon::Matrix< FloatDouble, General, DenseSparseCollection, Allocator< double > >::Matrix	(	int	i,
		int	j
	)

inline

Main constructor.

Builds a i x j collection matrix.

Parameters

[in]	i	number of rows of matrices.
[in]	j	number of columns of matrices.

Definition at line 412 of file HeterogeneousMatrixCollectionInline.cxx.

Member Function Documentation

◆ Copy()

Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::Copy ( const HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator > & A )

inherited

Duplicates a matrix collection (assignment operator).

Parameters

[in] A matrix collection to be copied.

Note: Memory is duplicated: A is therefore independent from the current instance after the copy.

Definition at line 850 of file HeterogeneousMatrixCollection.cxx.

◆ GetData()

Matrix_Base< double , Allocator< double > >::pointer Seldon::Matrix_Base< double , Allocator< double > >::GetData

inlineinherited

Returns a pointer to the data array.

Returns a pointer to data, i.e. the data array 'data_'.

Returns: A pointer to the data array.

Definition at line 241 of file Matrix_BaseInline.cxx.

◆ GetDataConst()

Matrix_Base< double , Allocator< double > >::const_pointer Seldon::Matrix_Base< double , Allocator< double > >::GetDataConst

inlineinherited

Returns a const pointer to the data array.

Returns a const pointer to data, i.e. the data array 'data_'.

Returns: A const pointer to the data array.

Definition at line 254 of file Matrix_BaseInline.cxx.

◆ GetDataConstVoid()

const void * Seldon::Matrix_Base< double , Allocator< double > >::GetDataConstVoid

inlineinherited

Returns a pointer of type "const void*" to the data array.

Returns a pointer of type "const void*" to data, i.e. the data array 'data_'.

Returns: A const pointer of type "void*" to the data array.

Definition at line 280 of file Matrix_BaseInline.cxx.

◆ GetDataSize()

int Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetDataSize

inlineinherited

Returns the number of elements stored in memory.

Returns: The number of elements stored in memory.

Definition at line 203 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetDataVoid()

void * Seldon::Matrix_Base< double , Allocator< double > >::GetDataVoid

inlineinherited

Returns a pointer of type "void*" to the data array.

Returns a pointer of type "void*" to data, i.e. the data array 'data_'.

Returns: A pointer of type "void*" to the data array.

Definition at line 267 of file Matrix_BaseInline.cxx.

◆ GetDoubleDense()

const HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::double_dense_c & Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetDoubleDense

inlineinherited

Returns the collection of double dense underlying matrices.

Returns: the collection of double dense underlying matrices.

Definition at line 331 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetDoubleSparse()

const HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::double_sparse_c & Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetDoubleSparse

inlineinherited

Returns the collection of double sparse underlying matrices.

Returns: the collection of double sparse underlying matrices.

Definition at line 363 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetFloatDense()

const HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::float_dense_c & Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetFloatDense

inlineinherited

Returns the collection of float dense underlying matrices.

Returns: the collection of float dense underlying matrices.

Definition at line 267 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetFloatSparse()

const HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::float_sparse_c & Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetFloatSparse

inlineinherited

Returns the collection of float sparse underlying matrices.

Returns: the collection of float sparse underlying matrices.

Definition at line 299 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetM() [1/4]

int Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetM

inlineinherited

Returns the number of rows.

Returns: the total number of rows. It is the sum of the number of rows in the underlying matrices.

Definition at line 82 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetM() [2/4]

int Seldon::VirtualMatrix< double >::GetM ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 122 of file Matrix_BaseInline.cxx.

◆ GetM() [3/4]

int Seldon::VirtualMatrix< double >::GetM ( const Seldon::SeldonTranspose & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 92 of file Matrix_BaseInline.cxx.

◆ GetM() [4/4]

int Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetM ( int i ) const

inlineinherited

Returns the number of rows in an underlying matrix.

Parameters

[in] i row index of the underlying matrix.

Returns: The number of rows in the underlying matrices with row index i.

Definition at line 112 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetMmatrix()

int Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetMmatrix

inlineinherited

Returns the number of rows.

Returns: the total number of rows. It is the sum of the number of rows in the underlying matrices.

Definition at line 97 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetN() [1/4]

int Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetN

inlineinherited

Returns the number of columns.

Returns: the total number of columns. It is the sum of the number of columns in the underlying matrices.

Definition at line 135 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetN() [2/4]

int Seldon::VirtualMatrix< double >::GetN ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 137 of file Matrix_BaseInline.cxx.

◆ GetN() [3/4]

int Seldon::VirtualMatrix< double >::GetN ( const Seldon::SeldonTranspose & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 107 of file Matrix_BaseInline.cxx.

◆ GetN() [4/4]

int Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetN ( int j ) const

inlineinherited

Returns the number of columns in an underlying matrix.

Parameters

[in] j column index of the underlying matrix.

Returns: The number of columns in the underlying matrices with column index j.

Definition at line 166 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetNmatrix()

int Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetNmatrix

inlineinherited

Returns the number of columns.

Returns: the total number of columns. It is the sum of the number of columns in the underlying matrices.

Definition at line 150 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetSize()

int Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetSize

inlineinherited

Returns the number of elements stored in memory.

Returns: The number of elements stored in memory.

Definition at line 188 of file HeterogeneousMatrixCollectionInline.cxx.

◆ GetType()

int Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::GetType	(	int	i,
		int	j
	)		const

inlineinherited

Returns the type of a given underlying matrix.

Type 0 refers to a float dense matrice. Type 1 refers to a float sparse matrice. Type 2 refers to a double dense matrice. Type 3 refers to a double sparse matrice.

Parameters

[in]	i	row of the given underlying matrix.
[in]	j	column of the given underlying matrix.

Returns: The type of the underlying matrix.

Definition at line 238 of file HeterogeneousMatrixCollectionInline.cxx.

◆ Nullify()

void Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::Nullify	(	int	i,
		int	j
	)

inherited

Clears a given underlying matrix.

Parameters

[in]	i	row of the underlying matrix to be nullified.
[in]	j	column of the underlying matrix to be nullified.

Definition at line 142 of file HeterogeneousMatrixCollection.cxx.

◆ operator()()

double Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::operator()	(	int	i,
		int	j
	)		const

inherited

Access operator.

Returns the value of element (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 764 of file HeterogeneousMatrixCollection.cxx.

◆ Print()

void Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::Print

inherited

Displays the matrix collection on the standard output.

Displays elements on the standard output, in text format.

Definition at line 925 of file HeterogeneousMatrixCollection.cxx.

◆ Read() [1/2]

void Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::Read ( istream & FileStream )

inherited

Reads the matrix collection from an input stream.

Reads a matrix collection stored in binary format from a stream. The number of rows of matrices (integer) and the number of columns of matrices (integer) are read, and the underlying matrices are then read in the same order as it should be in memory (e.g. row-major storage).

Parameters

[in,out] FileStream input stream.

Definition at line 1199 of file HeterogeneousMatrixCollection.cxx.

◆ Read() [2/2]

void Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::Read ( string FileName )

inherited

Reads the matrix collection from a file.

Reads a matrix collection stored in binary format in a file. The number of rows of matrices (integer) and the number of columns of matrices (integer) are read, and the underlying matrices are then read in the same order as it should be in memory (e.g. row-major storage).

Parameters

[in] FileName input file name.

Definition at line 1169 of file HeterogeneousMatrixCollection.cxx.

◆ Reallocate()

void Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::Reallocate	(	int	i,
		int	j
	)

inherited

Reallocates memory to resize the matrix collection.

On exit, the matrix is a matrix collection with i x j underlying matrices.

Parameters

[in]	i	number of rows of matrices.
[in]	j	number of columns of matrices.

Warning: Depending on your allocator, data may be lost.

Definition at line 211 of file HeterogeneousMatrixCollection.cxx.

◆ Write() [1/2]

void Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::Write	(	ostream &	FileStream,
		bool	with_size = `true`
	)		const

inherited

Writes the matrix collection to an output stream.

Writes the matrix collection to an output stream in binary format. The number of rows of matrices (integer) and the number of columns of matrices (integer) are written, and the underlying matrices are then written in the same order as in memory (e.g. row-major storage).

Parameters

[in,out]	FileStream	output stream.
[in]	with_size	if set to 'false', the dimensions of the matrix are not saved.

Definition at line 980 of file HeterogeneousMatrixCollection.cxx.

◆ Write() [2/2]

void Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::Write	(	string	FileName,
		bool	with_size
	)		const

inherited

Writes the matrix collection in a file.

Stores the matrix collection in a file in binary format. The number of rows of matrices (integer) and the number of columns of matrices (integer) are written, and the underlying matrices are then written in the same order as in memory (e.g. row-major storage).

Parameters

[in]	FileName	output file name.
[in]	with_size	if set to 'false', the dimensions of the matrix are not saved.

Definition at line 949 of file HeterogeneousMatrixCollection.cxx.

◆ WriteText() [1/2]

void Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::WriteText ( ostream & FileStream ) const

inherited

Writes the matrix collection to an output stream.

Stores the matrix to an output stream in text format. Only the underlying matrices are written, without the dimensions. Each row is written on a single line and elements of a row are delimited by tabulations.

Parameters

[in,out] FileStream output stream.

Definition at line 1095 of file HeterogeneousMatrixCollection.cxx.

◆ WriteText() [2/2]

void Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::WriteText ( string FileName ) const

inherited

Writes the matrix collection in a file.

Stores the matrix in a file in text format. Only the underlying matrices are written, without the dimensions. Each row is written on a single line and elements of a row are delimited by tabulations.

Parameters

[in] FileName output file name.

Definition at line 1063 of file HeterogeneousMatrixCollection.cxx.

Member Data Documentation

◆ collection_

Matrix<int, General, RowMajor> Seldon::HeterogeneousMatrixCollection< General , RowMajor , General , RowSparse , Allocator >::collection_

protectedinherited

Type of the underlying matrices.

Type 0 refers to float dense matrices. Type 1 refers to float sparse matrices. Type 2 refers to double dense matrices. Type 3 refers to double sparse matrices.

Definition at line 88 of file HeterogeneousMatrixCollection.hxx.

The documentation for this class was generated from the following files:

matrix/HeterogeneousMatrixCollection.hxx
matrix/HeterogeneousMatrixCollectionInline.cxx

Public Types

Public Member Functions

Protected Attributes

Detailed Description

template<template< class U > class Allocator> class Seldon::Matrix< FloatDouble, General, DenseSparseCollection, Allocator< double > >

Constructor & Destructor Documentation

◆ Matrix() [1/2]

◆ Matrix() [2/2]

Member Function Documentation

◆ Copy()

◆ GetData()

◆ GetDataConst()

◆ GetDataConstVoid()

◆ GetDataSize()

◆ GetDataVoid()

◆ GetDoubleDense()

◆ GetDoubleSparse()

◆ GetFloatDense()

◆ GetFloatSparse()

◆ GetM() [1/4]

◆ GetM() [2/4]

◆ GetM() [3/4]

◆ GetM() [4/4]

◆ GetMmatrix()

◆ GetN() [1/4]

◆ GetN() [2/4]

◆ GetN() [3/4]

◆ GetN() [4/4]

◆ GetNmatrix()

◆ GetSize()

◆ GetType()

◆ Nullify()

◆ operator()()

◆ Print()

◆ Read() [1/2]

◆ Read() [2/2]

◆ Reallocate()

◆ Write() [1/2]

◆ Write() [2/2]

◆ WriteText() [1/2]

◆ WriteText() [2/2]

Member Data Documentation

◆ collection_

template<template< class U > class Allocator>
class Seldon::Matrix< FloatDouble, General, DenseSparseCollection, Allocator< double > >
