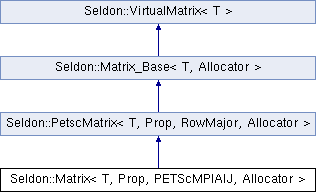

Inheritance diagram for Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >:

Public Types
typedef Allocator::value_type	value_type

typedef Allocator::pointer	pointer

typedef Allocator::const_pointer	const_pointer

typedef Allocator::reference	reference

typedef Allocator::const_reference	const_reference

typedef Allocator::value_type	entry_type

typedef Allocator::value_type	access_type

typedef Allocator::value_type	const_access_type

Public Member Functions
	Matrix ()
	Default constructor. More...

	Matrix (int i, int j)
	Main constructor. More...

	Matrix (Mat &A)
	Copy constructor. More...

	Matrix (const Matrix< T, Prop, PETScMPIAIJ, Allocator > &A)
	Copy constructor. More...

void	Reallocate (int i, int j, int local_i=PETSC_DECIDE, int local_j=PETSC_DECIDE)
	Reallocates memory to resize the matrix. More...

value_type	operator() (int i, int j)
	Access operator. More...

value_type	operator() (int i, int j) const
	Access operator. More...

void	Copy (const Matrix< T, Prop, PETScMPIAIJ, Allocator > &A)
	Duplicates a matrix. More...

Matrix< T, Prop, PETScMPIAIJ, Allocator > &	operator= (const Matrix< T, Prop, PETScMPIAIJ, Allocator > &A)
	Duplicates a matrix (assignment operator). More...

template<class T0 , class Allocator0 >
void	Copy (const Matrix< T0, General, RowSparse, Allocator0 > &A)
	Duplicates a matrix. More...

int	GetLocalM () const
	Returns the number of local rows of the inner PETSc matrix. More...

int	GetLocalN () const
	Gets the number of local columns of the inner PETSc matrix. More...

void	Print () const
	Displays the matrix on the standard output. More...

void	SetCommunicator (MPI_Comm mpi_communicator)
	Sets the MPI communicator. More...

MPI_Comm	GetCommunicator () const
	Returns the MPI communicator of the current PETSc matrix. More...

void	Clear ()
	Clears the matrix. More...

void	Nullify ()
	Clears the matrix without releasing memory. More...

Mat &	GetPetscMatrix ()
	Returns a reference on the inner petsc matrix. More...

const Mat &	GetPetscMatrix () const

size_t	GetMemorySize () const
	Returns size of A in bytes used to store the matrix.

void	Resize (int i, int j)
	Reallocates memory to resize the matrix and keeps previous entries. More...

void	SetData (int i, int j, pointer data)
	Changes the size of the matrix and sets its data array (low level method). More...

const_reference	Val (int i, int j) const
	Access operator. More...

reference	Val (int i, int j)
	Access operator. More...

reference	operator[] (int i)
	Access to elements of the data array. More...

const_reference	operator[] (int i) const
	Access to elements of the data array. More...

void	Set (int, int, T)

void	SetBuffer (int, int, T, InsertMode)
	Inserts or adds values into certain locations of a matrix. More...

void	Flush () const
	Assembles the PETSc matrix.

void	GetProcessorRowRange (int &i, int &j) const
	Returns the range of row indices owned by this processor. More...

void	Copy (const Mat &A)
	Duplicates a matrix. More...

void	Zero ()
	Sets all elements to zero. More...

void	SetIdentity ()
	Sets the matrix to the identity.

void	Fill ()
	Fills the matrix with 0, 1, 2, ... More...

void	Fill (const T0 &x)
	Fills the matrix with a given value. More...

void	FillRand ()
	Fills a matrix randomly. More...

void	Print (int a, int b, int m, int n) const
	Displays a sub-matrix on the standard output. More...

void	Print (int l) const
	Displays a square sub-matrix on the standard output. More...

void	Write (string FileName, bool with_size) const
	Writes the matrix in a file. More...

void	Write (ostream &FileStream, bool with_size) const
	Writes the matrix to an output stream. More...

void	WriteText (string FileName) const
	Writes the matrix in a file. More...

void	WriteText (ostream &FileStream) const
	Writes the matrix to an output stream. More...

void	Read (string FileName)
	Reads the matrix from a file. More...

void	Read (istream &FileStream)
	Reads the matrix from an input stream. More...

void	ReadText (string FileName)
	Reads the matrix from a file. More...

void	ReadText (istream &FileStream)
	Reads the matrix from an input stream. More...

pointer	GetData () const
	Returns a pointer to the data array. More...

const_pointer	GetDataConst () const
	Returns a const pointer to the data array. More...

void *	GetDataVoid () const
	Returns a pointer of type "void*" to the data array. More...

const void *	GetDataConstVoid () const
	Returns a pointer of type "const void*" to the data array. More...

int	GetM () const
	Returns the number of rows. More...

int	GetM (const Seldon::SeldonTranspose &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetM (const CBLAS_TRANSPOSE &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetN () const
	Returns the number of columns. More...

int	GetN (const Seldon::SeldonTranspose &status) const
	Returns the number of columns of the matrix possibly transposed. More...

int	GetN (const CBLAS_TRANSPOSE &status) const
	Returns the number of columns of the matrix possibly transposed. More...

long	GetSize () const
	Returns the number of elements in the matrix. More...

Protected Attributes
Mat	petsc_matrix_
	Encapsulated PETSc matrix.

MPI_Comm	mpi_communicator_
	The MPI communicator to use.

bool	petsc_matrix_deallocated_
	Boolean to indicate if the inner PETSc matrix is destroyed or not.

pointer	data_

int	m_

int	n_

Detailed Description

template<class T, class Prop, class Allocator>
class Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >

Definition at line 188 of file PetscMatrix.hxx.

Constructor & Destructor Documentation

◆ Matrix() [1/4]

template<class T , class Prop , class Allocator >

Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::Matrix

inline

Default constructor.

On exit, the matrix is an empty 0x0 matrix.

Definition at line 697 of file PetscMatrixInline.cxx.

◆ Matrix() [2/4]

template<class T , class Prop , class Allocator >

Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::Matrix	(	int	i,
		int	j
	)

inline

Main constructor.

Builds a i x j collection matrix.

Parameters

[in]	i	number of rows of matrices.
[in]	j	number of columns of matrices.

Definition at line 709 of file PetscMatrixInline.cxx.

◆ Matrix() [3/4]

template<class T , class Prop , class Allocator >

Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::Matrix ( Mat & A )

inline

Copy constructor.

Parameters

[in] A PETCs matrix to be copied.

Definition at line 722 of file PetscMatrixInline.cxx.

◆ Matrix() [4/4]

template<class T , class Prop , class Allocator >

Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::Matrix ( const Matrix< T, Prop, PETScMPIAIJ, Allocator > & A )

inline

Copy constructor.

Parameters

[in] A matrix to be copied.

Definition at line 734 of file PetscMatrixInline.cxx.

Member Function Documentation

◆ Clear()

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Clear

inlineinherited

Clears the matrix.

Destructs the matrix.

Warning: On exit, the matrix is an empty 0x0 matrix.

Definition at line 109 of file PetscMatrixInline.cxx.

◆ Copy() [1/3]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Copy ( const Mat & A )

inherited

Duplicates a matrix.

Parameters

A	matrix to be copied.

Note: Memory is duplicated: 'A' is therefore independent from the current instance after the copy.

Definition at line 37 of file PetscMatrix.cxx.

◆ Copy() [2/3]

template<class T , class Prop , class Allocator >

void Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::Copy ( const Matrix< T, Prop, PETScMPIAIJ, Allocator > & A )

inline

Duplicates a matrix.

Parameters

A	matrix to be copied.

Note: Memory is duplicated: 'A' is therefore independent from the current instance after the copy.

Definition at line 840 of file PetscMatrixInline.cxx.

◆ Copy() [3/3]

template<class T , class Prop , class Allocator >

template<class T0 , class Allocator0 >

void Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::Copy ( const Matrix< T0, General, RowSparse, Allocator0 > & A )

Duplicates a matrix.

Parameters

A	matrix to be copied.

Note: Memory is duplicated: 'A' is therefore independent from the current instance after the copy.

Definition at line 379 of file PetscMatrix.cxx.

◆ Fill() [1/2]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Fill

inherited

Fills the matrix with 0, 1, 2, ...

On exit, the matrix is filled with 0, 1, 2, 3, ... The order of those numbers depends on the storage.

Definition at line 76 of file PetscMatrix.cxx.

◆ Fill() [2/2]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Fill ( const T0 & x )

inherited

Fills the matrix with a given value.

Parameters

x	the value to fill the matrix with.

Definition at line 89 of file PetscMatrix.cxx.

◆ FillRand()

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::FillRand

inherited

Fills a matrix randomly.

Note: The random generator is very basic.

Definition at line 101 of file PetscMatrix.cxx.

◆ GetCommunicator()

MPI_Comm Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::GetCommunicator

inlineinherited

Returns the MPI communicator of the current PETSc matrix.

Returns: The MPI communicator of the current PETSc matrix.

Definition at line 87 of file PetscMatrixInline.cxx.

◆ GetData()

template<class T , class Allocator >

Matrix_Base< T, Allocator >::pointer Seldon::Matrix_Base< T, Allocator >::GetData

inlineinherited

Returns a pointer to the data array.

Returns a pointer to data, i.e. the data array 'data_'.

Returns: A pointer to the data array.

Definition at line 241 of file Matrix_BaseInline.cxx.

◆ GetDataConst()

template<class T , class Allocator >

Matrix_Base< T, Allocator >::const_pointer Seldon::Matrix_Base< T, Allocator >::GetDataConst

inlineinherited

Returns a const pointer to the data array.

Returns a const pointer to data, i.e. the data array 'data_'.

Returns: A const pointer to the data array.

Definition at line 254 of file Matrix_BaseInline.cxx.

◆ GetDataConstVoid()

template<class T , class Allocator >

const void * Seldon::Matrix_Base< T, Allocator >::GetDataConstVoid

inlineinherited

Returns a pointer of type "const void*" to the data array.

Returns a pointer of type "const void*" to data, i.e. the data array 'data_'.

Returns: A const pointer of type "void*" to the data array.

Definition at line 280 of file Matrix_BaseInline.cxx.

◆ GetDataVoid()

template<class T , class Allocator >

void * Seldon::Matrix_Base< T, Allocator >::GetDataVoid

inlineinherited

Returns a pointer of type "void*" to the data array.

Returns a pointer of type "void*" to data, i.e. the data array 'data_'.

Returns: A pointer of type "void*" to the data array.

Definition at line 267 of file Matrix_BaseInline.cxx.

◆ GetLocalM()

template<class T , class Prop , class Allocator >

int Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::GetLocalM

Returns the number of local rows of the inner PETSc matrix.

Returns: The number of local rows of the inner PETSc matrix.

Definition at line 422 of file PetscMatrix.cxx.

◆ GetLocalN()

template<class T , class Prop , class Allocator >

int Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::GetLocalN

Gets the number of local columns of the inner PETSc matrix.

Returns: The number of local columns of the inner PETSc matrix.

Definition at line 437 of file PetscMatrix.cxx.

◆ GetM() [1/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM

inlineinherited

Returns the number of rows.

Returns: The number of rows.

Definition at line 69 of file Matrix_BaseInline.cxx.

◆ GetM() [2/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 122 of file Matrix_BaseInline.cxx.

◆ GetM() [3/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM ( const Seldon::SeldonTranspose & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 92 of file Matrix_BaseInline.cxx.

◆ GetN() [1/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN

inlineinherited

Returns the number of columns.

Returns: The number of columns.

Definition at line 80 of file Matrix_BaseInline.cxx.

◆ GetN() [2/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 137 of file Matrix_BaseInline.cxx.

◆ GetN() [3/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN ( const Seldon::SeldonTranspose & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 107 of file Matrix_BaseInline.cxx.

◆ GetPetscMatrix()

const Mat & Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::GetPetscMatrix

inlineinherited

Returns a reference on the inner petsc matrix.

Returns a const reference on the inner petsc matrix.

Returns: A reference on the inner petsc matrix.; A const reference on the inner petsc matrix.

Definition at line 141 of file PetscMatrixInline.cxx.

◆ GetProcessorRowRange()

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::GetProcessorRowRange	(	int &	i,
		int &	j
	)		const

inlineinherited

Returns the range of row indices owned by this processor.

The matrix is laid out with the first $n_1$ rows on the first processor, next $n_2$ rows on the second, etc. If the current processor is $k$ , this method returns $n_k$ in i and $n_{k+1}$ in j. If i is set to PETSC_NULL on entry, it is not modified by this function. Same is true for j.

Parameters

[in,out]	i	the index of the first local row.
[in,out]	j	the index of the last local row, plus 1.

Definition at line 319 of file PetscMatrixInline.cxx.

◆ GetSize()

template<class T >

long Seldon::VirtualMatrix< T >::GetSize

inlineinherited

Returns the number of elements in the matrix.

Returns the number of elements in the matrix, i.e. the number of rows multiplied by the number of columns.

Returns: The number of elements in the matrix.

Definition at line 153 of file Matrix_BaseInline.cxx.

◆ Nullify()

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Nullify

inlineinherited

Clears the matrix without releasing memory.

On exit, the matrix is empty and the memory has not been released. It is useful for low level manipulations on a Matrix instance.

Warning: Memory is not released except for me_.

Definition at line 128 of file PetscMatrixInline.cxx.

◆ operator()() [1/2]

template<class T , class Prop , class Allocator >

Matrix< T, Prop, PETScMPIAIJ, Allocator >::value_type Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::operator()	(	int	i,
		int	j
	)

inline

Access operator.

Returns the value of element (i, j).

Parameters

i	row index.
j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 773 of file PetscMatrixInline.cxx.

◆ operator()() [2/2]

template<class T , class Prop , class Allocator >

Matrix< T, Prop, PETScMPIAIJ, Allocator >::value_type Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::operator()	(	int	i,
		int	j
	)		const

inline

Access operator.

Returns the value of element (i, j).

Parameters

i	row index.
j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 807 of file PetscMatrixInline.cxx.

◆ operator=()

template<class T , class Prop , class Allocator >

Matrix< T, Prop, PETScMPIAIJ, Allocator > & Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::operator= ( const Matrix< T, Prop, PETScMPIAIJ, Allocator > & A )

inline

Duplicates a matrix (assignment operator).

Parameters

A	matrix to be copied.

Note: Memory is duplicated: 'A' is therefore independent from the current instance after the copy.

Definition at line 857 of file PetscMatrixInline.cxx.

◆ operator[]() [1/2]

PetscMatrix< T, Prop, RowMajor , Allocator >::reference Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::operator[] ( int i )

inlineinherited

Access to elements of the data array.

Provides a direct access to the data array.

Parameters

i index.

Returns: i-th element of the data array.

Definition at line 248 of file PetscMatrixInline.cxx.

◆ operator[]() [2/2]

PetscMatrix< T, Prop, RowMajor , Allocator >::const_reference Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::operator[] ( int i ) const

inlineinherited

Access to elements of the data array.

Provides a direct access to the data array.

Parameters

i index.

Returns: i-th element of the data array.

Definition at line 262 of file PetscMatrixInline.cxx.

◆ Print() [1/3]

template<class T , class Prop , class Allocator >

void Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::Print

Displays the matrix on the standard output.

Displays elements on the standard output, in text format. Each row is displayed on a single line and elements of a row are delimited by tabulations.

Definition at line 454 of file PetscMatrix.cxx.

◆ Print() [2/3]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Print	(	int	a,
		int	b,
		int	m,
		int	n
	)		const

inherited

Displays a sub-matrix on the standard output.

The sub-matrix is defined by its upper-left corner (a, b) and its bottom-right corner (m, n). So, elements with indices in [a, m] x [b, n] are displayed on the standard output, in text format. Each row is displayed on a single line and elements of a row are delimited by tabulations.

Parameters

a	row index of the upper-left corner.
b	column index of the upper-left corner.
m	row index of the bottom-right corner.
n	column index of the bottom-right corner.

Definition at line 122 of file PetscMatrix.cxx.

◆ Print() [3/3]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Print ( int l ) const

inherited

Displays a square sub-matrix on the standard output.

The sub-matrix is defined by its bottom-right corner (l, l). So, elements with indices in [0, 0] x [l, l] are displayed on the standard output, in text format. Each row is displayed on a single line and elements of a row are delimited by tabulations.

Parameters

l	dimension of the square matrix to be displayed.

Definition at line 139 of file PetscMatrix.cxx.

◆ Read() [1/2]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Read ( istream & FileStream )

inherited

Reads the matrix from an input stream.

Reads a matrix in binary format from an input stream. The number of rows (integer) and the number of columns (integer) are read, and matrix elements are then read in the same order as it should be in memory (e.g. row-major storage).

Parameters

FileStream input stream.

Definition at line 280 of file PetscMatrix.cxx.

◆ Read() [2/2]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Read ( string FileName )

inherited

Reads the matrix from a file.

Reads a matrix stored in binary format in a file. The number of rows (integer) and the number of columns (integer) are read, and matrix elements are then read in the same order as it should be in memory (e.g. row-major storage).

Parameters

FileName input file name.

Definition at line 252 of file PetscMatrix.cxx.

◆ ReadText() [1/2]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::ReadText ( istream & FileStream )

inherited

Reads the matrix from an input stream.

Reads a matrix in text format from an input stream.

Parameters

FileStream input stream.

Definition at line 318 of file PetscMatrix.cxx.

◆ ReadText() [2/2]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::ReadText ( string FileName )

inherited

Reads the matrix from a file.

Reads a matrix stored in text format in a file.

Parameters

FileName input file name.

Definition at line 293 of file PetscMatrix.cxx.

◆ Reallocate()

template<class T , class Prop , class Allocator >

void Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >::Reallocate	(	int	i,
		int	j,
		int	local_i = `PETSC_DECIDE`,
		int	local_j = `PETSC_DECIDE`
	)

inline

Reallocates memory to resize the matrix.

On exit, the matrix is a i x i matrix.

Parameters

i	number of rows.
j	number of columns.

Warning: Depending on your allocator, data may be lost.

Definition at line 750 of file PetscMatrixInline.cxx.

◆ Resize()

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Resize	(	int	i,
		int	j
	)

inlineinherited

Reallocates memory to resize the matrix and keeps previous entries.

On exit, the matrix is a i x j matrix.

Parameters

i	new number of rows.
j	new number of columns.

Warning: The previous entries are kept, extra-entries may not be initialized (depending of the allocator).

Definition at line 178 of file PetscMatrixInline.cxx.

◆ SetBuffer()

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::SetBuffer	(	int	i,
		int	j,
		T	value,
		InsertMode	insert_mode = `INSERT_VALUES`
	)

inlineinherited

Inserts or adds values into certain locations of a matrix.

Warning: These values may be cached, so 'Flush' must be called after all calls to SetBuffer() have been completed.

Parameters

[in]	i	row index where to insert the value.
[in]	i	column index where to insert the value.
[in]	value	the value to insert.
[in]	insert_mode	either INSERT_VALUES or ADD_VALUES, where ADD_VALUES adds the value to the entry, and INSERT_VALUES replaces existing entry with new value.

Definition at line 287 of file PetscMatrixInline.cxx.

◆ SetCommunicator()

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::SetCommunicator ( MPI_Comm mpi_communicator )

inlineinherited

Sets the MPI communicator.

Parameters

[in] mpi_communicator the mpi communicator to be set.

Definition at line 75 of file PetscMatrixInline.cxx.

◆ SetData()

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::SetData	(	int	i,
		int	j,
		pointer	data
	)

inlineinherited

Changes the size of the matrix and sets its data array (low level method).

The matrix is first cleared (memory is freed). The matrix is then resized to a i x j matrix, and the data array of the matrix is set to 'data'. 'data' elements are not duplicated: the new data array of the matrix is the 'data' array. It is useful to create a matrix from pre-existing data.

Parameters

i	new number of rows.
j	new number of columns.
data	new array storing elements.

Warning: 'data' has to be used carefully outside the object. Unless you use 'Nullify', 'data' will be freed by the destructor, which means that 'data' must have been allocated carefully. The matrix allocator should be compatible.

Note: This method should only be used by advanced users.

Definition at line 203 of file PetscMatrixInline.cxx.

◆ Val() [1/2]

PetscMatrix< T, Prop, RowMajor , Allocator >::reference Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Val	(	int	i,
		int	j
	)

inlineinherited

Access operator.

Returns the value of element (i, j).

Parameters

i	row index.
j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 234 of file PetscMatrixInline.cxx.

◆ Val() [2/2]

PetscMatrix< T, Prop, RowMajor , Allocator >::const_reference Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Val	(	int	i,
		int	j
	)		const

inlineinherited

Access operator.

Returns the value of element (i, j).

Parameters

i	row index.
j	column index.

Returns: Element (i, j) of the matrix.

Definition at line 219 of file PetscMatrixInline.cxx.

◆ Write() [1/2]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Write	(	ostream &	FileStream,
		bool	with_size
	)		const

inherited

Writes the matrix to an output stream.

Writes the matrix to an output stream in binary format. The number of rows (integer) and the number of columns (integer) are written, and matrix elements are then written in the same order as in memory (e.g. row-major storage).

Parameters

FileStream output stream.

Definition at line 189 of file PetscMatrix.cxx.

◆ Write() [2/2]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Write	(	string	FileName,
		bool	with_size
	)		const

inherited

Writes the matrix in a file.

Stores the matrix in a file in binary format. The number of rows (integer) and the number of columns (integer) are written, and matrix elements are then written in the same order as in memory (e.g. row-major storage).

Parameters

FileName output file name.

Definition at line 161 of file PetscMatrix.cxx.

◆ WriteText() [1/2]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::WriteText ( ostream & FileStream ) const

inherited

Writes the matrix to an output stream.

Writes the matrix to an output stream in text format. Only matrix elements are written (not dimensions). Each row is written on a single line and elements of a row are delimited by tabulations.

Parameters

FileStream output stream.

Definition at line 236 of file PetscMatrix.cxx.

◆ WriteText() [2/2]

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::WriteText ( string FileName ) const

inherited

Writes the matrix in a file.

Stores the matrix in a file in text format. Only matrix elements are written (not dimensions). Each row is written on a single line and elements of a row are delimited by tabulations.

Parameters

FileName output file name.

Definition at line 206 of file PetscMatrix.cxx.

◆ Zero()

void Seldon::PetscMatrix< T, Prop, RowMajor , Allocator >::Zero

inherited

Sets all elements to zero.

Warning: It fills the memory with zeros. If the matrix stores complex structures, use 'Fill' instead.

Definition at line 55 of file PetscMatrix.cxx.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Attributes

Detailed Description

template<class T, class Prop, class Allocator> class Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >

Constructor & Destructor Documentation

◆ Matrix() [1/4]

◆ Matrix() [2/4]

◆ Matrix() [3/4]

◆ Matrix() [4/4]

Member Function Documentation

◆ Clear()

◆ Copy() [1/3]

◆ Copy() [2/3]

◆ Copy() [3/3]

◆ Fill() [1/2]

◆ Fill() [2/2]

◆ FillRand()

◆ GetCommunicator()

◆ GetData()

◆ GetDataConst()

◆ GetDataConstVoid()

◆ GetDataVoid()

◆ GetLocalM()

◆ GetLocalN()

◆ GetM() [1/3]

◆ GetM() [2/3]

◆ GetM() [3/3]

◆ GetN() [1/3]

◆ GetN() [2/3]

◆ GetN() [3/3]

◆ GetPetscMatrix()

◆ GetProcessorRowRange()

◆ GetSize()

◆ Nullify()

◆ operator()() [1/2]

◆ operator()() [2/2]

◆ operator=()

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ Print() [1/3]

◆ Print() [2/3]

◆ Print() [3/3]

◆ Read() [1/2]

◆ Read() [2/2]

◆ ReadText() [1/2]

◆ ReadText() [2/2]

◆ Reallocate()

◆ Resize()

◆ SetBuffer()

◆ SetCommunicator()

◆ SetData()

◆ Val() [1/2]

◆ Val() [2/2]

◆ Write() [1/2]

◆ Write() [2/2]

◆ WriteText() [1/2]

◆ WriteText() [2/2]

◆ Zero()

template<class T, class Prop, class Allocator>
class Seldon::Matrix< T, Prop, PETScMPIAIJ, Allocator >
