Sub-matrix class. More...

#include <SubMatrix.hxx>

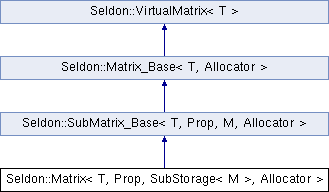

Inheritance diagram for Seldon::Matrix< T, Prop, SubStorage< M >, Allocator >:

Public Types
typedef M::value_type	value_type

typedef M::pointer	pointer

typedef M::const_pointer	const_pointer

typedef M::reference	reference

typedef M::const_reference	const_reference

typedef M::entry_type	entry_type

typedef M::access_type	access_type

typedef M::const_access_type	const_access_type

typedef M	storage

Public Member Functions
	Matrix (M &A, Vector< int > row_list, Vector< int > column_list)
	Main constructor.

	~Matrix ()
	Destructor.

reference	Get (int i, int j)

access_type	operator() (int i, int j)
	Access operator. More...

const_access_type	operator() (int i, int j) const
	Access operator. More...

entry_type &	Val (int i, int j)
	Access operator. More...

const entry_type &	Val (int i, int j) const
	Access operator. More...

int	GetM () const
	Returns the number of rows. More...

int	GetM (const SeldonTranspose &status) const
	Returns the number of rows of the sub-matrix possibly transposed. More...

int	GetM (const CBLAS_TRANSPOSE &status) const
	Returns the number of rows of the matrix possibly transposed. More...

int	GetN () const
	Returns the number of columns. More...

int	GetN (const SeldonTranspose &status) const
	Returns the number of columns of the sub-matrix possibly transposed. More...

int	GetN (const CBLAS_TRANSPOSE &status) const
	Returns the number of columns of the matrix possibly transposed. More...

void	Print () const
	Prints a matrix on screen. More...

pointer	GetData () const
	Returns a pointer to the data array. More...

const_pointer	GetDataConst () const
	Returns a const pointer to the data array. More...

void *	GetDataVoid () const
	Returns a pointer of type "void*" to the data array. More...

const void *	GetDataConstVoid () const
	Returns a pointer of type "const void*" to the data array. More...

long	GetSize () const
	Returns the number of elements in the matrix. More...

Protected Attributes
M *	matrix_
	Pointer to the base matrix.

Vector< int >	row_list_
	List of rows.

Vector< int >	column_list_
	List of columns.

pointer	data_

int	m_

int	n_

Detailed Description

template<class T, class Prop, class M, class Allocator>
class Seldon::Matrix< T, Prop, SubStorage< M >, Allocator >

Sub-matrix class.

Definition at line 34 of file SubMatrix.hxx.

Member Function Documentation

◆ GetData()

template<class T , class Allocator >

Matrix_Base< T, Allocator >::pointer Seldon::Matrix_Base< T, Allocator >::GetData

inlineinherited

Returns a pointer to the data array.

Returns a pointer to data, i.e. the data array 'data_'.

Returns: A pointer to the data array.

Definition at line 241 of file Matrix_BaseInline.cxx.

◆ GetDataConst()

template<class T , class Allocator >

Matrix_Base< T, Allocator >::const_pointer Seldon::Matrix_Base< T, Allocator >::GetDataConst

inlineinherited

Returns a const pointer to the data array.

Returns a const pointer to data, i.e. the data array 'data_'.

Returns: A const pointer to the data array.

Definition at line 254 of file Matrix_BaseInline.cxx.

◆ GetDataConstVoid()

template<class T , class Allocator >

const void * Seldon::Matrix_Base< T, Allocator >::GetDataConstVoid

inlineinherited

Returns a pointer of type "const void*" to the data array.

Returns a pointer of type "const void*" to data, i.e. the data array 'data_'.

Returns: A const pointer of type "void*" to the data array.

Definition at line 280 of file Matrix_BaseInline.cxx.

◆ GetDataVoid()

template<class T , class Allocator >

void * Seldon::Matrix_Base< T, Allocator >::GetDataVoid

inlineinherited

Returns a pointer of type "void*" to the data array.

Returns a pointer of type "void*" to data, i.e. the data array 'data_'.

Returns: A pointer of type "void*" to the data array.

Definition at line 267 of file Matrix_BaseInline.cxx.

◆ GetM() [1/3]

template<class T , class Prop , class M , class Allocator >

int Seldon::SubMatrix_Base< T, Prop, M, Allocator >::GetM

inlineinherited

Returns the number of rows.

Returns: The number of rows.

Definition at line 137 of file SubMatrix_BaseInline.cxx.

◆ GetM() [2/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetM ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of rows of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of rows of the possibly-transposed matrix.

Definition at line 122 of file Matrix_BaseInline.cxx.

◆ GetM() [3/3]

template<class T , class Prop , class M , class Allocator >

int Seldon::SubMatrix_Base< T, Prop, M, Allocator >::GetM ( const SeldonTranspose & status ) const

inlineinherited

Returns the number of rows of the sub-matrix possibly transposed.

Parameters

status assumed status about the transposition of the sub-matrix.

Returns: The number of rows of the possibly-transposed sub-matrix.

Definition at line 161 of file SubMatrix_BaseInline.cxx.

◆ GetN() [1/3]

template<class T , class Prop , class M , class Allocator >

int Seldon::SubMatrix_Base< T, Prop, M, Allocator >::GetN

inlineinherited

Returns the number of columns.

Returns: The number of columns.

Definition at line 148 of file SubMatrix_BaseInline.cxx.

◆ GetN() [2/3]

template<class T >

int Seldon::VirtualMatrix< T >::GetN ( const CBLAS_TRANSPOSE & status ) const

inlineinherited

Returns the number of columns of the matrix possibly transposed.

Parameters

status assumed status about the transposition of the matrix.

Returns: The number of columns of the possibly-transposed matrix.

Definition at line 137 of file Matrix_BaseInline.cxx.

◆ GetN() [3/3]

template<class T , class Prop , class M , class Allocator >

int Seldon::SubMatrix_Base< T, Prop, M, Allocator >::GetN ( const SeldonTranspose & status ) const

inlineinherited

Returns the number of columns of the sub-matrix possibly transposed.

Parameters

status assumed status about the transposition of the sub-matrix.

Returns: The number of columns of the possibly-transposed sub-matrix.

Definition at line 177 of file SubMatrix_BaseInline.cxx.

◆ GetSize()

template<class T >

long Seldon::VirtualMatrix< T >::GetSize

inlineinherited

Returns the number of elements in the matrix.

Returns the number of elements in the matrix, i.e. the number of rows multiplied by the number of columns.

Returns: The number of elements in the matrix.

Definition at line 153 of file Matrix_BaseInline.cxx.

◆ operator()() [1/2]

template<class T , class Prop , class M , class Allocator >

SubMatrix_Base< T, Prop, M, Allocator >::access_type Seldon::SubMatrix_Base< T, Prop, M, Allocator >::operator()	(	int	i,
		int	j
	)

inlineinherited

Access operator.

Returns the value of element (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the sub-matrix.

Definition at line 76 of file SubMatrix_BaseInline.cxx.

◆ operator()() [2/2]

template<class T , class Prop , class M , class Allocator >

SubMatrix_Base< T, Prop, M, Allocator >::const_access_type Seldon::SubMatrix_Base< T, Prop, M, Allocator >::operator()	(	int	i,
		int	j
	)		const

inlineinherited

Access operator.

Returns the value of element (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the sub-matrix.

Definition at line 91 of file SubMatrix_BaseInline.cxx.

◆ Print()

template<class T , class Prop , class M , class Allocator >

void Seldon::SubMatrix_Base< T, Prop, M, Allocator >::Print

inlineinherited

Prints a matrix on screen.

Displays all elements on the standard output, in text format. Each row is displayed on a single line, and the elements of a row are delimited by tabulations.

Definition at line 192 of file SubMatrix_BaseInline.cxx.

◆ Val() [1/2]

template<class T , class Prop , class M , class Allocator >

SubMatrix_Base< T, Prop, M, Allocator >::entry_type & Seldon::SubMatrix_Base< T, Prop, M, Allocator >::Val	(	int	i,
		int	j
	)

inlineinherited

Access operator.

Returns the value of element (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the sub-matrix.

Definition at line 106 of file SubMatrix_BaseInline.cxx.

◆ Val() [2/2]

template<class T , class Prop , class M , class Allocator >

const SubMatrix_Base< T, Prop, M, Allocator >::entry_type & Seldon::SubMatrix_Base< T, Prop, M, Allocator >::Val	(	int	i,
		int	j
	)		const

inlineinherited

Access operator.

Returns the value of element (i, j).

Parameters

[in]	i	row index.
[in]	j	column index.

Returns: Element (i, j) of the sub-matrix.

Definition at line 121 of file SubMatrix_BaseInline.cxx.

The documentation for this class was generated from the following files:

matrix/SubMatrix.hxx
matrix/SubMatrixInline.cxx
