In this page, we detail the different tetrahedral finite elements currently implemented in Montjoie. The reference element is the unit tetrahedron, look at the figure below for the conventions used

If you want to implement a new tetrahedral element, you have to derive the class TetrahedronReference. This class is the base class for all tetrahedral elements implemented in Montjoie. It depends on the type of element (1: scalar finite element, 2: edge elements, 3: facet elements).

// for a new tetrahedral finite element (1 : scalar)
class MyFiniteElement : public TetrahedronReference<1>
{
   public :

   // number of dofs on each edge, triangle, tetrahedron, etc ?
   void ConstructNumberMap(NumberMap& map, int dg) const;

   // main method used to construct the finite element object
   // r : order of approximation for basis functions
   // rgeom : order of approximation for geometry (shape functions)
   // rquad : order of quadrature
   // if rgeom is equal to 0 (and similarly rquad equal to 0)
   // we are considering that rgeom = r, and rquad = r
   // if type_quad is equal to -1, we use the default quadrature
   // formulas (probably Gauss formulas)
   // rsurf_tri, rsurf_quad : orders for boundary integrals
   // type_surf_tri, type_surf_quad : type of integration for triangles and quadrangles
   void ConstructFiniteElement(int r, int rgeom = 0, int rquad = 0, int type_quad = -1,
                               int rsurf_tri = 0, int rsurf_quad = 0, int type_surf_tri = -1,
                               int type_surf_quad = -1, int gauss_z = -1);

   // computation of phi_i(x) for a given point x
   // the values phi_i(x) have to be placed in the array phi
   void ComputeValuesPhiRef(const R3& x, VectReal_wp& phi) const;

   // computation of  \nabla phi_i(x) for a given point x
   void ComputeGradientPhiRef(const R3& x, VectR3& grad_phi) const;

};

TetrahedronGeomReference

The class TetrahedronGeomReference implements shape functions methods for tetrahedron elements. These shape functions are computed as a linear combination of orthogonal polynomials :

where ψ_j form an orthogonal basis of polynomials of degree r. We choose the following basis:

where P_i^{α, β} are Jacobi polynomials orthogonal with respect to weight (1-x)^α(1+x)^β. The coefficients c_{i, j, k} are chosen such that the polynomials are actually orthonormal :

The coefficients a_{i, j} are computed by inverting a Vandermonde's matrix:

Most of the methods of this class come from the parent class ElementGeomReference. Below, we detail the methods and attributes specific to the class TetrahedronGeomReference.

GetNbPointsNodalInside	returns the number of nodal points inside the tetrahedron.
type_interpolation_nodal	choice of nodal points
GetLegendrePolynomial	returns Legendre polynomials stored in the class
GetInvWeightPolynomial	returns the coefficients ci, j, k applied to obtain orthonormal polynomials ψj
GetCoefLegendre	returns the coefficients used to normalize Legendre polynomialsj
GetNumOrtho3D	returns the orthogonal polynomial number k from the tuple (i, j, k)
GetOddJacobiPolynomial	returns the odd Jacobi polynomials
GetEvenJacobiPolynomial	returns the even Jacobi polynomials
GetCoefOddJacobi	returns the coefficients used to normalize odd Jacobi polynomialsj
GetCoefEvenJacobi	returns the coefficients used to normalize even Jacobi polynomialsj
ConstructRegularPoints	computes nodal points regularly spaced
ConstructLobattoPoints	computes nodal points with a small Lebesgue constant
ComputeOrthogonalFunctions	constructs orthogonal functions only
ComputeValuesPhiOrthoRef	Evaluates orthonormal polynomials at a given point
ComputeGradientPhiOrthoRef	Evaluates the gradient of orthonormal polynomials at a given point

TetrahedronReference

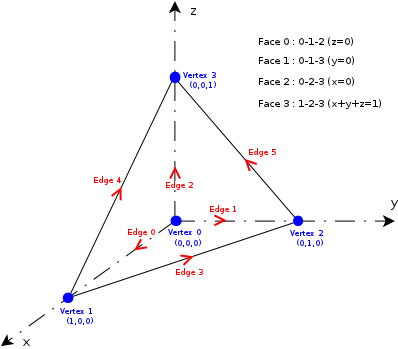

The class TetrahedronReference is the base class for all tetrahedral finite elements. Methods and attributes come from the parent class ElementReference.

TetrahedronClassical

This class implements a scalar finite element with interpolatory basis functions. It can be used to discretize H¹. The finite element space considered consists of polynomials of total degree less or equal to r :

Similarly to TetrahedronGeomReference, the following orthogonal basis is used :

where are Jacobi polynomials on [-1,1] orthogonal with respect to the weight The basis functions are based on interpolation points x_j and computed by inverting the Vandermonde matrix :

The basis functions are then equal to

The interpolation points x_j are chosen as points coming from an electrostatic problem as described by Hestaven (1998). These points include Gauss-Lobatto points along each edge and the same nodal points as for TriangleGeomReference on each triangular face. The used quadrature formulas are symmetric (QUADRATURE_GAUSS) for volume integrals and boundary integrals. The class TetrahedronClassical allows numerical computations over hybrid meshes, the corresponding classes for pyramids, prisms and hexahedra are PyramidClassical, WedgeClassical, HexahedronGauss. The class TetrahedronClassical is the class used for tetrahedra if you have TypeElement = TETRAHEDRON_CLASSICAL or TypeElement = TETRAHEDRON_LOBATTO or TypeElement = HEXAHEDRON_LOBATTO in the datafile.

TetrahedronDgOrtho

This class implements a scalar finite element with orthogonal basis functions. It can be used to discretize L² with discontinuous Galerkin formulations. The finite element space is the same as for TetrahedronClassical (polynomials of degree less or equal to r). The basis functions used for this class are the orthogonal functions

Because of tensorized structure, fast computations are obtained for a large order of approximation. The quadrature rules are obtained with Duffy transformation (QUADRATURE_TENSOR). Boundary integrals are evaluated with classical rules (not tensorized). This class allows numerical computations over hybrid meshes, the corresponding classes for pyramids, prisms and hexahedra are PyramidDgOrtho, WedgeDgOrtho, HexahedronDgGauss. The class TetrahedronClassical is the class used for tetrahedra if you have TypeElement = TETRAHEDRON_DG_ORTHO or TypeElement = TETRAHEDRON_DG_LEGENDRE in the datafile.

TetrahedronHierarchic

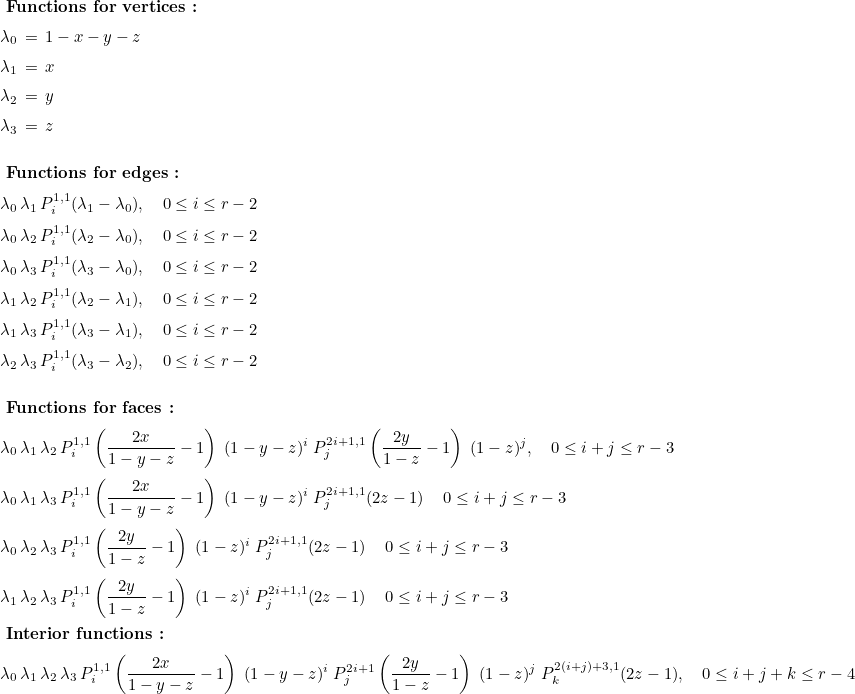

The basis functions for this class are hierarchical, allowing the use of a variable order in a mesh. The basis functions are equal to :

The tensor structure of this basis is exploited to obtain faster computations for large values of r. Tensorized quadrature rules are therefore used (QUADRATURE_TENSOR) for volume integrals whereas symmetric rules are used for boundary integrals. The class TetrahedronHierarchic allows numerical computations over hybrid meshes, the corresponding classes for pyramids, prisms and hexahedra are PyramidHierarchic, WedgeHierarchic, HexahedronHierarchic. The class TetrahedronClassical is the class used for tetrahedra if you have TypeElement = TETRAHEDRON_HIERARCHIC.

TetrahedronHcurlFirstFamily

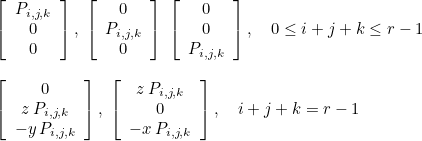

This class implements interpolatory basis functions for edge elements of Nedelec's first family. It can be used to discretize H(curl) space. The finite element space considered here is equal to

where

This space is generated with nearly orthogonal basis functions ψ_i :

where

Each degree of freedom is associated with a position x and a tangent t. The Vandermonde matrix is then equal to

The interpolatory basis functions are then equal to

For each triangular face the nodal points and tangents are chosen to coincide with those of the class TriangleHcurlFirstFamily (e.g. Gauss points along edges). For the degrees of freedom inside the element, nodal points are chosen as interior points of the nodal tetrahedron (TetrahedronClassical) of order r+1. The class TetrahedronHcurlFirstFamily allows numerical computations over hybrid meshes, the corresponding classes for pyramids, prisms and hexahedra are PyramidHcurlFirstFamily, WedgeHcurlFirstFamily, HexahedronHcurlFirstFamily. The class TetrahedronHcurlFirstFamily is the class used for tetrahedra if you have TypeElement = TETRAHEDRON_FIRST_FAMILY or TypeElement = HEXAHEDRON_FIRST_FAMILY.

TetrahedronHcurlOptimalFirstFamily

This finite element class is similar to the class TetrahedronHcurlFirstFamily. The only difference is that nodal points along edges are chosen as interior Gauss-Lobatto points (instead of Gauss points), so that this element is compatible with pyramids, prisms and hexahedra. It allows numerical computations over hybrid meshes, the corresponding classes for pyramids, prisms and hexahedra are PyramidHcurlOptimalFirstFamily, WedgeHcurlOptimalFirstFamily, HexahedronHcurlOptimalFirstFamily. The class TetrahedronHcurlOptimalFirstFamily is the class used for tetrahedra if you have TypeElement = TETRAHEDRON_OPTIMAL_FIRST_FAMILY.

TetrahedronHcurlLobatto

This finite element class implements interpolatory basis functions for tetrahedral edge elements of Nedelec's second family. It can be used to discretize H(curl) space. The finite element space is . Interpolation points are the same as for TetrahedronClassical. Numerical computations cannot be conducted over hybrid meshes, however you can use purely tetrahedral or purely hexahedral meshes, the corresponding class for hexahedra is the class HexahedronHcurlLobatto. It should be noticed that Nedelec's second family produces spurious modes for hexahedral elements.

TetrahedronHcurlOptimalHpFirstFamily

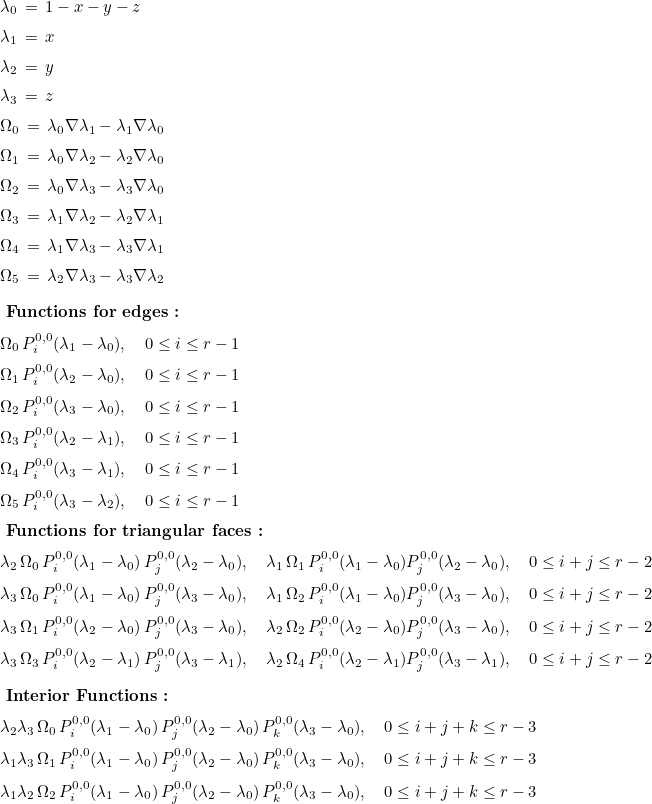

This class implements hierarchical basis functions for edge tetrahedral edge elements of Nedelec's first family. The finite element space is the same as for TetrahedronHcurlFirstFamily. It can be used to discretize H(curl) space. The finite element space is the same as for TetrahedronHcurlFirstFamily. By using hierarchical functions, a variable order can be set for each element of the mesh. The basis functions are equal to :

This class allows numerical computations over hybrid meshes, the corresponding classes for pyramids, prisms and hexahedra are PyramidHcurlHpFirstFamily, WedgeHcurlHpFirstFamily, HexahedronHcurlHpFirstFamily. The class TetrahedronHcurlOptimalHpFirstFamily is the class used for tetrahedra if you have TypeElement = TETRAHEDRON_OPTIMAL_HP_FIRST_FAMILY or TypeElement = TETRAHEDRON_HP_FIRST_FAMILY.

TetrahedronHdivFirstFamily

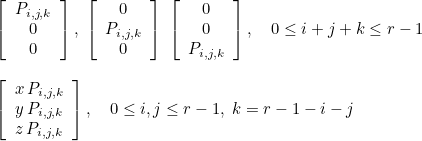

This class implements interpolatory basis functions for facet elements of Nedelec's first family. It can be used to discretize H(div) space. The finite element space considered here is equal to

where

This space is generated with nearly orthogonal basis functions ψ_i :

where

Each degree of freedom is associated with a position x and a tangent t. The Vandermonde matrix is then equal to

The interpolatory basis functions are then equal to

For each triangular face the interpolation points and tangents are chosen to coincide with interior points of the class TriangleClassical of order r+2. For the degrees of freedom inside the element, interpolation points are chosen as interior points of the tetrahedron (TetrahedronClassical) of order r+2. The class TetrahedronHdivFirstFamily allows numerical computations over hybrid meshes, the corresponding classes for pyramids, prisms and hexahedra are PyramidHdivFirstFamily, WedgeHdivFirstFamily, HexahedronHdivFirstFamily. The class TetrahedronHdivFirstFamily is the class used for tetrahedra if you have TypeElement = TETRAHEDRON_FIRST_FAMILY or TypeElement = HEXAHEDRON_FIRST_FAMILY.

TetrahedronHdivOptimalFirstFamily

This finite element class is equivalent to the class TetrahedronHdivFirstFamily. It allows numerical computations over hybrid meshes, the corresponding classes for pyramids, prisms and hexahedra are PyramidHdivOptimalFirstFamily, WedgeHdivOptimalFirstFamily, HexahedronHdivOptimalFirstFamily. The class TetrahedronHdivOptimalFirstFamily is the class used for tetrahedra if you have TypeElement = TETRAHEDRON_OPTIMAL_FIRST_FAMILY.

TetrahedronHdivOptimalHpFirstFamily

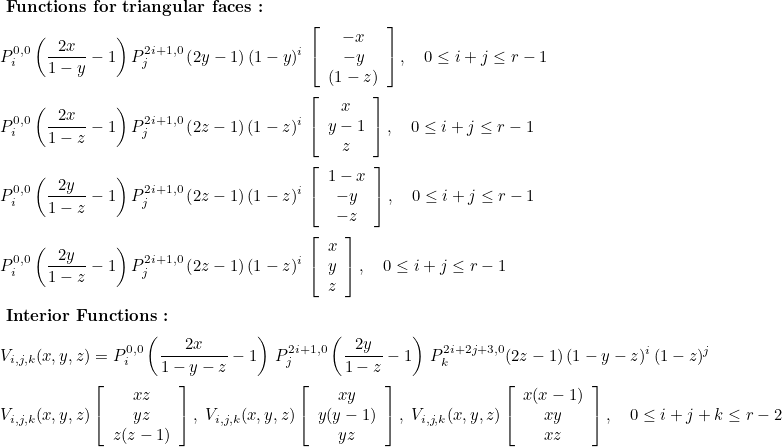

This class implements hierarchical basis functions for tetrahedral facet elements of Nedelec's first family. It can be used to discretize H(div) space. The finite element space is the same as for TetrahedronHdivFirstFamily. By using hierarchical functions, a variable order can be set for each element of the mesh. The basis functions are equal to :

This class allows numerical computations over hybrid meshes, the corresponding classes for pyramids, prisms and hexahedra are PyramidHdivHpFirstFamily, WedgeHdivHpFirstFamily, HexahedronHdivHpFirstFamily. The class TetrahedronHdivOptimalHpFirstFamily is the class used for tetrahedra if you have TypeElement = TETRAHEDRON_OPTIMAL_HP_FIRST_FAMILY or TypeElement = TETRAHEDRON_HP_FIRST_FAMILY.

GetNbPointsNodalInside

This method returns the number of nodal points strictly inside the unit tetrahedron. It should be equal to (r-1)(r-2)(r-3)/6 where r is the polynomial degree.

Example :

int r = 4; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// number of nodal points inside the tetrahedron ?
int nb_nodes_inside = tet.GetNbPointsNodalInside(); // should give 1 here

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReferenceInline.cxx

type_interpolation_nodal

This public attribute stores the family of nodal points to use when ConstructFiniteElement is called. You can choose between the following values:

• LOBATTO_BASIS : the nodal points will correspond to Hesthaven's points based on an analogy with electrostatic's equilibrium
• REGULAR_BASIS: the nodal are regularly spaced. This choice leads to a large Lebesgue constant, it implies a Runge phenomenon if nodal points are used for interpolation

The default value is LOBATTO_BASIS. The last value REGULAR_BASIS should be used cautiously for moderate polynomial degree.

Example :

int r = 4; // polynomial degree
TetrahedronGeomReference tet;
tet.type_interpolation_nodal = tri.REGULAR_BASIS;
tet.ConstructFiniteElement(r);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx

GetLegendrePolynomial

This method returns the Legendre polynomials stored in the class (used for orthogonal polynomials ψ_j). These Legendre polynomials have been constructed with GetJacobiPolynomial. You can call EvaluateJacobiPolynomial to evaluate these polynomials.

Example :

int r = 4; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// Legendre polynomials
const Matrix<Real_wp>& pol_leg = tet.GetLegendrePolynomial();

// use EvaluateJacobiPolynomial to evaluate Pn(2*x-1)
VectReal_wp Pn; Real_wp x = 0.2; // x in [0, 1]
EvaluateJacobiPolynomial(pol_leg, r+1, 2.0*x - 1.0, Pn);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReferenceInline.cxx

GetCoefLegendre

This method returns the coefficient used to normalize Legendre polynomials stored in the class (used for orthogonal polynomials ψ_j). With these coefficients, you have the orthonormality of Legendre polynomials in [0, 1] :

Example :

int r = 4; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// Legendre polynomials
const Matrix<Real_wp>& pol_leg = tet.GetLegendrePolynomial();

// and coefficients of normalization
const VectReal_wp& coef_leg = tet.GetCoefLegendre();

// use EvaluateJacobiPolynomial to evaluate Pn(2*x-1)
VectReal_wp Pn; Real_wp x = 0.2; // x in [0, 1]
EvaluateJacobiPolynomial(pol_leg, r+1, 2.0*x - 1.0, Pn);

// multiplying by coefficient
for (int i = 0; i ≤ r; i++)
  Pn(i) *= coef_leg(i);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReferenceInline.cxx

GetInvWeightPolynomial

This method returns the coefficient used to normalize orthogonal polynomials ψ_j stored in the class. With these coefficients, you have the orthonormality of orthogonal polynomials in the unit tetrahedron :

The coefficients c_n are returned by GetInvWeightPolynomial.

Example :

int r = 4; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// coefficients of normalization
const VectReal_wp& coef_psi = tet.GetInvWeightPolynomial();

// ComputeValuesPhiOrthoRef fills c_m psi_m
R3 pt(0.2, 0.1, 0.3); VectReal_wp psi;
tet.ComputeValuesPhiOrthoRef(pt, psi);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReferenceInline.cxx

GetNumOrtho3D

This method returns the numbering for orthogonal polynomials.

Example :

int r = 4; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// coefficients of normalization
const VectReal_wp& coef_psi = tet.GetInvWeightPolynomial();

// numbers
const Array3D<int>& num = tet.GetNumOrtho3D();

// triple loop
for (int i = 0; i ≤ r; i++)
  for (int j = 0; j < r-i; j++)
    for (int k = 0; k < r-i-j; k++)
      {
        // number for orthogonal polynomial
        int p = num(i, j, k);
      }

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReferenceInline.cxx

GetOddJacobiPolynomial

This method returns the jacobi polynomials P_j^{2i+1, 0} stored in the class.

Example :

int r = 4; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// jacobi polynomials for odd numbers
const Vector<Matrix<Real_wp> >& jac = tet.GetOddJacobiPolynomial();

// coefficients of normalization
const Matrix<Real_wp&>& coef = tet.GetCoefOddJacobi();

// evaluating polynomials P_j^{2i+1, 0} for a given i
int i = 2; Real_wp x = 0.4; VectReal_wp Pj;
EvaluateJacobiPolynomial(jac(i), r+1-i, 2.0*x - 1, Pj);

// multiplication by weights
for (int j = 0; j < Pj.GetM(); j++)
  Pj(j) *= coef(i, j);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReferenceInline.cxx

GetCoefOddJacobi

This method returns the coefficient that normalizes jacobi polynomials P_j^{2i+1, 0} stored in the class :

Example :

int r = 4; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// jacobi polynomials for odd numbers
const Vector<Matrix<Real_wp> >& jac = tet.GetOddJacobiPolynomial();

// coefficients of normalization
const Matrix<Real_wp&>& coef = tet.GetCoefOddJacobi();

// evaluating polynomials P_j^{2i+1, 0} for a given i
int i = 2; Real_wp x = 0.4; VectReal_wp Pj;
EvaluateJacobiPolynomial(jac(i), r+1-i, 2.0*x - 1, Pj);

// multiplication by weights
for (int j = 0; j < Pj.GetM(); j++)
  Pj(j) *= coef(i, j);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReferenceInline.cxx

GetEvenJacobiPolynomial

This method returns the jacobi polynomials P_j^{2i+2, 0} stored in the class.

Example :

int r = 4; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// jacobi polynomials for even numbers
const Vector<Matrix<Real_wp> >& jac = tet.GetEvenJacobiPolynomial();

// coefficients of normalization
const Matrix<Real_wp&>& coef = tet.GetCoefEvenJacobi();

// evaluating polynomials P_j^{2i+2, 0} for a given i
int i = 2; Real_wp x = 0.4; VectReal_wp Pj;
EvaluateJacobiPolynomial(jac(i), r+1-i, 2.0*x - 1, Pj);

// multiplication by weights
for (int j = 0; j < Pj.GetM(); j++)
  Pj(j) *= coef(i, j);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReferenceInline.cxx

GetCoefEvenJacobi

This method returns the coefficient that normalizes jacobi polynomials P_j^{2i+2, 0} stored in the class :

Example :

int r = 4; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// jacobi polynomials for even numbers
const Vector<Matrix<Real_wp> >& jac = tet.GetEvenJacobiPolynomial();

// coefficients of normalization
const Matrix<Real_wp&>& coef = tet.GetCoefEvenJacobi();

// evaluating polynomials P_j^{2i+2, 0} for a given i
int i = 2; Real_wp x = 0.4; VectReal_wp Pj;
EvaluateJacobiPolynomial(jac(i), r+1-i, 2.0*x - 1, Pj);

// multiplication by weights
for (int j = 0; j < Pj.GetM(); j++)
  Pj(j) *= coef(i, j);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReferenceInline.cxx

ConstructRegularPoints

This method computes the nodal points of the tetrahedron with a regular spacing. The nodes numbering is given for the triangle and tetrahedron.

Example :

int r = 3; // polynomial degree
Matrix<int> NumNodes2D(r+1, r+1);
NumNodes2D.Fill(-1);
// filling the node numbers : NumNodes2D(i, j) is the number of the node that will located at x_i, y_j
int num = 0;
for (int i = 0; i ≤ r; i++)
  for (int j = 0; j ≤ r-i; j++)
    NumNodes2D(i, j) = num++;

Array3D<int> NumNodes3D(r+1, r+1, r+1);
NumNodes3D.Fill(-1);
// filling the node numbers : NumNodes3D(i, j, k) is the number of the node that will located at x_i, y_j, z_k
num = 0;
for (int i = 0; i ≤ r; i++)
  for (int j = 0; j ≤ r-i; j++)
    for (int k = 0; k ≤ r-i-j; k++)
      NumNodes3D(i, j, k) = num++;

// then we compute nodal points with the provided numbering
VectReal_wp points1d; VectR2 points2d; VectR3 points3d;
TetrahedronGeomReference::ConstructRegularPoints(r, points1d, points2d, NumNodes2D, points3d, NumNodes3D);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReference.cxx

ConstructLobattoPoints

This method computes the nodal points of the tetrahedron with a small Lebesgue constant. The constructed points are Hesthaven's points (based on an anology with electrostatic's equilibrium). The 1-D nodal points will be equal to Gauss-Lobatto points and 2-D nodal points will coincide with Hesthaven's points of the unit triangle.

Example :

int r = 3; // polynomial degree

// then we compute nodal points for the required order
VectReal_wp points1d; VectR2 points2d; VectR3 points3d;
TetrahedronGeomReference::ConstructLobattoPoints(r, points1d, points2d, points3d);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReference.cxx

ComputeValuesPhiOrthoRef

This method evaluates the orthogonal functions ψ_j (as defined in the section devoted to the class TetrahedronGeomReference).

Example :

int r = 3; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// then we can evaluate orthogonal polynomials on a point of the unit tetrahedron
R3 pt(0.2, 0.4, 0.1); VectReal_wp psi;
tet.ComputeValuesPhiOrthoRef(pt, psi);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReference.cxx

ComputeGradientPhiOrthoRef

This method evaluates the gradient of orthogonal polynomials ψ_j (as defined in the section devoted to the class TetrahedronGeomReference).

Example :

int r = 3; // polynomial degree
TetrahedronGeomReference tet;
tet.ConstructFiniteElement(r);

// then we can evaluate the gradient orthogonal polynomials on a point of the unit tetrahedron
R3 pt(0.2, 0.4, 0.1); VectR3 grad_psi;
tet.ComputeGradientPhiOrthoRef(pt, grad_psi);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReference.cxx

ComputeOrthogonalFunctions

This method constructs the orthogonal functions ψ_j. If you call ConstructFiniteElement, this method is alreay called. If you call only ComputeOrthogonalFunctions, the shape functions will not be available.

Example :

int r = 3;

TetrahedronGeomReference tet;
// constructing orthogonal polynomials
tet.ComputeOrthogonalFunctions(r);

// evaluating orthogonal functions
R3 pt_loc(0.2, 0.4, 0.1); VectReal_wp psi;
tet.ComputeValuesPhiOrthoRef(pt_loc, psi);

Location :

FiniteElement/Tetrahedron/TetrahedronGeomReference.hxx   FiniteElement/Tetrahedron/TetrahedronGeomReference.cxx
