In order to use finite element classes, you can include MontjoieFiniteElement.hxx or Montjoie.hxx. In Montjoie, there are three families of finite elements implemented :

• scalar finite elements : they can be used to approximate H¹ space. The basis functions are scalar. This is the most common type of finite elements in the literature. For triangles/tetrahedra, it corresponds to the polynomial space, whereas for quadrangles/hexahedra, it corresponds to the polynomial space.
• edge elements : they can be used to approximate H(curl) space. The basis functions are vectorial (with three components in 3-D). These elements are also known as Nédélec's elements in the literature.
• facet elements : they can be used to approximate H(div) space. The basis functions are vectorial (with three components in 3-D). These elements are also known as Raviart-Thomas elements in the literature.

In Montjoie, we can use a discontinuous formulation in conjunction with a finite element class. The discontinuity is ensured when the mesh is numbered (see class MeshNumbering, and function SetFormulationDG).

General structure

Finite elements in Montjoie are based on a reference element (usually denoted ). This reference element is for example the unit square [0, 1]² for quadrilaterals. The transformation F_i transforms the reference element to the real element K_i where i is the element number. The basis functions in the real element are constructed from basis functions on the reference element with the relation (for scalar finite elements)

In the page devoted to the transformation Fi, reference elements and transformations Fi are detailed.

A finite element object consists of :

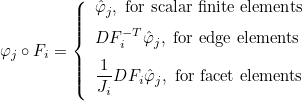

• Geometrical shape functions, which are used for transformation Fi (especially when the element is curved) :

  where A_i are nodal points of the element
• Quadrature formulas (points and weights of integration) for volume and boundary integrals.

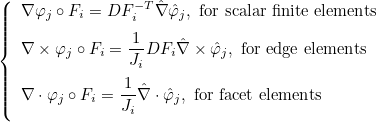

• Basis functions and their derivatives (gradient or curl). The approximate solution is then searched as :


You can associate a different order for each of this feature, i.e. an order for approximation of the geometry, an order for integration, and an order of approximation. Usually, all these orders are equal but it may be interesting to specify different orders.

For finite element classes, we define the following operators

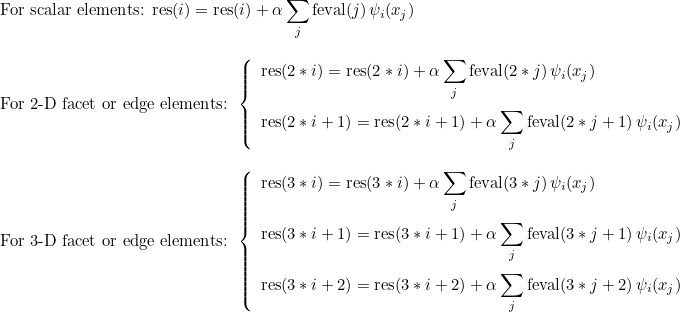

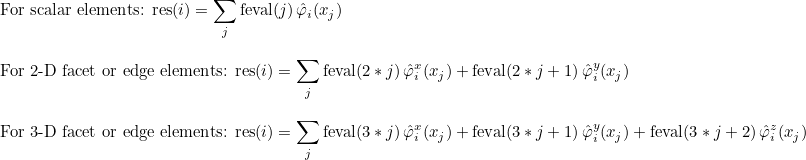

• Operator C_h stores the values of basis functions on quadrature points :

  where are quadrature points on the reference element

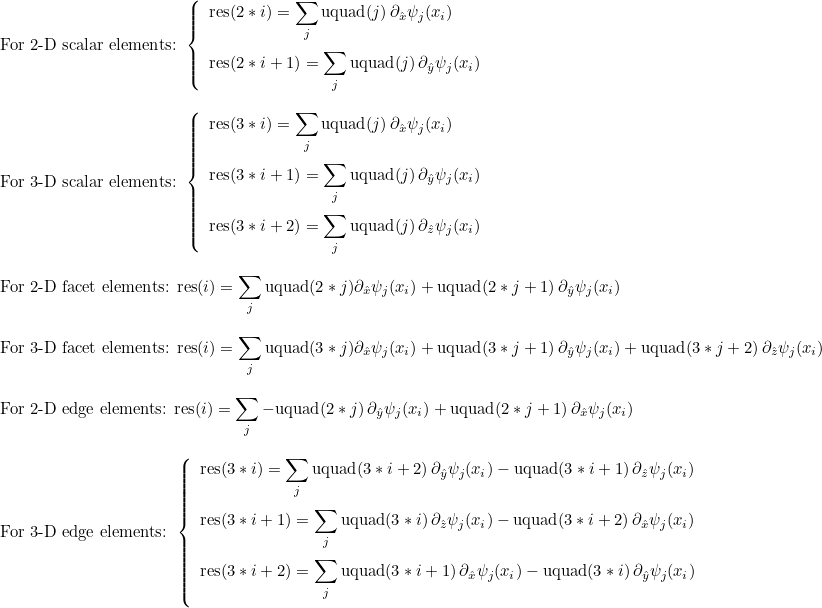

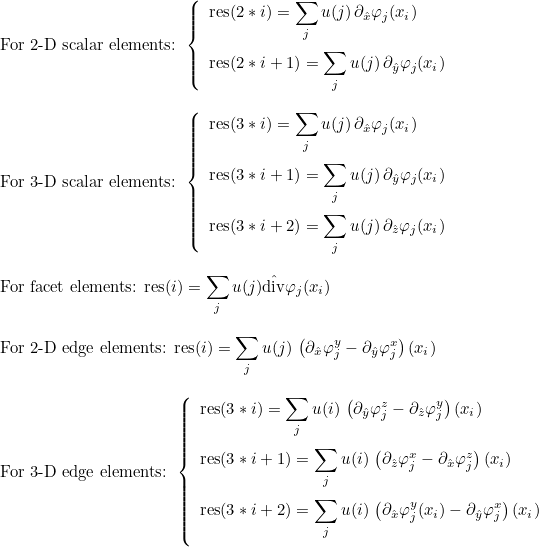

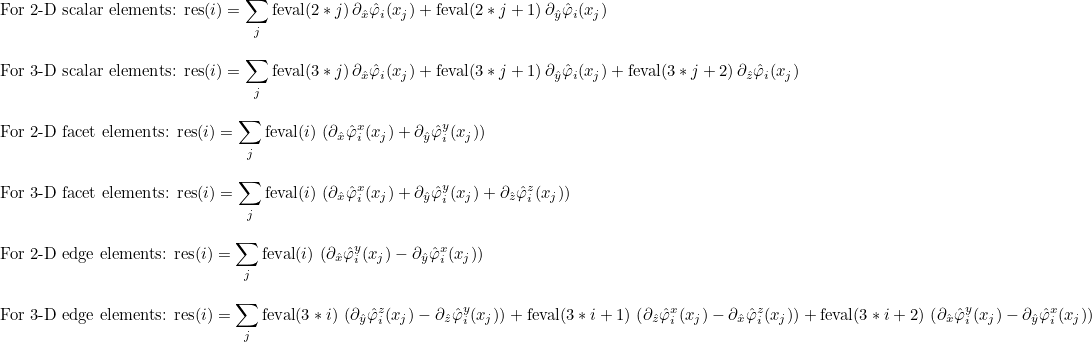

• Operator R_h stores the gradient of basis functions on quadrature points :

• Operator S_h stores the values of basis functions on quadrature points of a face :

  where are quadrature points on the face n (edge in 2-D) of the reference element

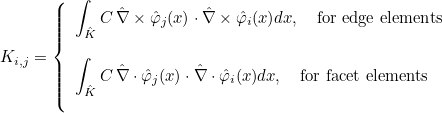

We also define the mass matrix as the following matrix

Basic Use

#include "FiniteElement/MontjoieFiniteElement.hxx"

int main(int argc, char** argv)
{
  InitMontjoie(argc, argv);

  // declaration of a nodal tetrahedron
  TetrahedronClassical Fb;

  // you construct the finite element
  int r = 4;
  Fb.ConstructFiniteElement(r);

  // then you can use any method of this finite element
  int nb_pts_quad = Fb.GetNbPointsQuadratureInside();
  int nb_dof = Fb.GetNbDof();
  Vector<double> feval(nb_pts_quad);

  // integration against basis functions
  // contrib_i = \int exp(-r^2)* varphi_i
  for (int i = 0; i < nb_pts_quad; i++)
  feval(i) = Fb.WeightsND(i)*exp(-DotProd(Fb.PointsND(i), Fb.PointsND(i)));

  Vector<double> contrib(nb_dof);
  Fb.ComputeIntegralRef(feval, contrib);

  // computation of \hat{\varphi}_i(x) for all i :
  Vector<double> phi;
  R3 x(0.4, 0.5, 0.01);
  Fb.ComputeValuesPhiRef(x, phi);

  // and gradient
  VectR3 grad_phi;
  Fb.ComputeGradientPhiRef(x, grad_phi);

  return FinalizeMontjoie();
}

Geometric finite elements

For the definition of shape functions, the classes TriangleGeomReference, QuadrangleGeomReference (in 2-D), TetrahedronReference, PyramidGeomReference, WedgeGeomReference, HexahedronGeomReference have been written. They are used in the Mesh class in order to handle curved elements. Below, we represent the inheritance diagram of these classes:

These classes can be used by including only MontjoieMesh.hxx. We show an example of use of these classes below :

  TriangleGeomReference tri;

  // constructing the shape functions at a given order
  int order = 4;
  tri.ConstructFiniteElement(order);

  // then you can evalue shape functions on a point
  R2 point(0.2, 0.3); VectReal_wp phi;
  tri.ComputeValuesPhiNodalRef(point, phi);

  // and gradients :
  VectR2 grad_phi;
  tri.ComputeGradientPhiNodalRef(point, phi);

  // you can also compute Fi for all the nodal points
  Mesh<Dimension2> mesh;
  mesh.SetGeometryOrder(order); mesh.Read("test.msh");

  int num_elem = 13; VectR2 s;
  mesh.GetVerticesElement(num_elem, s);

  SetPoints<Dimension2> PointsElem;
  tri.FjElemNodal(s, PointsElem, mesh, num_elem);


Intermediary classes such as ElementGeomReference or ElementGeomReference_Base are abstract classes and should not be instantiated. The class ElementGeomReferenceContainer is an interface class to call methods of the leaf class (e.g. TriangleGeomReference, QuadrangleGeomReference) and is used by finite element classes.

Finite element classes

The main classes to consider are TriangleReference, QuadrangleReference (in 2-D) and TetrahedronReference, PyramidReference, WedgeReference and HexahedronReference (in 3-D). These template classes are depending on an integer (named type). If type is equal to 1, we consider that the leaf class will be a scalar finite element (to approximate H¹ space), whereas if it is equal to 2, the leaf class will implement an edge element (to approximate H(curl) space). If the type is equal to 3, the leaf class will implement a facet element (to approximate H(div) space). Leaf classes (such as TriangleClassical, QuadrangleLobatto, TetrahedronClassical, etc) that are used in practice will derive from those classes (i.e. TriangleReference, QuadrangleReference, etc). In the diagrams below, we show the hierarchy of classe in 2-D :

and similarly in 3-D :

Intermediary classes such as ElementReference_Base, ElementReference, FaceReference, VolumeReference or FiniteElementH1 are abstract classes and should not be instantiated.

How to create a new finite element

Scalar finite elements

For the definition of a new finite element, you have to derive the class TriangleReference<1> (if your finite element is adapted to triangular elements) or QuadrangleReference<1> (for quadrilaterals) or TetrahedronReference<1> (for tetrahedra) or PyramidReference<1> (for pyramids) or WedgeReference<1> (for triangular prisms) or HexahedronReference<1> (for hexahedra). For example if you want to write a new tetrahedral finite element, you can write :

// replace TetrahedronReference by PyramidReference, WedgeReference or HexahedronReference
// for a pyramidal, prismatic or hexahedral element
class MyFiniteElement : public TetrahedronReference<1>
{
   public :

   // number of dofs on each edge, triangle, tetrahedron, etc ?
   void ConstructNumberMap(NumberMap& map, int dg) const;

   // main method used to construct the finite element object
   // r : order of approximation for basis functions
   // rgeom : order of approximation for geometry (shape functions)
   // rquad : order of quadrature
   // if rgeom is equal to 0 (and similarly rquad equal to 0)
   // we are considering that rgeom = r, and rquad = r
   // if type_quad is equal to -1, we use the default quadrature
   // formulas (probably Gauss formulas)
   // rsurf_tri, rsurf_quad : orders for boundary integrals
   // type_surf_tri, type_surf_quad : type of integration for triangles and quadrangles
   void ConstructFiniteElement(int r, int rgeom = 0, int rquad = 0, int type_quad = -1,
                               int rsurf_tri = 0, int rsurf_quad = 0, int type_surf_tri = -1,
                               int type_surf_quad = -1, int gauss_z = -1);

   // computation of phi_i(x) for a given point x
   // the values phi_i(x) have to be placed in the array phi
   void ComputeValuesPhiRef(const R3& x, VectReal_wp& phi) const;

   // computation of  \nabla phi_i(x) for a given point x
   void ComputeGradientPhiRef(const R3& x, VectR3& grad_phi) const;

};

// for 2-D finite elements : TriangleReference or QuadrangleReference
class MyFiniteElement2D : public TriangleReference<1>
{
   public :

    void ConstructFiniteElement(int r, int rgeom = 0, int rquad = 0, int type_quad = -1,
                                int rsurf = 0, int type_surf = -1);

    void ComputeValuesPhiRef(const R2& x, VectReal_wp& phi) const;
    void ComputeGradientPhiRef(const R2& x, VectR2& grad_phi) const;
};

Once you defined your finite element, you may want to link it with the class EllipticProblem in order to use your new finite element to solve a standard equation (such as Helmholtz equation). This procedure is detailed in the page describing the class VarFiniteElement.

Edge finite elements

For the definition of a new edge finite element, the minimal class to write is close to the scalar case :

// replace TetrahedronReference by PyramidReference, WedgeReference or HexahedronReference
// for a pyramidal, prismatic or hexahedral element
class MyFiniteElement : public TetrahedronReference<2>
{
  public :
   // main method used to construct the finite element object
   // r : order of approximation for basis functions
   // rgeom : order of approximation for geometry (shape functions)
   // rquad : order of quadrature
   // if rgeom is equal to 0 (and similarly rquad equal to 0)
   // we are considering that rgeom = r, and rquad = r
   // if type_quad is equal to -1, we use the default quadrature
   // formulas (probably Gauss formulas)
   void ConstructFiniteElement(int r, int rgeom = 0, int rquad = 0, int type_quad = -1,
                               int rsurf_tri = 0, int rsurf_quad = 0, int type_surf_tri = -1,
                               int type_surf_quad = -1, int gauss_z = -1);

   // computation of phi_i(x) for a given point x
   // the values phi_i(x) have to be placed in the array phi
   void ComputeValuesPhiRef(const R3& x, VectR3& phi) const;

   // computation of  curl phi_i(x) for a given point x
   void ComputeCurlPhiRef(const R3& x, VectR3& curl_phi) const;

};

// for 2-D finite elements : TriangleReference or QuadrangleReference
class MyFiniteElement2D : public TriangleReference<2>
{
   public :

    void ConstructFiniteElement(int r, int rgeom = 0, int rquad = 0, int type_quad = -1,
                                int rsurf = 0, int type_surf = -1);

    void ComputeValuesPhiRef(const R2& x, VectR2& phi) const;
    void ComputeGradientPhiRef(const R2& x, VectReal_wp& curl_phi) const;
};

If you want to link your new class with the class EllipticProblem in order to use your new finite element to solve a standard equation (such as Maxwell's equation), take a look at the class VarFiniteElement.

Facet finite elements

For the definition of a new facet finite element, the minimal class to write is close to the scalar case :

// replace TetrahedronReference by PyramidReference, WedgeReference or HexahedronReference
// for a pyramidal, prismatic or hexahedral element
class MyFiniteElement : public TetrahedronReference<3>
{
  public :
   // main method used to construct the finite element object
   // r : order of approximation for basis functions
   // rgeom : order of approximation for geometry (shape functions)
   // rquad : order of quadrature
   // if rgeom is equal to 0 (and similarly rquad equal to 0)
   // we are considering that rgeom = r, and rquad = r
   // if type_quad is equal to -1, we use the default quadrature
   // formulas (probably Gauss formulas)
   void ConstructFiniteElement(int r, int rgeom = 0, int rquad = 0, int type_quad = -1,
                               int rsurf_tri = 0, int rsurf_quad = 0, int type_surf_tri = -1,
                               int type_surf_quad = -1, int gauss_z = -1);

   // computation of phi_i(x) for a given point x
   // the values phi_i(x) have to be placed in the array phi
   void ComputeValuesPhiRef(const R3& x, VectR3& phi) const;

   // computation of  div phi_i(x) for a given point x
   void ComputeCurlPhiRef(const R3& x, VectReal_wp& div_phi) const;

};

// for 2-D finite elements : TriangleReference or QuadrangleReference
class MyFiniteElement2D : public TriangleReference<3>
{
   public :

    void ConstructFiniteElement(int r, int rgeom = 0, int rquad = 0, int type_quad = -1,
                                int rsurf = 0, int type_surf = -1);

    void ComputeValuesPhiRef(const R2& x, VectR2& phi) const;
    void ComputeGradientPhiRef(const R2& x, VectReal_wp& curl_phi) const;
};

If you want to link your new class with the class EllipticProblem in order to use your new finite element to solve a standard equation (such as Helmholtz equation), take a look at the class VarFiniteElement.

Methods of ElementGeomReference_Base

The class ElementGeomReference_Base is the base class for geometric finite elements (that define shape functions used for curved elements).

GetGeometryOrder	returns the order of shape functions
NormaleLoc	returns the outward normale to a face of the reference element
PointsNodal1D	returns nodal points on the unit interval
PointsNodalND	returns coordinates of a nodal point
WeightsNodalND	returns weight of a nodal point
PointsDof1D	returns dof points on the unit interval
Points1D	returns quadrature points on the unit interval
Weights1D	returns quadrature weights on the unit interval
GetHybridType	returns the hybrid type of the element
GetNbVertices	returns the number of vertices of the element
GetNbEdges	returns the number of edges of the element
GetNbBoundaries	returns the number of faces of the element
SetAxisymmetricGeometry	informs that the geometry is the section of an axisymmetric domain
GetSurfaceFiniteElement	returns the finite element for a face of the element
SetMesh	initialization of the finite element with a mesh
GetNormale	returns the outward normale on the real element from the inverse of the jacobian matrix
FjCurvePhi	computes Fi(x) and fills shape functions
DFjCurvePhi	computes DFi(x) and fills shape functions
GetMemorySize	returns the size used by the object in bytes
GetCenterReferenceElement	returns the center of the reference element
ConstructFiniteElement	constructs the finite element at a given order
GetNewNodalInterpolation	returns a new projector class
Fj	computes the image of a given point by the transformation Fi
FjLinear	computes the image of a given point by the transformation Fi for straight elements
DFj	computes the jacobian matrix DFi for a given point
DFjLinear	computes the jacobian matrix DFi for a given point for straight elements
GetMinimalSize	returns the minimal length of edges of the element
OutsideReferenceElement	returns true if the given point is outside the reference element
GetDistanceToBoundary	returns the distance of a given point to the boundary of the reference element (negative if the point is outside)
ProjectPointOnBoundary	projects points on the boundary of the reference element
ComputeCoefJacobian	computes coefficients appearing in the expression of the jacobian
FjElem	Computes images of dof, nodal and quadrature points by the transformation Fi
FjElemNodal	Computes images of nodal points by the transformation Fi
FjElemQuadrature	Computes images of quadrature points by the transformation Fi
FjElemDof	Computes images of dof points by the transformation Fi
DFjElem	Computes jacobian matrices DFi for dof, nodal and quadrature points
DFjElemNodal	Computes jacobian matrices DFi for nodal points
DFjElemQuadrature	Computes jacobian matrices DFi for quadrature points
DFjElemDof	Computes jacobian matrices DFi for dof points
ComputeValuesNodalPhi1D	computes values of 1-D shape functions on a given point
ComputeValuesPhiNodalRef	computes nodal shape functions on the reference element for a given point
ComputeGradientPhiNodalRef	computes gradient of nodal shape functions on the reference element for a given point
ComputeCoefficientTransformation	computes coefficients needed to evaluate transformation Fi quickly

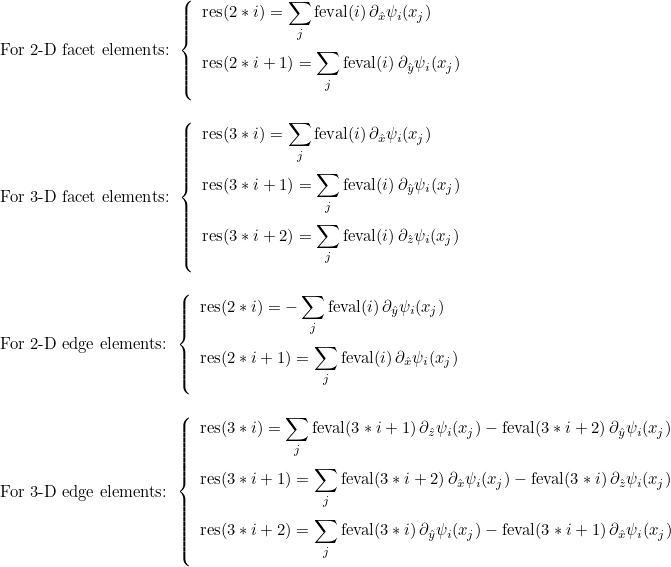

ComputeNodalGradientRef	computes gradient on nodal points of a function from its values on nodal points
ComputeNodalGradient	computes gradient on nodal points of a function from its values on nodal points

Methods of ElementGeomReferenceContainer_Base

The class ElementGeomReferenceContainer_Base is an interface class to call methods of the geometric finite element directly from any finite element class. The methods below can be called by any finite element class (type derived from ElementReference).

QuadratureEqualNodal	returns true if quadrature points coincide with nodal points
DofEqualNodal	returns true if dof points coincide with nodal points
DofEqualQuadrature	returns true if dof points coincide with quadrature points
GetGeometryOrder	returns the order of shape functions
SetGeometryOrder	sets the order of shape functions
GetGeometricElement	gives access to the geometric element
NormaleLoc	returns the outward normale to a face of the reference element
PointsNodal1D	returns nodal points on the unit interval
PointsDof1D	returns dof points on the unit interval
Points1D	returns quadrature points on the unit interval
Weights1D	returns quadrature weights on the unit interval
GetHybridType	returns the hybrid type of the element
GetNbVertices	returns the number of vertices of the element
GetNbEdges	returns the number of edges of the element
GetNbBoundaries	returns the number of faces of the element
GetNewNodalInterpolation	returns a new projector class
SetMesh	initialization of the finite element with a mesh
Fj	computes the image of a given point by the transformation Fi
FjLinear	computes the image of a given point by the transformation Fi for straight elements
DFj	computes the jacobian matrix DFi for a given point
DFjLinear	computes the jacobian matrix DFi for a given point for straight elements
GetMinimalSize	returns the minimal length of edges of the element
OutsideReferenceElement	returns true if the given point is outside the reference element
GetDistanceToBoundary	returns the distance of a given point to the boundary of the reference element (negative if the point is outside)
ProjectPointOnBoundary	projects points on the boundary of the reference element
ComputeCoefJacobian	computes coefficients appearing in the expression of the jacobian
FjElem	Computes images of dof, nodal and quadrature points by the transformation Fi
FjElemNodal	Computes images of nodal points by the transformation Fi
FjElemQuadrature	Computes images of quadrature points by the transformation Fi
FjElemDof	Computes images of dof points by the transformation Fi
DFjElem	Computes jacobian matrices DFi for dof, nodal and quadrature points
DFjElemNodal	Computes jacobian matrices DFi for nodal points
DFjElemQuadrature	Computes jacobian matrices DFi for quadrature points
DFjElemDof	Computes jacobian matrices DFi for dof points
ComputeValuesNodalPhi1D	computes values of 1-D shape functions on a given point
ComputeValuesPhiNodalRef	computes nodal shape functions on the reference element for a given point
ComputeGradientPhiNodalRef	computes gradient of nodal shape functions on the reference element for a given point
ComputeNodalGradientRef	computes gradient on nodal points of a function from its values on nodal points
ComputeNodalGradient	computes gradient on nodal points of a function from its values on nodal points

Methods of ElementGeomReferenceContainer (inherited from ElementGeomReferenceContainer_Base)

The class ElementGeomReferenceContainer is an interface class to call methods of the geometric finite element directly from any finite element class. The methods below can be called by any finite element class (type derived from ElementReference).

PointsQuadInsideND	returns the quadrature points associated with volume integrals
GetNbPointsNodalElt	returns the number of nodal points in the element
GetNbNodalBoundary	returns the number of nodal points on a face of the element
GetNumNodes2D/GetNumNodes3D	returns the number of a node from its position (i, j, k) on the reference element
GetCoordinateNodes2D/GetCoordinateNodes3D	returns the position (i, j, k) of a node on the reference element
PointsNodalBoundary	returns coordinates of a nodal point of a face
PointsNodalND	returns coordinates of a nodal point
GetNodalNumber	returns the number of a node from its local number on a face of the reference element
GetNodalShapeFunctions1D	returns the object Globatto defining the shape functions for the unit interval
PointsND	returns coordinates of a quadrature point
WeightsND	returns the weight associated with a quadrature point
PointsQuadND	returns inside quadrature points + boundary quadrature points
PointsDofBoundary	returns dof points of a face
PointsQuadratureBoundary	returns a quadrature point of a face
WeightsQuadratureBoundary	returns a quadrature weight of a face
GetNbPointsDof	returns the number of dof points on the element
PointsDofND	returns coordinates of a dof point
GetNbPointsQuadrature	returns the number of quadrature points in the element
GetNbQuadBoundary	returns the number of quadrature points on a face of the element
GetLocalCoordOnBoundary	returns coordinates of a point on the reference element from its local coordinates on the face

Methods of ElementReference_Base

The class ElementReference_Base is the base class for finite element classes. This class regroups methods that does not depend on the dimension. The methods below can be called by any finite element class (type derived from ElementReference).

LumpedMassMatrix	returns true if the mass matrix is lumped
MassLumpingOrthogonalElement	returns true if the mass matrix is lumped for an orthogonal element (e.g. parallelepiped)
DiagonalMassMatrix	returns true if the mass matrix is diagonal
DiscontinuousElement	returns true if the finite element can be used only with a discontinuous Galerkin formulation
UsePiolaTransform	returns true if the Piola transform is used (for vectorial elements)
SetPiolaTransform	enables/disables the use of Piola transform
OptimizedComputationMassMatrix	returns true if there is a method implementing an optimized computation of the mass matrix
OptimizedComputationElementaryMatrix	returns true if there is a method implementing an optimized computation of the elementary matrix
SparseMassMatrix	returns true if the mass matrix is sparse
LinearSparseMassMatrix	returns true if the mass matrix for straight elements is sparse
UseQuadraturePointsForSh	returns true if the product with matrix Sh is using the value of u on quadrature points
UseQuadraturePointsForRh	returns true if the product with matrix Rh is using the value of u on quadrature points
UseQuadratureFreeSh	returns true if matrix Sh is evaluated without quadrature
GetMaximalOrderRestriction	returns the maximal order used to store the restricttion matrix
GetOrder	returns the order of basis functions
GetQuadratureOrder	returns the order of quadrature formulas
GetNbDof	returns the number of degrees of freedom
GetNbPointsQuadratureInside	returns the number of quadrature points used for volume integrals
GetNbPointsQuadBoundaries	returns the number of quadrature points used for surface integrals
GetNbPointsUsedForSh	returns the number of points used for evaluation of Sh
GetNbDofBoundaries	returns the number of dofs not associated with the interior
GetNbPointsDofInside	returns the number of dof points inside the element
GetNbPointsDofSurface	returns the number of dof points on a boundary of the element
GetPointDofNumber	returns the number of a dof point on a boundary of the element
GetQuadNumber	returns the number of a quadrature point from its local number on a face of the reference element
GetQuadNumbersBoundary	returns the numbers of quadrature points from local numbers on a face of the reference element
GetOffsetSh	returns offset for quadrature points on a face of the element
SetQuadNumbersBoundary	sets the numbers of quadrature points from local numbers on a face of the reference element
SetDofNumbersBoundary	sets the numbers of dof points from local numbers on a face of the reference element
GetTypeIntegrationEdge	returns the type of quadrature formula used for the unit interval
GetTypeIntegrationTriangle	returns the type of quadrature formula used for the unit triangle
GetTypeIntegrationQuadrangle	returns the type of quadrature formula used for the unit square
IsTangentialDof	returns true if the i-th dof is associated with a boundary of the element
WeightsND	returns the weight associated with a quadrature point
WeightsDofND	returns the weight associated with a dof point
GetFluxWeight	returns the half-weights associated with a boundary of the element
ComputeGaussIntegralSurfaceRef	computes integral over a boundary of the element of a function against basis functions with Gauss formulas
ApplyRhQuadratureTranspose	computation of the gradient (or curl) of the solution on quadrature points from values of the solution on quadrature points
ApplyRhQuadrature	transpose operation of ApplyRhQuadratureTranspose
ApplyRhBoundaryTranspose	computation of the gradient of the solution on quadrature points of the boundary
ApplyRhBoundary	transpose operation of ApplyRhBoundaryTranspose
ApplyShTranspose	computation of the value of the solution on quadrature points of a given face
ApplySh	transpose operation of ApplyShTranspose
ApplyShQuadratureTranspose	computation of the values of the solution on quadrature points of a given face from values of the solution on quadrature points
ApplyShQuadrature	transpose operation of ApplyShQuadratureTranspose
ApplyNablaShTranspose	computation of the gradient of the solution on quadrature points of a face
ApplyNablaSh	transpose operation of ApplyNablaShTranspose
ApplyNablaShQuadratureTranspose	computation of the gradient of the solution on quadrature points of a face from values of the solution on quadrature points
ApplyNablaShQuadrature	transpose operation of ApplyNablaShQuadratureTranspose
GetMemorySize	returns the size used by the object in bytes
SolveMassMatrix	overwrites x by solution of M y = x, where M is the mass matrix on reference element
SolveCholesky	overwrites x by solution of L y = x or LT y = x, where M = L LT is the mass matrix on reference element
MltMassMatrix	computes matrix-vector product y = M x, where M is the mass matrix on reference element
ComputeMassMatrix	computes the mass matrix for straight elements
IntegrateMassMatrix	computes the mass matrix for curved elements
PickNearDofs	retrieves dofs which are close to a given dof
ConstructNumberMap	completes numbering scheme
ApplyChTranspose	computation of the value of the solution on quadrature points
ApplyCh	transpose operation of ApplyChTranspose
ComputeProjectionDofRef	computes components of the solution u from values on points (usually related to degrees of freedom)
ComputeProjectionSurfaceDofRef	computes surface components of the solution u from values on points

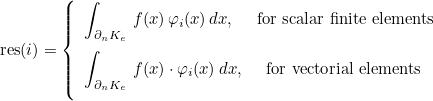

ComputeIntegralRef	computes integral of a function against basis functions
ComputeIntegralSurfaceRef	computes integral over a boundary of the element of a function against basis functions

Methods of ElementReference (inherited from ElementReference_Base, FiniteElementH1 and ElementGeomReferenceContainer)

In the table below, we list the methods of class ElementReference. This class is the base class for finite element and depends on the dimension and the type of finite element. For sake of simplicity, we have adjoined the methods from intermediary classes (ElementReference_Dim, ElementReferenceType and FaceReference/VolumeReference).

GetTriangularSurfaceFiniteElement	returns the finite element class for a triangular face
GetQuadrangularSurfaceFiniteElement	returns the finite element class for a quadrilateral face

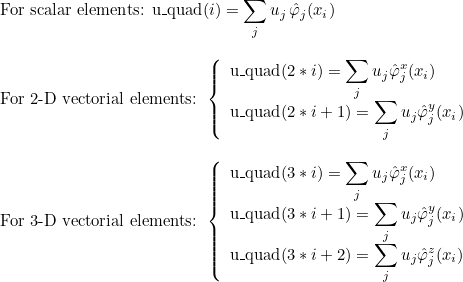

GetValuePhiOnQuadraturePoint	computes values of basis functions on a quadrature point
GetGradientPhiOnQuadraturePoint	computes gradient of basis functions on a quadrature point
GetCurlPhiOnQuadraturePoint	computes curl of basis functions on a quadrature point
GetDivPhiOnQuadraturePoint	computes divergence of basis functions on a quadrature point
GetValueSinglePhiQuadrature	computes values of a single basis function on all quadrature points
GetGradientSinglePhiQuadrature	computes values and gradients of a single basis function on all quadrature points
ComputeValuesPhiRef	computes basis functions on the reference element for a given point
ComputeGradientPhiRef	computes gradient of basis functions on the reference element for a given point
ComputeCurlPhiRef	computes curl of basis functions on the reference element for a given point
ComputeDivPhiRef	computes divergence of basis functions on the reference element for a given point
SetVariableOrder	initialization of projection on elements of different orders
ComputeValuesPhiQuadratureRef	computes basis functions associated with quadrature points on the reference element for a given point
FjSurfaceElem	Computes images of quadrature points of a face by the transformation Fi
DFjSurfaceElem	Computes jacobian matrices, normales and surface elements for quadrature points of a face
FjSurfaceElemDof	Computes images of dof points of a face by the transformation Fi
DFjSurfaceElemDof	Computes jacobian matrices, normales and surface elements for dof points of a face
GetLocalNumber	returns the number of a dof from its local number on a face of the reference element
GetNbDofBoundary	returns the number of dofs associated with a face of the element
PointsQuadInsideND	returns the quadrature points associated with volume integrals
GetSurfaceFiniteElement	returns the finite element for a face of the element
ProjectQuadratureToDofRef	projects a field on finite element basis from its values on quadrature points
ComputeLocalProlongationLowOrder	computes a local prolongation operator by considering a subdivided first-order mesh

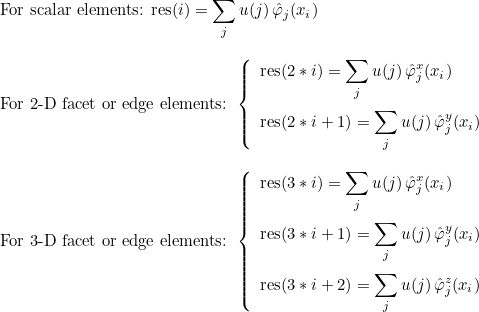

ComputeNodalValuesRef	computes values on nodal points of the solution
ComputeProjectionPointsSurf	computes the projection from given points to another points (for a surface of the element)
ConstructFiniteElement	constructs the finite element class
ComputeVariableInterpolation	provides a list of orders for the finite element to compute interpolation
ComputeTriangularInterpolationProjectorOrder	computation of projection for triangular faces on elements of different orders
ComputeQuadrangularInterpolationProjectorOrder	computation of projection for quadrilateral faces on elements of different orders

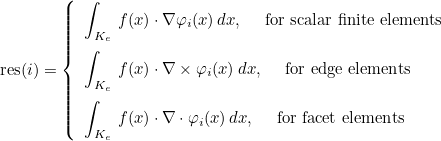

ComputeIntegralGradientRef	computes integral of a function against gradient of basis functions
ComputeIntegralCurlRef	computes integral of a function against curl of basis functions
ComputeIntegralDivRef	computes integral of a function against divergence of basis functions

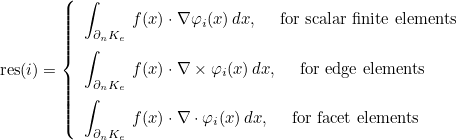

ComputeIntegralSurfaceGradientRef	computes integral over a boundary of the element of a function against gradient of basis functions
ComputeIntegralSurfaceCurlRef	computes integral over a boundary of the element of a function against curl of basis functions
ComputeIntegralSurfaceDivRef	computes integral over a boundary of the element of a function against divergence of basis functions
ComputeValueBoundaryRef	computes values of a solution on nodal points of a boundary, knowing only components of the solution on degrees of freedom
ComputeGradientBoundaryRef	computes gradient of a solution on nodal points of a boundary, knowing only components of the solution on degrees of freedom
ComputeCurlBoundaryRef	computes curl of a solution on nodal points of a boundary, knowing only components of the solution on degrees of freedom
ComputeDivBoundaryRef	computes divergence of a solution on nodal points of a boundary, knowing only components of the solution on degrees of freedom
ApplyRhTranspose	computation of the gradient (or curl) of the solution on quadrature points
ApplyRh	transpose operation of ApplyRhTranspose
ApplyRhSplit	splits the results of ApplyRh in several vectors
ApplyRhQuadratureSplit	splits the results of ApplyRhQuadrature in several vectors
ApplyConstantRh	matrix vector product y = R x, where R = ∫ ∇ φj φi
ApplyConstantRhTranspose	matrix vector product y = RT x, where R = ∫ ∇ φj φi
ApplyConstantRhSplit	matrix vector product y = R x, the result is split into several vectors
AddConstantMassMatrix	adds the mass matrix to a given matrix
AddVariableMassMatrix	adds the mass matrix with a variable weight function to a given matrix
AddConstantElemMatrix	adds an elementary matrix (with uniform weight) matrix to a given matrix
AddVariableElemMatrix	adds an elementary matrix with variable coefficients to a given matrix
AddConstantStiffnessMatrix	adds the stiffness matrix to a given matrix
AddVariableStiffnessMatrix	adds the stiffness matrix with a variable weight function to a given matrix
FindH1RotationTri	computes new dof numbers after a rotation of a triangular face (scalar elements)
FindHcurlRotationTri	computes new dof numbers after a rotation of a triangular face (edge elements)
FindHcurlRotationQuad	computes new dof numbers after a rotation of a quadrangular face (edge elements)
FindHdivRotationTri	computes new dof numbers after a rotation of a triangular face (facet elements)
FindHdivRotationQuad	computes new dof numbers after a rotation of a quadrangular face (facet elements)

Methods of ElementGeomReference (inherited from ElementGeomReference_Base)

The class ElementGeomReference is the base class for geometric finite elements (such as TriangleGeomReference, QuadrangleGeomReference).

PointsQuadInsideND	returns the quadrature points associated with volume integrals
GetNbPointsNodalElt	returns the number of nodal points in the element
GetNbNodalBoundary	returns the number of nodal points on a face of the element
GetNumNodes2D/GetNumNodes3D	returns the number of a node from its position (i, j, k) on the reference element
GetCoordinateNodes2D/GetCoordinateNodes3D	returns the position (i, j, k) of a node on the reference element
PointsNodalBoundary	returns coordinates of a nodal point of a face
GetNodalNumber	returns the number of a node from its local number on a face of the reference element
PointsND	returns coordinates of a quadrature point
PointsQuadND	returns inside quadrature points + boundary quadrature points
WeightsND	returns weight of a quadrature point
PointsDofBoundary	returns dof points of a face
PointsQuadratureBoundary	returns a quadrature point of a face
WeightsQuadratureBoundary	returns a quadrature weight of a face
GetNbPointsDof	returns the number of dof points on the element
PointsDofND	returns coordinates of a dof point
GetNbPointsQuadrature	returns the number of quadrature points in the element
GetNbQuadBoundary	returns the number of quadrature points on a face of the element
GetLocalCoordOnBoundary	returns coordinates of a point on the reference element from its local coordinates on the face
GetCurvatureNodal	computes curvatures for 2-D elements
GetBoundingBox	computes a polyhedron bounding the element
IsAffineTransformation	returns true if the transformation Fi is affine
IsLocalFaceQuadrilateral	returns true if a face of the reference element is a quadrilateral
TangenteLocX/TangenteLocY	returns tangent vectors of a face of the reference element
GetTangentialVector	returns a 3-D tangential vector of a face from its components on the 2-D square/triangle
TransposeTangentialVector	returns the 2-D vector (on the square/triangle) from the 3-D tangential vector of a face

Methods for the classes FiniteElementH1, FiniteElementHcurl or FiniteElementHdiv

These classes link the computations on the reference element with computations on the real element. Methods listed previously (in ElementReference or ElementReference_Base) apply to the reference element (except ComputeNodalGradient), their names end often with Ref. The methods listed below apply to the real element. They call methods of the reference element, and apply the Piola transform to obtain the result on the real element.

ComputeValuesPhi	computes values of basis functions on a given point
ComputeValuesGradientPhi	computes gradient (or curl) of basis functions on a given point
GetCurlFromGradient	computes the curl from gradient for edge elements
ComputeValuesPhiBoundary	computes the values of basis functions on quadrature points of the face of an element
ComputeValuesGradientPhiBoundary	computes the gradient of basis functions on quadrature points of the face of an element
ComputeNodalValues	computes values of solution on nodal points from its components on degrees of freedom
ComputeQuadratureValues	computes values of solution on quadrature points from its components on degrees of freedom
ComputeProjectionDof	computes components of a function on the basis functions
ComputeProjectionSurfaceDof	computes components of a function on the basis functions (only on a face of the element)
ComputeIntegral	computes the integral of a function against basis functions
ComputeIntegralGradient	computes the integral of a function against gradient (or curl) of basis functions
ComputeGaussIntegralSurface	computes the surface integral of a function against basis functions with Gauss formulas
ComputeIntegralSurface	computes the surface integral of a function against basis functions
ComputeIntegralSurfaceGradient	computes the surface integral of a function against gradient (or curl) of basis functions
ComputeValueBoundary	computes the values of the solution on nodal points of a face from its components on degrees of freedom
ComputeGradientBoundary	computes the gradient (or curl) of the solution on nodal points of a face from its components on degrees of freedom
ComputeValueNodalBoundary	extracts values of the solution on nodal points of a face from values on all the nodal points
ComputeLocalProlongation	computes prolongation operator between low order and high order finite elements
ApplyRotationCyclic	applies rotation to vector-valued solution for cyclic domain (only for edge elements)
ApplyInverseRotationCyclic	applies inverse rotation to vector-valued solution for cyclic domain (only for edge elements)

GetGeometryOrder

This method returns the order of approximation r used for the geometric finite element.

Example :

TriangleGeomReference tri;
int order = 4;
tri.ConstructFiniteElement(order);

// should give r = 4
int r = tri.GetGeometryOrder();

Related topics :

ConstructFiniteElement

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

NormaleLoc

This method returns the outward normale for the face num_loc of the reference element. For example, for the unit cube, the outward normale is (-1, 0, 0) if num_loc is equal to 0.

Example :

TriangleGeomReference tri;
int order = 4;
tri.ConstructFiniteElement(order);

// outward normale for an edge of the triangle ?
R2 normale = tri.NormaleLoc(1);

// 3-D case :
PyramidGeomReference pyr;
pyr.ConstructFiniteElement(order);

R3 n = pyr.NormaleLoc(2);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

PointsNodal1D

This method returns the 1-D nodal points on the unit interval [0, 1] used by the finite element. In the first syntax, you can retrieve a single nodal point. Most of the times, these nodal points should coincide with Gauss-Lobatto points.

Example :

TriangleGeomReference tri;
int order = 4;
tri.ConstructFiniteElement(order);

// a single nodal point
int i = 2;
Real_wp x = tri.PointsNodal1D(i);

// or all 1-D nodal points
const VectReal_wp& xvec = tri.PointsNodal1D();

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

PointsNodalND

This method returns the nodal points on the reference element used by the finite element. In the first syntax, you can retrieve a single nodal point.

Example :

TriangleGeomReference tri;
int order = 4;
tri.ConstructFiniteElement(order);

// a single nodal point of the unit triangle
int i = 5;
R2 x = tri.PointsNodalND(i);

// or all nodal points
const VectR2& xvec = tri.PointsNodalND();

// for 3-D elements :
PyramidGeomReference pyr;
pyr.ConstructFiniteElement(order);

const VectR3& pts = pyr.PointsNodalND();

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

WeightsNodalND

This method returns the weight associated with nodal points of the reference element. In the first syntax, you can retrieve a single weight. This method is relevant only for quadrilaterals and hexahedra for which nodal points coincide with quadrature points.

Example :

QuadrangleGeomReference quad;
int order = 4;
quad.ConstructFiniteElement(order);

// a single nodal point of the unit square
int i = 5;
R2 x = quad.PointsNodalND(i);
Real_wp w = quad.WeightsNodalND(i); // and weight

// or all nodal points
const VectR2& xvec = quad.PointsNodalND();
const VectReal_wp& weights = quad.WeightsNodalND(); // and weights

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

PointsDof1D

This method returns the 1-D points on the unit interval [0, 1] associated with the degrees of freedom (dof). In the first syntax, you can retrieve a single dof point. The degrees of freedoms on the edges will be spaced following these dof points.

Example :

TriangleClassical tri;
int order = 4;
tri.ConstructFiniteElement(order);

// a single dof point (on unit interval)
int i = 2;
Real_wp x = tri.PointsDof1D(i);

// or all 1-D dof points
const VectReal_wp& xvec = tri.PointsDof1D();

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

Points1D

This method returns the 1-D integration points on the unit interval [0, 1]. In the first syntax, you can retrieve a single integration point. For quadrilaterals and hexahedra, quadrature points of the reference element will be generated by a tensorization of these 1-D points.

Example :

QuadrangleGauss quad;
int order = 4;
quad.ConstructFiniteElement(order);

// a single integration point (on unit interval)
int i = 2;
Real_wp x = quad.Points1D(i);

// or all 1-D integration points
const VectReal_wp& xvec = quad.Points1D();

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

Weights1D

This method returns the 1-D integration weights on the unit interval [0, 1]. In the first syntax, you can retrieve a single integration weight. For quadrilaterals and hexahedra, quadrature points and weights of the reference element will be generated by a tensorization of these 1-D points and weights.

Example :

QuadrangleGauss quad;
int order = 4;
quad.ConstructFiniteElement(order);

// a single integration weight (on unit interval)
int i = 2;
Real_wp x = quad.Weights1D(i);

// or all 1-D integration weights
const VectReal_wp& xvec = quad.Weights1D();

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

GetHybridType

This method returns 0 if the element is a triangle and 1 if the element is a quadrangle. In 3-D, it returns 0 for a tetrahedron, 1 for a pyramid, 2 for a wedge and 3 for an hexahedron.

Example :

QuadrangleGauss quad;
int order = 4;
quad.ConstructFiniteElement(order);

// should return 1 here (quad)
int type = quad.GetHybridType();

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

GetNbVertices

This method returns the number of vertices of the reference element (for example 4 for the unit square).

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// should return 5 here (a pyramid has 5 vertices)
int nb_vertices = pyr.GetNbVertices();

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

GetNbEdges

This method returns the number of edges of the reference element (for example 4 for the unit square).

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// should return 8 here (a pyramid has 8 edges)
int nb_edges = pyr.GetNbEdges();

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

GetNbBoundaries

This method returns the number of edges of the reference element in 2-D, and the number of faces in 3-D.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// should return 5 here (a pyramid has 5 faces)
int nb_edges = pyr.GetNbBoundaries();

TriangleClassical tri;
tri.ConstructFiniteElement(order);

nb_vertices = tri.GetNbBoundaries(); // 3 edges

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

SetAxisymmetricGeometry

This method informs that the 2-D mesh is actually a section of an axisymmetric domain. This information is relevant for the computation of the curvatures, since there is a curvature due to the rotation of the section.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);
pyr.SetAxisymmetricGeometry();

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

GetSurfaceFiniteElement

This method returns the 1-D finite element that corresponds to the restriction of 2-D basis functions on an edge of the element. For a 3-D element, it will return the 2-D finite element that corresponds to the restriction of the 3-D finite element on a face. num_loc is the local edge number (local face number in 3-D).

Example :

WedgeGeomReference wed;
wed.ConstructFiniteElement(3);

// face 0 is a quadrangle => we get a quadrilateral finite element
const ElementGeomReference<Dimension2>& quad = wed.GetSurfaceFiniteElement(0);

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// face 1 is a triangle, it should return a triangular finite element
const ElementReference<Dimension2, 1>& tri = pyr.GetSurfaceFiniteElement(1);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

SetMesh

This method takes the mesh that will be used to compute transformation Fi. Usually, this method has to be called after ConstructFiniteElement in order to initialize arrays needed for the transformation Fi (for curved elements).

Example :

// starting with a curved mesh
Mesh<Dimension3> mesh;
mesh.SetGeometryOrder(2);
mesh.Read("test.msh");

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// then you can compute transformation Fi
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElem(s, pts, mesh, num_elem);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

GetNormale

This method computes the outgoing normale n_i to the real element K_i from the inverse of the jacobian matrix DF_i and the normale on the reference element. The used formula is the following one

where J_i is the determinant of DF_i and ds_i the surface element (used for boundary integrals).

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemNodal(s, pts, mesh, num_elem);

// then jacobian matrix on a single point of a face
Matrix3_3 dfjm1;
wed.DFj(s, pts, R3(0.4, 0.7, 0.0), dfjm1, mesh, num_elem);
GetInverse(dfjm1);

// from this jacobian matrix, you can deduce the outgoing normale associated with this point
// and surface element
R3 normale; Real_wp dsj;
wed.GetNormale(dfjm1, normale, dsj, 0);
cout << "Normale = " << normale;

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

FjCurvePhi

This method computes pt_glob = F_i(pt_loc) for a curved element. It also computes the shape functions φ_k involved in the computation. For curved elements the transformation F_i is given as

The points A_k are provided in the object PointsElem whereas the coefficients φ_k are stored in the output array phi.

Example :

WedgeGeomReference wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemNodal(s, pts, mesh, num_elem);

// we compute res = Fi(pt_loc) and shape functions phi_i(pt_loc)
R3 pt_loc(0.2, 0.5, 0.1); VectReal_wp phi; R3 res;
wed.FjCurvePhi(pts, pt_loc, res, phi);

SetMatrices<Dimension3> mat;
wed.DFjElemNodal(s, pts, mat, mesh, num_elem);

// then we can reuse the shape function to compute jacobian matrix
Matrix3_3 dfj;
wed.DFjCurvePhi(mat, pt_loc, dfj, phi);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

DFjCurvePhi

This method computes pt_glob = DF_i(pt_loc) for a curved element, from the shape functions φ_k (already computed by the method FjCurvePhi). The computation is performed with the relation

The matrices DF_{i, k} are provided in the object MatricesElem whereas the coefficients φ_k are given in the array phi.

Example :

WedgeGeomReference wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemNodal(s, pts, mesh, num_elem);

// we compute res = Fi(pt_loc) and shape functions phi_i(pt_loc)
R3 pt_loc(0.2, 0.5, 0.1); VectReal_wp phi; R3 res;
wed.FjCurvePhi(pts, pt_loc, res, phi);

SetMatrices<Dimension3> mat;
wed.DFjElemNodal(s, pts, mat, mesh, num_elem);

// then we can reuse the shape function to compute jacobian matrix
Matrix3_3 dfj;
wed.DFjCurvePhi(mat, pt_loc, dfj, phi);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

GetMemorySize

This method returns the size used by the finite element in bytes.

Example :

TriangleClassical tri;
tri.ConstructFiniteElement(5);

cout << "Size = " << tri.GetMemorySize() << endl;

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

GetCenterReferenceElement

This method returns the center of the reference element (e.g. (0.5, 0.5) for the unit square).

Example :

TriangleGeomReference tri;
tri.ConstructFiniteElement(5);

cout << "Center of unit triangle = " << tri.GetCenterReferenceElement() << endl;

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

ConstructFiniteElement

This method constructs a finite element at a given order.

Example :

TriangleGeomReference tri;
tri.ConstructFiniteElement(5);

// then you can for example compute values of shape functions on a point
R2 pt_loc(0.2, 0.3); VectReal_wp phi;
tri.ComputeValuesPhiNodalRef(pt_loc, phi);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

ConstructFiniteElement

This method constructs a finite element at a given order. Only the first argument is needed, other arguments are optional. The first syntax is defined for 2-D finite elements, whereas the second syntax applies for 3-D finite elements.

Example :

TriangleClassical tri;
tri.ConstructFiniteElement(5);

// you can specify optional parameters
tri.ConstructFiniteElement(3, 2, 4); // P3 element, second order for geometry, and fourth order for integration

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

GetNewNodalInterpolation

This method returns a new projector (class that derives from FiniteElementProjector) that can be used to compute the interpolation from nodal points to other points.

Example :

TriangleGeomReference tri;
tri.ConstructFiniteElement(5);

// we create the object with GetNewNodalInterpolation
FiniteElementProjector* proj;
proj = tri.GetNewNodalInterpolation();

// then we can compute the projector with Init
VectR2 other_points(3);
other_points(0).Init(0.2, 0.2); // etc
proj->Init(tri, other_points);

// ProjectScalar to compute the projection of a field from nodal points to the other points
VectReal_wp u_nodal(tri.GetNbPointsNodalElt()); u_nodal.FillRand();
VectReal_wp u_other(other_points.GetM());
proj->ProjectScalar(u_nodal, u_other);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

Fj

This method computes pt_glob = F_i(pt_loc).

Example :

Mesh<Dimension3> mesh;

HexahedronLobatto hex;
hex.ConstructFiniteElement(3);
hex.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
hex.FjElemNodal(s, pts, mesh, num_elem);

// we compute res = Fi(pt_loc)
R3 pt_loc(0.2, 0.5, 0.1); R3 res;
hex.Fj(s, pts, pt_loc, res, mesh, num_elem);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

DFj

This method computes the jacobian matrix DF_i(pt_loc).

Example :

Mesh<Dimension3> mesh;

HexahedronLobatto hex;
hex.ConstructFiniteElement(3);
hex.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
hex.FjElemNodal(s, pts, mesh, num_elem);

// we compute res = Fi(pt_loc)
R3 pt_loc(0.2, 0.5, 0.1); R3 res;
hex.Fj(s, pts, pt_loc, res, mesh, num_elem);

// and jacobian matrix dfj = DFi(pt_loc)
Matrix3_3 dfj;
hex.DFj(s, pts, pt_loc, dfj, mesh, num_elem);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

FjLinear

This method computes pt_glob = F_i(pt_loc) assuming that the element is not curved. The transformation Fi is linear for triangles/tetrahedra (but bilinear for quadrilaterals).

Example :

Mesh<Dimension3> mesh;

HexahedronLobatto hex;
hex.ConstructFiniteElement(3);
hex.SetMesh(mesh);

// vertices of the element
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);

// we compute res = Fi(pt_loc) (if the element is straight)
R3 pt_loc(0.2, 0.5, 0.1); R3 res;
hex.FjLinear(s, pt_loc, res);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

DFjLinear

This method computes the jacobian matrix DF_i(pt_loc) assuming that the element is not curved. The transformation Fi is linear for triangles/tetrahedra (but bilinear for quadrilaterals).

Example :

Mesh<Dimension3> mesh;

HexahedronLobatto hex;
hex.ConstructFiniteElement(3);
hex.SetMesh(mesh);

// vertices of the element
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);

// we compute res = Fi(pt_loc) for a straight element
R3 pt_loc(0.2, 0.5, 0.1); R3 res;
hex.FjLinear(s, pt_loc, res);

// and jacobian matrix dfj = DFi(pt_loc)
Matrix3_3 dfj;
hex.DFjLinear(s, pt_loc, dfj);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

GetMinimalSize

This method computes the minimal length of edges of the element. It takes the list of vertices as argument.

Example :

Mesh<Dimension3> mesh;

HexahedronGeomReference hex;
hex.ConstructFiniteElement(3);
hex.SetMesh(mesh);

// vertices of the element
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);

// minimal size of element
Real_wp h = hex.GetMinimalSize(s);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

OutsideReferenceElement

This method returns true if the point pt_loc is outside the reference element. The parameter epsilon is a threshold such that a point slightly outside from the reference element will be considered inside it.

Example :

Mesh<Dimension3> mesh;

HexahedronGeomReference hex;
hex.ConstructFiniteElement(3);
hex.SetMesh(mesh);

// vertices of the element
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);

// pt_loc is outside the reference element ?
R3 pt_loc(-1e-12, 0.1, 0.05);
bool outside = hex.OutsideReferenceElement(s, pt_loc, 1e-10);
if (outside)
  cout << "The point is outside the reference element" << endl;

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

GetDistanceToBoundary

This method returns the distance of the point pt_loc to the boundary of the reference element. If the point is outside the reference element, it will return a negative distance. In the second syntax, the method returns the distance to a specific boundary of the element. For this syntax, the returned distance is always positive.

Example :

Mesh<Dimension3> mesh;

HexahedronGeomReference hex;
hex.ConstructFiniteElement(3);
hex.SetMesh(mesh);

// distance of pt_loc to the boundary of unit cube ?
R3 pt_loc(0.001, 0.1, 0.05);
Real_wp dist = hex.GetDistanceToBoundary(pt_loc); // should return 0.001

// distance to the face 1 of unit cube (i.e. y = 0)
dist = hex.GetDistanceToBoundary(pt_loc, 1); // should return 0.1

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

ProjectPointOnBoundary

This method projects the point pt_loc to the boundary of the reference element if the point is outside the reference element. If the point is inside the reference element, the point is not modified.

Example :

Mesh<Dimension3> mesh;

HexahedronGeomReference hex;
hex.ConstructFiniteElement(3);
hex.SetMesh(mesh);

// projection of pt_loc to the boundary of unit cube
R3 pt_loc(-0.001, 0.1, 0.05);
hex.ProjectPointOnBoundary(pt_loc);
// pt_loc should be equal to (0, 0.1, 0.05)

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

ComputeCoefJacobian

This method computes the coefficients of the polynomial describing the determinant of jacobian matrix. It is implemented only for the tetrahedron, pyramid and wedge. This determinant can be written for straight elements as:

• Tetrahedron : det(DF_i) = c₀
• Pyramid : det(DF_i) = c₀ + c₁ x + c₂ y + 2 c₃ x y
• Wedge : det(DF_i) = c₀ + c₁ x(1-y) + c₂ y + c₃ z + c₄ x(1-y)z + c₅ y z + c₆ z²

For pyramids, x, y, z are the coordinates on the unit cube (and not on the symmetric pyramid).

Example :

Mesh<Dimension3> mesh;

PyramidGeomReference pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// vertices of the element
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);

// polynomial coefficients of J_i = det(DF_i)
VectReal_wp coef;
pyr.ComputeCoefJacobian(s, coef);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

FjElem

This method computes the transformation F_i(x) for all the predefined points (i.e. nodal, quadrature and dof points) of the element. The computed points are stored in the object PointsElem. If you need to compute only quadrature points (resp. nodal points or dof points) you can call FjElemQuadrature (resp. FjElemNodal or FjElemDof), it will be more efficient. If two of more sets of points are needed, it is better to call FjElem that will compute all the points.

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for all points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElem(s, pts, mesh, num_elem);

// if you want to retrieve a nodal point
R3 pt_glob = pts.GetPointNodal(4);

// or a quadrature point
pt_glob = pts.GetPointQuadrature(11);

// or a dof point
pt_glob = pts.GetPointDof(7);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

FjElemNodal

This method computes the transformation F_i(x) for all the nodal points of the element. The computed points are stored in the object PointsElem.

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemNodal(s, pts, mesh, num_elem);

// if you want to retrieve a nodal point
R3 pt_glob = pts.GetPointNodal(4);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

FjElemQuadrature

This method computes the transformation F_i(x) for all the quadrature points of the element. The computed points are stored in the object PointsElem.

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for quadrature points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemQuadrature(s, pts, mesh, num_elem);

// if you want to retrieve a quadrature point
R3 pt_glob = pts.GetPointQuadrature(4);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

FjElemDof

This method computes the transformation F_i(x) for all the dof points of the element. Dof points are the points associated with the degrees of freedom. These points are used when a field needs to be projected on the basis functions. The computed points are stored in the object PointsElem.

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for dof points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemDof(s, pts, mesh, num_elem);

// if you want to retrieve a dof point
R3 pt_glob = pts.GetPointDof(4);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

DFjElem

This method computes the jacobian matrix of the transformation F_i for all the predefined points (i.e. nodal, quadrature and dof points) of the element. The computed matrices are stored in the object MatricesElem.

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemNodal(s, pts, mesh, num_elem);

// then you can compute jacobian matrices for all points
SetMatrices<Dimension3> mat;
wed.DFjElem(s, pts, mat, mesh, num_elem);

// if you want to retrieve the jacobian matrix on a nodal point
Matrix3_3 dfj = mat.GetPointNodal(4);

// or on a quadrature point
dfj = mat.GetPointQuadrature(11);

// or on a dof point
dfj = mat.GetPointDof(7);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

DFjElemNodal

This method computes the jacobian matrix of the transformation F_i for all the nodal points of the element. The computed matrices are stored in the object MatricesElem.

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemNodal(s, pts, mesh, num_elem);

// then you can compute jacobian matrices for nodal points
SetMatrices<Dimension3> mat;
wed.DFjElemNodal(s, pts, mat, mesh, num_elem);

// if you want to retrieve the jacobian matrix on a nodal point
Matrix3_3 dfj = mat.GetPointNodal(4);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

DFjElemQuadrature

This method computes the jacobian matrix of the transformation F_i for all the quadrature points of the element. The computed matrices are stored in the object MatricesElem.

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemNodal(s, pts, mesh, num_elem);

// then you can compute jacobian matrices for quadrature points
SetMatrices<Dimension3> mat;
wed.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// if you want to retrieve the jacobian matrix on a quadrature point
Matrix3_3 dfj = mat.GetPointQuadrature(4);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

DFjElemDof

This method computes the jacobian matrix of the transformation F_i for all the dof points of the element. The computed matrices are stored in the object MatricesElem.

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemNodal(s, pts, mesh, num_elem);

// then you can compute jacobian matrices for dof points
SetMatrices<Dimension3> mat;
wed.DFjElemDof(s, pts, mat, mesh, num_elem);

// if you want to retrieve the jacobian matrix on a dof point
Matrix3_3 dfj = mat.GetPointDof(4);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

ComputeValuesNodalPhi1D

This method computes the 1-D shape functions (on the unit interval) for a given point. These shape functions are Lagrange polynomial given as.

where y_i are nodal points on the unit interval (usually Gauss-Lobatto points).

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);
wed.SetMesh(mesh);

// if you want to compute phi_i for a given point
// where phi_i are 1-D shape functions
Real_wp x(0.23); VectReal_wp phi;
wed.ComputeValuesNodalPhi1D(x, phi);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

ComputeValuesPhiNodalRef

This method computes the shape functions (on the reference element) for a given point. These shape functions are interpolatory functions based on nodal points, they satisfy:

where y_i are nodal points on the reference element.

Example :

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// if you want to compute phi_i for a given point
// where phi_i are shape functions
R3 x(0.23, 0.3, 0.1); VectReal_wp phi;
pyr.ComputeValuesPhiNodalRef(x, phi);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

ComputeGradientPhiNodalRef

This method computes the gradient of shape functions (on the reference element) for a given point. These shape functions are interpolatory functions based on nodal points, they satisfy:

where y_i are nodal points on the reference element.

Example :

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// if you want to compute phi_i for a given point
// where phi_i are shape functions
R3 x(0.23, 0.3, 0.1); VectReal_wp phi;
wed.ComputeValuesPhiNodalRef(x, phi);

// and gradients :
VectR3 grad_phi;
pyr.ComputeGradientPhiNodalRef(x, grad_phi);

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

ComputeCoefficientTransformation

This method computes the coefficients needed to evaluate the transformation Fi on predefined points. Usually, it is not needed to call this function since it is already called in ConstructFiniteElement.

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

ComputeNodalGradientRef

This method computes the gradient of a field u (defined on the reference element). On input, the vector u stores the values of the field on nodal points:

where are shape functions based on nodal points. On output the vector grad_u stores the values of ∇ u on nodal points:

The computations are made on the reference element. If you need to compute a gradient on the real element, you can call ComputeNodalGradient. The method works for real-valued vectors or complex-valued vectors.

Example :

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// defining a field on the reference element
VectReal_wp u(pyr.GetNbPointsNodalElt());
u.FillRand(); // u(i) is the value of u on the nodal point i

// computing its gradient
VectR3 grad_u;
pyr.ComputeNodalGradientRef(u, grad_u);
// grad_u(i) is the gradient of u on the nodal point i

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

ComputeNodalGradient

This method computes the gradient of a field u (defined on the real element). On input, the vector u stores the values of the field on nodal points:

where are shape functions based on nodal points. On output the vector grad_u stores the values of ∇ u on nodal points:

The computations are made on the real element. That is the reason why jacobian matrices are needed in MatricesElem. The method works for real-valued vectors or complex-valued vectors.

Example :

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
wed.FjElemNodal(s, pts, mesh, num_elem);

// then you can compute jacobian matrices for nodal points
SetMatrices<Dimension3> mat;
wed.DFjElemNodal(s, pts, mat, mesh, num_elem);

// defining a field on the real element
VectReal_wp u(pyr.GetNbPointsNodalElt());
u.FillRand(); // u(i) is the value of u on the nodal point i

// computing its gradient
VectR3 grad_u;
pyr.ComputeNodalGradient(mat, u, grad_u);
// grad_u(i) is the gradient of u on the nodal point i

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReference.cxx

QuadratureEqualNodal

This method returns true if the quadrature points coincide with nodal points.

Example :

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);

// nodal points = quadrature points ?
if (pyr.QuadratureEqualNodal())
  cout << "Quadrature points are equal to nodal points" << endl;

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

DofEqualNodal

This method returns true if the dof points coincide with nodal points.

Example :

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);

// nodal points = dof points ?
if (pyr.DofEqualNodal())
  cout << "Dof points are equal to nodal points" << endl;

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

DofEqualQuadrature

This method returns true if the dof points coincide with quadrature points.

Example :

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);

// dof points = quadrature points ?
if (pyr.DofEqualQuadrature())
  cout << "Quadrature points are equal to dof points" << endl;

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

SetGeometryOrder

This method modifies the geometry order stored in the geometric element. On a regular use, this method should not be called since the geometry order is set when ConstructFiniteElement is called.

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

GetGeometricElement

This method returns the geometric element stored in the finite element class. The geometric element is an object used to store shape functions and compute transformation Fi.

Example :

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);

// to retrieve the geometric element :
const ElementGeomReference<Dimension3>& elt = pyr.GetGeometricElement();

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

SetPointsDof1D

This method sets the 1-D dof points stored in the geometric element. This method does not need to be called in a regular use.

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

SetPoints1D

This method sets the 1-D quadrature points stored in the geometric element. This method does not need to be called in a regular use.

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

SetWeights1D

This method sets the 1-D quadrature weights stored in the geometric element. This method does not need to be called in a regular use.

Location :

FiniteElement/ElementGeomReference.hxx
FiniteElement/ElementGeomReferenceInline.cxx

LumpedMassMatrix

This method returns true if the finite element class achieves mass lumping. For instance, it is achieved by using Gauss-Lobatto points both for degrees of freedom and quadrature. For scalar finite elements, it will induce a diagonal mass matrix. For vectorial finite elements (such as edge elements), the mass matrix will be block-diagonal with small blocks.

Example :

HexahedronLobatto hex;
hex.ConstructFiniteElement(3);

// should return true here
bool lumping = hex.LumpedMassMatrix();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

MassLumpingOrthogonalElement

This method returns true if the finite element class achieves mass lumping when the elements are orthogonal (i.e. the jacobian matrix DF_i is uniform and diagonal). For hexahedra, orthogonal elements are rectangular parallelepipeds. If the mesh contains only orthogonal elements, the mass matrix will be diagonal.

Example :

HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(3);

// should return true here
// mass lumping for orthogonal elements, but not for any element
bool lumping = hex.MassLumpingOrthogonalElement();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

DiagonalMassMatrix

This method returns true if the finite element class achieves mass lumping and that the mass matrix is diagonal. Usually it will be the case only for scalar elements. For vectorial elements, the mass lumping will induce a block-diagonal mass matrix.

Example :

HexahedronHcurlLobatto hex;
hex.ConstructFiniteElement(3);

// should return false here (mass lumping, but block-diagonal mass matrix)
bool diag_mass = hex.DiagonalMassMatrix();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

DiscontinuousElement

This method returns true if the finite element class can only be used with a discontinuous Galerkin formulation. For exemple, the class QuadrangleDgGauss constructs basis functions that are interpolatory polynomials based on Gauss-Legendre points, that do not include extremities. As a result, these basis functions cannot be used to construct a continuous approximation of a field.

Example :

HexahedronDgGauss hex;
hex.ConstructFiniteElement(3);

// should return true here
bool dg_only = hex.DiscontinuousElement();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

UsePiolaTransform

This method returns true if the finite element class will use Piola transform. This transform is relevant only for vectorial elements. For edge elements, we have the relation

Thanks to this Piola transform, the basis functions can be used to approximate H(curl) space. If Piola transform is not used, we will have the relation

and the finite element can be used only with a discontinuous Galerkin formulation. By default, the Piola transform is used.

Example :

HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(3);

// should return true here
bool piola = hex.UsePiolaTransform();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

SetPiolaTransform

This method enables or disables the use of the Piola transform. This transform is explained in the method UsePiolaTransform. In regular use, this method does not need to be called.

Example :

HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(3);

// if you want to disable the use of Piola transform
hex.SetPiolaTransform(false);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

This method returns true if the finite element class implements an optimized computation of the mass matrix. The naive algorithm has a complexity of O(r⁶) in 2-D and O(r⁹) in 3-D. Usually, it is the case of finite elements with tensorized basis functions. For these elements, the optimized algorithm will usually have a complexity in O(r⁵) in 2-D and O(r⁷) in 3-D.

Example :

HexahedronHierarchic hex;
hex.ConstructFiniteElement(3);

// should return true
bool opt_mass = hex.OptimizedComputationMassMatrix();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

This method returns true if the finite element class implements an optimized computation of the elementary finite element matrices. The naive algorithm has a complexity of O(r⁶) in 2-D and O(r⁹) in 3-D. Usually, it is the case of finite elements with tensorized basis functions. For these elements, the optimized algorithm will usually have a complexity in O(r⁵) in 2-D and O(r⁷) in 3-D.

Example :

HexahedronHierarchic hex;
hex.ConstructFiniteElement(3);

// should return true
bool opt_mass = hex.OptimizedComputationElementaryMatrix();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

SparseMassMatrix

This method returns true if the elementary mass matrix is sparse. This is the case if there is a mass lumping (total or partial).

Example :

WedgeLobatto wed; // here partial mass lumping in z only
wed.ConstructFiniteElement(3);

// should return true
bool sparse_mass = wed.SparseMassMatrix();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

LinearSparseMassMatrix

This method returns true if the elementary mass matrix is sparse for straight elements. This is the case if there is a total or partial orthogonality between basis functions.

Example :

WedgeHierarchic wed;
wed.ConstructFiniteElement(3);

// should return true
bool sparse_mass = wed.LinearSparseMassMatrix();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

UseQuadraturePointsForSh

This method returns true if it is more efficient to compute the matrix-vector with operator S_h with values on quadrature points. In that case, the methods ApplyShQuadrature, ApplyShQuadratureTranspose should be preferred over ApplySh, ApplyShTranspose.

Example :

HexahedronDgGauss hex;
hex.ConstructFiniteElement(3);

// is it better to compute Y = Sh X with values on quadrature points ?
bool answer = hex.UseQuadraturePointsForSh();

Related topics:

ApplyShQuadrature, ApplyShQuadratureTranspose

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

UseQuadraturePointsForRh

This method returns true if it is more efficient to compute the matrix-vector with operator R_h with values on quadrature points. In that case, the methods ApplyRhQuadrature, ApplyRhQuadratureTranspose should be preferred over ApplyRh, ApplyRhTranspose.

Example :

HexahedronDgGauss hex;
hex.ConstructFiniteElement(3);

// is it better to compute Y = Rh X with values on quadrature points ?
bool answer = hex.UseQuadraturePointsForRh();

Related topics:

ApplyRhQuadrature, ApplyRhQuadratureTranspose

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

UseQuadratureFreeSh

This method returns true if the operator S_h is evaluated without quadrature points. This is possible only for affine faces (such as triangles or rectangles).

Example :

HexahedronDgGauss hex;
hex.ConstructFiniteElement(3);

// Sh without quadrature points ?
bool answer = hex.UseQuadratureFreeRh();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetMaximalOrderRestriction

This method returns the maximal advised order r_rmax to store the prolongation/restriction operator. If r is greater than r_rmax, it is advised to not store this operator. The prolongation operator is the operator that prolongates a finite element solution to a higher order approximation, usually by interpolation:

where φ_j are basis functions of the coarse order, and x_i interpolation points of the fine order. The restriction operator is the transpose of the prolongation operator P.

Example :

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);

// we retrieve rmax
int rmax = pyr.GetMaximalOrderRestriction();
if (pyr.GetOrder() <= rmax)
  cout << "It is better to store the restriction operator" << endl;

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetOrder

This method returns the order of approximation for the constructed element.

Example :

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);

// should return 3
int r = pyr.GetOrder();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetQuadratureOrder

This method returns the order of integration for the constructed element.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3, 2, 4);

// should return 4
int r = hex.GetQuadratureOrder();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetNbDof

This method returns the number of degrees of freedom for the constructed element.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// should return 4^3 = 64 dofs
int nb_dof = hex.GetNbDof();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetNbPointsQuadratureInside

This method returns the number of integration points used for volume integrals. Volume integrals can be evaluated as

The method returns the integer N.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// should return 4^3 = 64 quadrature points for 3-D integrals
int nb_quad = hex.GetNbPointsQuadratureInside();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetNbPointsQuadBoundaries, GetNbPointsUsedForSh

This method returns the number of integration points used for surface integrals. Surface integrals can be evaluated as

where j stands for the face number. The method returns the sum of integers N_j.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// should return 4^2 x 6 = 96 points for surface integrals
int nb_quad_surf = hex.GetNbPointsQuadBoundaries();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetNbDofBoundaries

This method returns the number of degrees of freedom associated with the vertices and edges of the element (in 2-D), vertices, edges and faces of the element (in 3-D).

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// should return 4^3 - 2^3 = 56 dofs on the boundary of the element (8 interior dofs)
int nb_dof_bord = hex.GetNbDofBoundaries();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetNbPointsDofInside

This method returns the number of points used to project a field on the degrees of freedom.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// we want to project a function to the finite element space (on the reference element)
int nb_pts = hex.GetNbPointsDofInside(); // number of points where the function will be evaluated

// evaluation of the function f = exp(-|| x ||) on dof points
VectReal_wp feval(nb_pts);
for (int i = 0; i < nb_pts; i++)
  feval(i) = exp(-Norm2(hex.PointsDofND(i)));

// projection on basis functions
VectReal_wp u;
hex.ComputeProjectionDofRef(feval, u);

// u = \sum u_i phi_i is an approximation of f

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetNbPointsDofSurface

This method returns the number of points used to project a surface field on the degrees of freedom of the surface finite element (trace of the finite element on a face (edge in 2-D) of the element).

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// we want to project a surface function to the surface finite element space
int num_loc = 2; // local number of the face
int nb_pts = hex.GetNbPointsDofSurface(num_loc); // number of points where the function will be evaluated

// evaluation of the function f = exp(-|| x ||) on dof points
VectReal_wp feval(nb_pts);
for (int i = 0; i < nb_pts; i++)
  feval(i) = exp(-Norm2(hex.PointsDofND(hex.GetPointDofNumber(num_loc, i))));

// projection on basis functions of surface finite element
VectReal_wp u;
hex.ComputeProjectionSurfaceDofRef(feval, u, num_loc);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetPointDofNumber

This method returns the point dof number of the i-th surface dof.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// we want to project a surface function to the surface finite element space
int num_loc = 2; // local number of the face
int nb_pts = hex.GetNbPointsDofSurface(num_loc); // number of points where the function will be evaluated

// evaluation of the function f = exp(-|| x ||) on dof points
VectReal_wp feval(nb_pts);
// here num = hex.GetPointDofNumber(num_loc, i) is the point dof number
// PointsDofND(num) will be the i-th dof point located on the face num_loc
for (int i = 0; i < nb_pts; i++)
  feval(i) = exp(-Norm2(hex.PointsDofND(hex.GetPointDofNumber(num_loc, i))));

// projection on basis functions of surface finite element
VectReal_wp u;
hex.ComputeProjectionSurfaceDofRef(feval, u, num_loc);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetQuadNumber

This method returns the quadrature point number of the i-th quadrature point of the face num_loc.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// we want to compute a surface integral \int_{\partial_j \hat{K}} f(x) \hat{\varphi}_i(x) dx
int num_loc = 2;
int nb_quad = hex.GetNbQuadBoundary(num_loc);

// evaluation of the function f = exp(-|| x ||) on quadrature points
VectReal_wp feval(nb_quad);
// here num = hex.GetQuadNumber(num_loc, i) is the quadrature point number
// PointsND(num) will be the coordinates of this point
for (int i = 0; i < nb_quad; i++)
  feval(i) = exp(-Norm2(hex.PointsND(hex.GetQuadNumber(num_loc, i))))
           *hex.WeightsQuadratureBoundary(i, num_loc);

// computation of the surface integral
VectReal_wp u;
hex.ComputeIntegralSurfaceRef(feval, u, num_loc);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetQuadNumbersBoundary

This method returns the quadrature point numbers of the faces (edges in 2-D) of an element.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// we want to compute a surface integral \int_{\partial_j \hat{K}} f(x) \hat{\varphi}_i(x) dx
int num_loc = 2;
int nb_quad = hex.GetNbQuadBoundary(num_loc);

// evaluation of the function f = exp(-|| x ||) on quadrature points
VectReal_wp feval(nb_quad);
// quadrature point numbers for all the faces
const Vector<IVect>& num_quad = hex.GetQuadNumbersBoundary();
for (int i = 0; i < nb_quad; i++)
  feval(i) = exp(-Norm2(hex.PointsND(num_quad(num_loc)(i))))
           *hex.WeightsQuadratureBoundary(i, num_loc);

// computation of the surface integral
VectReal_wp u;
hex.ComputeIntegralSurfaceRef(feval, u, num_loc);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetOffsetSh

This method returns the offset for quadrature point numbers for the face num_loc. Surface integrals can be evaluated as

where j stands for the face number. The method returns the sum of integers N_j from j = 0 until j=num_loc-1.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// incremented number of quadrature points until face num_loc
int num_loc = 2;
int offset_quad = hex.GetOffsetSh(num_loc);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

SetQuadNumbersBoundary

This method sets the quadrature point numbers (as returned by GetQuadNumber) of the faces (edges in 2-D) of the element. This method should not be used in a regular use, since these numbers are already constructed by ConstructFiniteElement.

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

SetDofNumbersBoundary

This method sets the dof point numbers of the faces (edges in 2-D) of the element. This method should not be used in a regular use, since these numbers are already constructed by ConstructFiniteElement.

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetTypeIntegrationEdge

This method returns the type of integration used for the unit interval [0, 1], as expected in the method ConstructQuadrature of the class Globatto. For 2-D elements, this is the integration rule used for the evaluation of boundary integrals.

Example :

QuadrangleLobatto quad;
quad.ConstructFiniteElement(3);

// type of integration for edges
int type_quad = quad.GetTypeIntegrationEdge();
if (type_quad == Globatto<Real_wp>::QUADRATURE_LOBATTO)
  cout << "Using Gauss-Lobatto points" << endl;

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetTypeIntegrationTriangle

This method returns the type of integration used for the unit triangle, as expected in the method ConstructQuadrature of the class TriangleQuadrature. For 3-D elements, this is the integration rule used for the evaluation of boundary integrals. This method is not relevant for 2-D elements.

Example :

TetrahedronClassical tet;
tet.ConstructFiniteElement(3);

// type of integration for triangular faces
int type_tri = tet.GetTypeIntegrationTriangle();
if (type_quad == TriangleQuadrature::QUADRATURE_GAUSS)
  cout << "Using Dunavant's points" << endl;

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

GetTypeIntegrationQuadrangle

This method returns the type of integration used for the unit square, as expected in the method ConstructQuadrature of the class QuadrangleQuadrature. For 3-D elements, this is the integration rule used for the evaluation of boundary integrals. This method is not relevant for 2-D elements.

Example :

WedgeClassical wed;
wed.ConstructFiniteElement(3);

// type of integration for quadrangular faces
int type_quad = wed.GetTypeIntegrationQuadrangle();
if (type_quad == Globatto<Real_wp>::QUADRATURE_GAUSS)
  cout << "Using Gauss points" << endl;

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

IsTangentialDof

This method returns true if the j-th dof belongs to the face (edge in 2-D) num_loc. A dof associated with an edge of the face will also be considered a dof of the face in this method. We say tangential dofs, because for edge elements the dofs on the face are dofs that will contribute to the tangential trace of a field. Basis functions associated with other dofs may will have a null tangential trace on the face. For facet elements, dofs of the face will contribute to the normal trace of the field.

Example :

HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(3);

// is dof 11 a dof of the face num_loc ?
int num_loc = 2;
bool dof_on_face = hex.IsTangentialDof(11, num_loc);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

WeightsND

This method returns a single integration weight or all the weights. These weights can be used for volume integrals.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// number of quadrature points for a volume integral
int nb_quad = hex.GetNbPointsQuadratureInside();

// integration against basis functions (you need to multiply with the weights)
// contrib(i) = \int_{\hat{K}} exp(-r^2)* varphi_i
for (int i = 0; i < nb_quad; i++)
  feval(i) = hex.WeightsND(i)*exp(-DotProd(hex.PointsND(i), hex.PointsND(i)));

Vector<double> contrib;
hex.ComputeIntegralRef(feval, contrib);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

WeightsDofND

This method returns a single integration weight or all the weights. These weights are the weights associated with dof points. They are relevant only if dof points (used by ComputeProjectionDofRef) can be used as integration points.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// number of dof points
int nb_quad = hex.GetNbPointsDofInside();

// integration of a function res = \int_{\hat{K}} f(x) dx where f = exp(-||x||^2)
// we use dof points instead of quadrature points
Real_wp res = 0;
for (int i = 0; i < nb_quad; i++)
  res += hex.WeightsDofND(i)*exp(-DotProd(hex.PointsDofND(i), hex.PointsDofND(i)));

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

WeightsDofND

This method returns the half-weights to use for a boundary integral over the face num_loc. Half-weights are returned instead of weights because numerical fluxes for discontinuous Galerkin formulation usually involves terms 1/2 (u₁ + u₂) or 1/2 (u₁ - u₂). Hence the factor 1/2 is already integrated in the returned array.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// weights divided by two
int num_loc = 2;
const VectReal_wp& poids = hex.GetFluxWeight(num_loc);

// integration of a function res = 1/2 \int_{\partial_j \hat{K}} f(x) dx where f = exp(-||x||^2)
Real_wp res = 0;
for (int i = 0; i < poids.GetM(); i++)
  {
     int num = hex.GetQuadNumber(num_loc, i);
     res += poids(i)*exp(-DotProd(hex.PointsND(num), hex.PointsND(num)));
  }

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBaseInline.cxx

ComputeGaussIntegralSurfaceRef

This method computes a boundary integral with basis functions. The integration is performed with accurate integration (like Gauss points instead of Gauss-Lobatto points). The resulting vector res is equal to

where Γ is a face (edge in 2-D) of the reference element, f a given function and φ_i basis functions of the finite element class. Since weights are included in input vector feval, the resulting vector is equal to

where x_j are Gauss quadrature points of the local face num_loc. The vectors feval and res can be either real-valued or complex-valued.

Example :

QuadrangleLobatto quad;
int order = 4;
quad.ConstructFiniteElement(order);

// Evaluating Gauss formula
Globatto<Real_wp> gauss;
gauss.ConstructQuadrature(order);

// evaluating f on quadrature points of the edge
int num_loc = 1; R2 point;
for (int i = 0; i <= order; i++)
  {
    // position of the integration point on the edge
    quad.GetLocalCoordOnBoundary(num_loc, gauss.Points(i), point);

    feval(i) = exp(-Dot(point, point)) * gauss.Weights(i);
  }

// then integration against basis functions
VectReal_wp res;
quad.ComputeGaussIntegralSurfaceRef(feval, res, num_loc);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyRhQuadrature

This method computes an integral with gradient of basis functions associated with quadrature points. The resulting vector res is equal to

where f is a given function and ψ_i are basis functions associated with quadrature points. The gradient is replaced by a curl for edge elements, and a divergence for facet elements. This method is relevant only if the quadrature points can be associated with basis functions, therefore this method is available only if UseQuadraturePointsForRh returns true. Since weights are included in input vector feval, the resulting vector is equal to

where x_j are quadrature points of the reference element. For edge and facet elements, the divergence and curl are involved:

If the method UseQuadraturePointsForRh returns true, it means that the method ApplyRh consists of a call to ApplyRhQuadrature followed by a call to ApplyCh. So it can be interesting to call ApplyRhQuadrature and regroup with mass terms before calling AppyCh.

Example :

HexahedronHcurlFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// function to evaluate f = (-y^2, z^2, x*y)
VectReal_wp feval(3*hex.GetNbPointsQuadratureInside());
for (int i = 0; i < hex.GetNbPointsQuadratureInside(); i++)
  {
    Real_wp x = hex.PointsND(i)(0), y = hex.PointsND(i)(1), z = hex.PointsND(i)(2);
    Real_wp poids = hex.WeightsND(i);
    feval(3*i) = -y*y*poids; feval(3*i+1) = z*z*poids; feval(3*i+2) = x*y*poids;
  }

// integration against curl of basis functions (based on quadrature points)
VectReal_wp res(3*hex.GetNbPointsQuadratureInside());
hex.ApplyRhQuadrature(feval, res);

// then if you want to have the integral against true basis functions => ApplyCh
VectReal_wp res_final(hex.GetNbDof());
hex.ApplyCh(res, res_final);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyRhQuadratureTranspose

This method is the transpose operation of ApplyRhQuadrature. It computes the gradient of a field on quadrature points

where u is a given field and x_i quadrature points. The gradient is replaced by a curl for edge elements, and a divergence for facet elements. This method is relevant only if the quadrature points can be associated with basis functions, therefore this method is available only if UseQuadraturePointsForRh returns true. The values of the field u are known only on quadrature points (stored in the input vector uquad). The resulting vector is equal to

where ψ_i are basis functions associated with quadrature points of the reference element. If the method UseQuadraturePointsForRh returns true, it means that the method ApplyRhTranspose consists of a call to ApplyChTranspose followed by a call to ApplyRhQuadratureTranspose. So it can be interesting to call ApplyRhQuadratureTranspose if you have already computed the values on quadrature points with AppyChTranspose.

Example :

HexahedronHcurlFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we start from a field u (components on basis functions)
VectReal_wp u(hex.GetNbDof()); u.FillRand();

// we compute the values of u on quadrature points
VectReal_wp uquad(3*hex.GetNbPointsQuadratureInside());
hex.ApplyChTranspose(u, uquad);

// then we compute the curl
VectReal_wp curl_u(3*hex.GetNbPointsQuadratureInside());
hex.ApplyRhQuadratureTranspose(uquad, curl_u);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyRhBoundaryTranspose

This method computes the gradient of a field on quadrature points located on the boundary. These quadrature points are not quadrature points associated with the face, but indeed volume quadrature points (as returned by PointsND that lie on the boundary of the element. In ApplyRh, the gradient is computed for all quadrature points. The method is implemented only for QuadrangleLobatto and HexahedronLobatto.

Example :

HexahedronLobatto hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we start from a field u (components on basis functions)
VectReal_wp u(hex.GetNbDof()); u.FillRand();

// we want to know values of grad(u) only for quadrature points on the boundary of the unit cube :
VectReal_wp grad_u(3*hex.GetNbDofBoundaries());
hex.ApplyRhBoundaryTranspose(u, grad_u);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyRhBoundary

This method is the transpose operator of ApplyRhBoundaryTranspose. It consists of computing the integral of a function f against the gradient of basis functions, assuming that the function to integrate is non-nul only for quadrature points located on the boundary. This method is implemented only for QuadrangleLobatto and HexahedronLobatto.

Example :

HexahedronLobatto hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we start from a function to integrate (null for quadrature points strictly inside the reference element
VectReal_wp feval(3*hex.GetNbDofBoundaries());
feval.RillRand();

// then integration against gradient of basis functions
VectReal_wp res(hex.GetNbDof());
hex.ApplyRhBoundary(feval, res);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyShTranspose

This method computes the values of a field on quadrature points associated with the face num_loc:

where x_i are quadrature points of the face num_loc. The resulting vector is equal to

where φ_j are basis functions. If the optional parameter order is provided, there is an additional projection to compute the values on quadrature points of the face for the required order.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from a field u (components on basis functions)
VectReal_wp u(pyr.GetNbDof()); u.FillRand();

// we want to know values of u for quadrature points of a face
int num_loc = 3;
VectReal_wp uface(pyr.GetNbQuadBoundary(num_loc));
pyr.ApplyShTranspose(num_loc, u, uface);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplySh

This method is the transpose operation of ApplyShTranspose. It adds to the vector res the boundary integral against basis functions:

where f is a given function and φ_i are basis functions. Since weights are included in input vector feval, the resulting vector is equal to

If the optional parameter order is provided, there is an additional projection to interpolate feval from the quadrature points of the face for the given order.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from evaluation of f on quadrature points of a face
int num_loc = 4;
VectReal_wp feval(pyr.GetNbQuadBoundary(num_loc));
for (int i = 0; i < feval.GetM(); i++)
  {
    R2 pt = pyr.PointsQuadratureBoundary(i, num_loc);
    R3 pt3D; pyr.GetLocalCoordOnBoundary(num_loc, pt, pt3D);
    feval(i) = exp(-Dot(pt3D, pt3D));
    feval(i) *= pyr.WeightsQuadratureBoundary(i, num_loc);
  }

VectReal_wp res(pyr.GetNbDof());
res.Zero();

// we want to add the integral against basis functions
// the integral is made over a face
pyr.ApplySh(Real_wp(1), num_loc, feval, res);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyShQuadratureTranspose

This method computes the values of a field on quadrature points associated with the face num_loc:

where x_i are quadrature points of the face num_loc. The resulting vector is equal to

where ψ_j are basis functions associated with the quadrature points of the reference element. If the optional parameter order is provided, there is an additional projection to compute the values on quadrature points of the face for the required order. If the method UseQuadraturePointsForSh returns true, this method can be used and is of interest if you have already computed the values of u on the quadrature points.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from a field u (components on basis functions)
VectReal_wp u(pyr.GetNbDof()); u.FillRand();

// computation on quadrature points
VectReal_wp uquad(pyr.GetNbPointsQuadratureInside());
pyr.ApplyChTranspose(u, uquad);

// we want to know values of u for quadrature points of a face
int num_loc = 3;
VectReal_wp uface(pyr.GetNbQuadBoundary(num_loc));
pyr.ApplyShQuadratureTranspose(num_loc, uquad, uface);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyShQuadrature

This method is the transpose operation of ApplyShQuadratureTranspose. It adds to the vector res the boundary integral against basis functions associated with the quadrature points:

where f is a given function and ψ_i are basis functions associated with quadrature points. Since weights are included in input vector feval, the resulting vector is equal to

If the optional parameter order is provided, there is an additional projection to interpolate feval from the quadrature points of the face for the given order. If the method UseQuadraturePointsForSh returns true, this method should be used instead of ApplySh.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from evaluation of f on quadrature points of a face
int num_loc = 4;
VectReal_wp feval(pyr.GetNbQuadBoundary(num_loc));
for (int i = 0; i < feval.GetM(); i++)
  {
    R2 pt = pyr.PointsQuadratureBoundary(i, num_loc);
    R3 pt3D; pyr.GetLocalCoordOnBoundary(num_loc, pt, pt3D);
    feval(i) = exp(-Dot(pt3D, pt3D));
    feval(i) *= pyr.WeightsQuadratureBoundary(i, num_loc);
  }

VectReal_wp res(pyr.GetNbPointsQuadratureInside());
res.Zero();

// we want to add the integral against basis functions of quadrature points
// the integral is made over a face
pyr.ApplyShQuadrature(Real_wp(1), num_loc, feval, res);

// then if you want to obtain contributions for the true basis functions => ApplyCh
VectReal_wp contrib(pyr.GetNbDof());
pyr.ApplyCh(res, contrib);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyNablaShTranspose

This method computes the gradient of a field on quadrature points associated with the face num_loc:

where x_i are quadrature points of the face num_loc. The gradient is replaced by the curl for edge elements and by the divergence for facet elements. The resulting vector is equal to

where φ_j are basis functions. If the optional parameter order is provided, there is an additional projection to compute the values on quadrature points of the face for the required order.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from a field u (components on basis functions)
VectReal_wp u(pyr.GetNbDof()); u.FillRand();

// we want to know gradient of u for quadrature points of a face
int num_loc = 3;
VectReal_wp uface(3*pyr.GetNbQuadBoundary(num_loc));
pyr.ApplyNablaShTranspose(num_loc, u, uface);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyNablaSh

This method is the transpose operation of ApplyNablaShTranspose. It adds to the vector res the boundary integral against gradient of basis functions:

where f is a given function and φ_i are basis functions. The gradient is replaced by the curl for edge elements and by the divergence for facet elements. Since weights are included in input vector feval, the resulting vector is equal to

If the optional parameter order is provided, there is an additional projection to interpolate feval from the quadrature points of the face for the given order.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from evaluation of f on quadrature points of a face
int num_loc = 4;
VectReal_wp feval(3*pyr.GetNbQuadBoundary(num_loc));
for (int i = 0; i < pyr.GetNbQuadBoundary(num_loc); i++)
  {
    R2 pt = pyr.PointsQuadratureBoundary(i, num_loc);
    R3 pt3D; pyr.GetLocalCoordOnBoundary(num_loc, pt, pt3D);
    feval(3*i) = exp(-Dot(pt3D, pt3D));
    feval(3*i) *= pyr.WeightsQuadratureBoundary(i, num_loc);
    feval(3*i+1) = exp(-Dot(pt3D, pt3D)*0.4);
    feval(3*i+1) *= pyr.WeightsQuadratureBoundary(i, num_loc);
    feval(3*i+2) = exp(-Dot(pt3D, pt3D)*0.8);
    feval(3*i+2) *= pyr.WeightsQuadratureBoundary(i, num_loc);
  }

VectReal_wp res(pyr.GetNbDof());
res.Zero();

// we want to add the integral against gradient of basis functions
// the integral is made over a face
pyr.ApplyNablaSh(Real_wp(1), num_loc, feval, res);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyNablaShQuadratureTranspose

This method computes the gradient of a field on quadrature points associated with the face num_loc:

where x_i are quadrature points of the face num_loc. The gradient is replaced by the curl for edge elements and by the divergence for facet elements. The resulting vector is equal to

where ψ_j are basis functions associated with the quadrature points of the reference element. If the optional parameter order is provided, there is an additional projection to compute the values on quadrature points of the face for the required order. If the method UseQuadraturePointsForSh returns true, this method can be used and is of interest if you have already computed the values of u on the quadrature points.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from a field u (components on basis functions)
VectReal_wp u(pyr.GetNbDof()); u.FillRand();

// computation on quadrature points
VectReal_wp uquad(pyr.GetNbPointsQuadratureInside());
pyr.ApplyChTranspose(u, uquad);

// we want to know gradient of u for quadrature points of a face
int num_loc = 3;
VectReal_wp grad_uface(3*pyr.GetNbQuadBoundary(num_loc));
pyr.ApplyNablaShQuadratureTranspose(num_loc, uquad, grad_uface);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyNablaShQuadrature

This method is the transpose operation of ApplyNablaShQuadratureTranspose. It adds to the vector res the boundary integral against basis functions associated with the quadrature points:

where f is a given function and ψ_i are basis functions associated with quadrature points. The gradient is replaced by a curl for edge elements, and a divergence for facet elements. This method is relevant only if the quadrature points can be associated with basis functions, therefore this method is available only if UseQuadraturePointsForSh returns true. Since weights are included in input vector feval, the resulting vector is equal to

If the optional parameter order is provided, there is an additional projection to interpolate feval from the quadrature points of the face for the given order. If the method UseQuadraturePointsForSh returns true, this method should be used instead of ApplyNablaSh.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from evaluation of f on quadrature points of a face
int num_loc = 4;
VectReal_wp feval(3*pyr.GetNbQuadBoundary(num_loc));
for (int i = 0; i < feval.GetM(); i++)
  {
    R2 pt = pyr.PointsQuadratureBoundary(i, num_loc);
    R3 pt3D; pyr.GetLocalCoordOnBoundary(num_loc, pt, pt3D);
    feval(3*i) = exp(-Dot(pt3D, pt3D));
    feval(3*i) *= pyr.WeightsQuadratureBoundary(i, num_loc);
    feval(3*i+1) = exp(-Dot(pt3D, pt3D)*0.4);
    feval(3*i+1) *= pyr.WeightsQuadratureBoundary(i, num_loc);
    feval(3*i+2) = exp(-Dot(pt3D, pt3D)*0.8);
    feval(3*i+2) *= pyr.WeightsQuadratureBoundary(i, num_loc);
  }

VectReal_wp res(pyr.GetNbPointsQuadratureInside());
res.Zero();

// we want to add the integral against gradient of basis functions of quadrature points
// the integral is made over a face
pyr.ApplyNablaShQuadrature(Real_wp(1), num_loc, feval, res);

// then if you want to obtain contributions for the true basis functions => ApplyCh
VectReal_wp contrib(pyr.GetNbDof());
pyr.ApplyCh(res, contrib);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

SolveMassMatrix

This method replaces the vector x by the solution y of the linear system

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// starting from an initial vector x
VectReal_wp x(pyr.GetNbDof()); x.FillRand();

// we want to replace x by M^{-1} x where M is the mass matrix on the reference element
pyr.SolveMassMatrix(x);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

SolveCholesky

This method replaces the vector x by L^-1x or L^-T x where L is the Cholesky factor of the mass matrix M (defined in the method SolveMassMatrix). Since M is symmetric positive definite, it admits the following Cholesky decomposition:

where L is a triangular matrix.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// starting from an initial vector x
VectReal_wp x(pyr.GetNbDof()); x.FillRand();

// we want to replace x by L^{-1} x
pyr.SolveCholesky(SeldonNoTrans, x);
// then L^{-T} x
pyr.SolveCholesky(SeldonTrans, x);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

MltMassMatrix

This method replaces the vector x by M x where M is the mass matrix (defined in the method SolveMassMatrix).

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// starting from an initial vector x
VectReal_wp x(pyr.GetNbDof()); x.FillRand();

// we want to replace x by M x
pyr.MltMassMatrix(x);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ComputeMassMatrix

This method computes the mass matrix (on the real element) from the polynomial coefficients of the jacobian (as computed by ComputeCoefJacobian). It can be called only if the method LinearSparseMassMatrix returns true and for a non-curved element. It is the case for instance for classes PyramidDgOrtho or WedgeDgOrtho.

Example :

PyramidDgOrtho pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we compute the coefficients of jacobian for the desired element
Mesh<Dimension3> mesh;
VectR3 s; int num_elem = 42;
mesh.GetVerticesElement(num_elem, s);

VectReal_wp coef;
pyr.ComputeCoefJacobian(s, coef);

// we want to compute the mass matrix for this element
Matrix<Real_wp, Symmetric, RowSymPacked> M;
pyr.ComputeMassMatrix(M, coef);

// then you can convert it to a sparse matrix if you want
Matrix<Real_wp, Symmetric, ArrayRowSymSparse> Ms;
ConvertToSparse(M, Ms, 1e-12);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

IntegrateMassMatrix

This method computes the mass matrix (on the real element) from the values of the weighted jacobian (jacobian multiplied by the integration weight) on quadrature points. It can be called only if the method OptimizedComputationMassMatrix returns true.

Example :

WedgeDgClassical wed;
int order = 4;
wed.ConstructFiniteElement(order);

// we compute the values of weighted jacobian for the desired element
Mesh<Dimension3> mesh;
VectR3 s; int num_elem = 42;
mesh.GetVerticesElement(num_elem, s);
SetPoints<Dimension3> PointsElem;
SetMatrices<Dimension3> MatricesElem;
wed.FjElemNodal(s, PointsElem, mesh, num_elem);
wed.DFjElemQuadrature(s, PointsElem, MatricesElem, mesh, num_elem);

int Nquad = wed.GetNbPointsQuadratureInside();
VectReal_wp val_jacob(Nquad);
for (int i = 0; i < Nquad; i++)
  val_jacob(i) = Det(MatricesElement.GetPointQuadrature(i))*wed.WeightsND(i);

// we want to compute the mass matrix for this element
Matrix<Real_wp, Symmetric, RowSymPacked> M;
pyr.IntegrateMassMatrix(M, val_jacob);

// then you can convert it to a sparse matrix if you want
Matrix<Real_wp, Symmetric, ArrayRowSymSparse> Ms;
ConvertToSparse(M, Ms, 1e-12);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

PickNearDofs

This method fills the array ListeDof with dof numbers that are "close" to the degree of freedom num_dof. It is meaningful for nodal finite elements for which a degree of freedom is associated with a point.

Example :

TetrahedronClassical tet;
int order = 4;
tet.ConstructFiniteElement(order);

int num_dof = 11;
VectBool DofUsed(tet.GetNbDof()); DofUsed.Fill(false);

// retrieving 3 dofs close to the dof 11
IVect close_dof; int nb_dof = 3;
tet.PickNearDofs(num_dof, DofUsed, close_dof, nb_dof);

// we update the array DofUsed
for (int i = 0; i < close_dof.GetM(); i++)
  DofUsed(close_dof(i)) = true;

// retrieving 5 dofs close to the dof 15
// but we do not select dofs already selected previously (thanks to array DofUsed)
tet.PickNearDofs(15, DofUsed, close_dof, 5);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ConstructNumberMap

This method fills the object number_map with the number of dofs per vertex, edge, triangle, etc. In the second argument, we put the type of formulation (continuous, discontinuous or hdg) that will be used.

Example :

TetrahedronClassical tet;
int order = 4;
tet.ConstructFiniteElement(order);

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

// choose between CONTINUOUS, DISCONTINUOUS or HDG
mesh_num.ConstructNumberMap(mesh_num.number_map, ElementReference_Base::CONTINUOUS);

// then you can number the mesh
mesh_num.NumberMesh();

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyChTranspose

This method is the transpose operation of ApplyCh. It computes the values of a field on quadrature points

where u is a given field and x_i quadrature points. The resulting vector is equal to

where are basis functions of the reference element.

Example :

HexahedronHcurlFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we start from a field u (components on basis functions)
VectReal_wp u(hex.GetNbDof()); u.FillRand();

// we compute the values of u on quadrature points
VectReal_wp uquad(3*hex.GetNbPointsQuadratureInside());
hex.ApplyChTranspose(u, uquad);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ApplyCh

This method is the transpose operation of ApplyChTranspose. It computes the integral against basis functions

where f is a given function and φ_i are basis functions. The resulting vector is equal to

Example :

HexahedronHcurlFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// function to evaluate f = (-y^2, z^2, x*y)
VectReal_wp feval(3*hex.GetNbPointsQuadratureInside());
for (int i = 0; i < hex.GetNbPointsQuadratureInside(); i++)
  {
    Real_wp x = hex.PointsND(i)(0), y = hex.PointsND(i)(1), z = hex.PointsND(i)(2);
    Real_wp poids = hex.WeightsND(i);
    feval(3*i) = -y*y*poids; feval(3*i+1) = z*z*poids; feval(3*i+2) = x*y*poids;
  }

// integration against basis functions
VectReal_wp res(hex.GetNbDof());
hex.ApplyCh(feval, res);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ComputeProjectionDofRef

This method projects a given function f in the finite element space. For nodal finite element, the projection will be trivial (contrib = feval). The projection is given as

where φ_i are basis functions. f and Pf will be close for dof points (they coincide for some finite elements).

Example :

HexahedronHcurlFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// function to evaluate f = (-y^2, z^2, x*y) on dof points
VectReal_wp feval(3*hex.GetNbPointsDof());
for (int i = 0; i < hex.GetNbPointsDof(); i++)
  {
    Real_wp x = hex.PointsDofND(i)(0), y = hex.PointsDofND(i)(1), z = hex.PointsDofND(i)(2);
    feval(3*i) = -y*y; feval(3*i+1) = z*z; feval(3*i+2) = x*y;
  }

// projection on basis functions
VectReal_wp contrib(hex.GetNbDof());
hex.ComputeProjectionDofRef(feval, contrib);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ComputeProjectionSurfaceDofRef

This method projects a given function f on the boundary finite element space.

Example :

HexahedronHcurlFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

int num_loc = 2;

// function to evaluate f = (-y^2, z^2, x*y) on dof points of the boundary
const VectR2& pts = hex.PointsDofBoundary(num_loc);
VectReal_wp feval(3*pts.GetM());
for (int i = 0; i < pts.GetM(); i++)
  {
    R3 point;
    hex.GetLocalCoordOnBoundary(num_loc, pts(i), point);
    Real_wp x = point(0), y = point(1), z = point(2);
    feval(3*i) = -y*y; feval(3*i+1) = z*z; feval(3*i+2) = x*y;
  }

// projection on basis functions of the boundary
VectReal_wp contrib(hex.GetNbDofBoundary(num_loc));
hex.ComputeProjectionSurfaceDofRef(feval, contrib);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ComputeIntegralRef

This method is actually equivalent to the method ApplyCh. It computes the integral against basis functions

where f is a given function and φ_i are basis functions. The resulting vector is equal to

Example :

HexahedronHcurlFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// function to evaluate f = (-y^2, z^2, x*y)
VectReal_wp feval(3*hex.GetNbPointsQuadratureInside());
for (int i = 0; i < hex.GetNbPointsQuadratureInside(); i++)
  {
    Real_wp x = hex.PointsND(i)(0), y = hex.PointsND(i)(1), z = hex.PointsND(i)(2);
    Real_wp poids = hex.WeightsND(i);
    feval(3*i) = -y*y*poids; feval(3*i+1) = z*z*poids; feval(3*i+2) = x*y*poids;
  }

// integration against basis functions
VectReal_wp res(hex.GetNbDof());
hex.ComputeIntegralRef(feval, res);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

ComputeIntegralSurfaceRef

This method is similar to the method ApplySh. It computes the boundary integral against basis functions:

where f is a given function and φ_i are basis functions. Since weights are included in input vector feval, the resulting vector is equal to

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from evaluation of f on quadrature points of a face
int num_loc = 4;
VectReal_wp feval(pyr.GetNbQuadBoundary(num_loc));
for (int i = 0; i < feval.GetM(); i++)
  {
    R2 pt = pyr.PointsQuadratureBoundary(i, num_loc);
    R3 pt3D; pyr.GetLocalCoordOnBoundary(num_loc, pt, pt3D);
    feval(i) = exp(-Dot(pt3D, pt3D));
    feval(i) *= pyr.WeightsQuadratureBoundary(i, num_loc);
  }

VectReal_wp res(pyr.GetNbDof());

// we want to compute the integral against basis functions
// the integral is made over a face
pyr.ComputeIntegralSurfaceRef(feval, res, num_loc);

Location :

FiniteElement/ElementReferenceBase.hxx
FiniteElement/ElementReferenceBase.cxx

GetValuePhiOnQuadraturePoint

This method computes the values of all basis functions on the k-th quadrature point (on the reference element) :

For scalar finite elements, the type of phi is VectReal_wp whereas it is VectR2 (VectR3 in 3-D) for vectorial finite elements

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we want to know phi_i(x_k)
int k = 12; VectReal_wp phi; // use VectR2 or VectR3 for vectorial finite elements
pyr.GetValuePhiOnQuadraturePoint(k, phi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

GetGradientPhiOnQuadraturePoint

This method computes the gradient of all basis functions on the k-th quadrature point (on the reference element) :

This method is available only for scalar finite elements. For edge elements, you can call GetCurlPhiOnQuadraturePoint. For facet elements, you can call GetDivPhiOnQuadraturePoint.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we want to know \nabla phi_i(x_k)
int k = 12; VectR3 grad_phi;
pyr.GetGradientPhiOnQuadraturePoint(k, grad_phi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

GetCurlPhiOnQuadraturePoint

This method computes the curl of all basis functions on the k-th quadrature point (on the reference element) :

This method is available only for edge elements. For scalar elements, you can call GetGradientPhiOnQuadraturePoint. For facet elements, you can call GetDivPhiOnQuadraturePoint.

Example :

HexahedronHcurlFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we want to know curl(phi)_i(x_k)
int k = 12; VectR3 curl_phi;
hex.GetCurlPhiOnQuadraturePoint(k, curl_phi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

GetDivPhiOnQuadraturePoint

This method computes the divergence of all basis functions on the k-th quadrature point (on the reference element) :

This method is available only for facet elements. For scalar elements, you can call GetGradientPhiOnQuadraturePoint. For edge elements, you can call GetCurlPhiOnQuadraturePoint.

Example :

HexahedronHdivFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we want to know div(phi)_i(x_k)
int k = 12; VectReal_wp div_phi;
hex.GetDivPhiOnQuadraturePoint(k, div_phi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

GetValueSinglePhiQuadrature

This method computes the values of a single basis function on all the quadrature points (on the reference element) :

where x_k are quadrature points on the reference element. This method is available only for scalar finite elements.

Example :

HexahedronGauss hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we want to know phi_i(x_k)
int i = 8; VectReal_wp phi;
hex.GetValueSinglePhiQuadrature(i, phi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

GetGradientSinglePhiQuadrature

This method computes the values (ant its gradients) of a single basis function on all the quadrature points (on the reference element) :

where x_k are quadrature points on the reference element. This method is available only for scalar finite elements.

Example :

HexahedronGauss hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we want to know phi_i(x_k) and \nabla phi_i(x_k)
int i = 8; VectReal_wp phi; VectR3 grad_phi;
hex.GetGradientSinglePhiQuadrature(i, phi, grad_phi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

ComputeValuesPhiRef

This method computes the values of all basis functions for the given point x :

For scalar finite elements, the type of phi is VectReal_wp whereas it is VectR2 (VectR3 in 3-D) for vectorial finite elements

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we want to know phi_i(x)
R3 x(0.2, 0.3, 0.4);
VectReal_wp phi; // use VectR2 or VectR3 for vectorial finite elements
pyr.ComputeValuesPhiRef(x, phi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

ComputeGradientPhiRef

This method computes the gradient of all basis functions for the given point x :

This method is available only for scalar finite elements. For edge elements, you can call ComputeCurlPhiRef. For facet elements, you can call ComputeDivPhiRef.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we want to know grad(phi)_i(x)
R3 x(0.2, 0.3, 0.4);
VectR3 grad_phi;
pyr.ComputeGradientPhiRef(x, grad_phi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

ComputeCurlPhiRef

This method computes the curl of all basis functions for the given point x :

This method is available only for edge elements. For scalar elements, you can call ComputeGradientPhiRef. For facet elements, you can call ComputeDivPhiRef.

Example :

HexahedronHcurlFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we want to know curl(phi)_i(x)
R3 x(0.2, 0.3, 0.4);
VectR3 curl_phi;
hex.ComputeCurlPhiRef(x, curl_phi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

ComputeDivPhiRef

This method computes the divergence of all basis functions for the given point x :

This method is available only for facet elements. For scalar elements, you can call ComputeGradientPhiRef. For edge elements, you can call ComputeCurlPhiRef.

Example :

HexahedronHdivFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we want to know div(phi)_i(x)
R3 x(0.2, 0.3, 0.4);
VectR3 div_phi;
hex.ComputeDivPhiRef(x, div_phi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

SetVariableOrder

This method provides the mesh numbering to the finite element class such that interpolation needed for variable order is computed if needed. This method is useless is you have a fixed order for all the elements of the mesh.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

HexahedronHdivFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

mesh_num.NumberMesh();

// if you want to compute interpolation operators for variable order :
hex.SetVariableOrder(mesh, mesh_num);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

ComputeValuesPhiQuadratureRef

This method computes the values of all basis functions (associated with quadrature points) for the given point x :

This method is meaningful if quadrature points can be used to construct basis functions (mainly for quad/hexahedral elements).

Example :

HexahedronGauss hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we want to know psi_i(x)
R3 x(0.2, 0.3, 0.4);
VectReal_wp psi;
hex.ComputeValuesPhiQuadratureRef(x, psi);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

FjSurfaceElem

This method fills the object res with quadrature points of the boundary num_loc of element num_elem. This method should be called after a call to FjElem or FjElemQuadrature.

Example :

Mesh<Dimension3> mesh;
mesh.Read("test.mesh");

HexahedronGauss hex;
int order = 4;
hex.ConstructFiniteElement(order);
hex.SetMesh(mesh);

// computing quadrature points on a given element
int num_elem = 30;
VectR3 s; mesh.GetVerticesElement(num_elem, s);
SetPoints<Dimension3> PointsElem;
hex.FjElemQuadrature(s, PointsElem, mesh, num_elem);

// then we extract points on a boundary of the element
int num_loc = 2;
hex.FjElemSurface(s, PointsElem, mesh, num_elem, num_loc);

// if you need to have coordinates of a single point :
R3 pt = PointsElem.GetPointQuadratureBoundary(3);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

DFjSurfaceElem

This method fills the object res with jacobian matrices, normales, surface element and curvatures for the quadrature points of the boundary num_loc of element num_elem. This method should be called after a call to DFjElem or DFjElemQuadrature. In 3-D, the curvatures are correctly computed if the boundary belongs to a curved surface (if the mesh file is curved, or if you provide a predefined curve in TypeCurve). In 2-D, the second curvature k2 is null except if you called the method SetAxisymmetricGeometry (called for axisymmetric problems).

Example :

Mesh<Dimension3> mesh;
mesh.Read("test.mesh");

HexahedronGauss hex;
int order = 4;
hex.ConstructFiniteElement(order);
hex.SetMesh(mesh);

// computing quadrature points on a given element
int num_elem = 30;
VectR3 s; mesh.GetVerticesElement(num_elem, s);
SetPoints<Dimension3> PointsElem;
hex.FjElemQuadrature(s, PointsElem, mesh, num_elem);

// and jacobian matrices
SetMatrices<Dimension3> MatricesElem;
hex.DFjElemQuadrature(s, PointsElem, MatricesElem, mesh, num_elem);

// then we extract jacobian matrices on quadrature points of a boundary of the element
int num_loc = 2;
hex.DFjElemSurface(s, PointsElem, MatricesElem, mesh, num_elem, num_loc);

// you can access to the jacobian matrix, outgoing normale, surface element or curvatures
int num_point = 3;
Matrix3_3 dfj = MatricesElem.GetPointQuadratureBoundary(num_point);
R3 normale = MatricesElem.GetNormaleQuadratureBoundary(num_point);
Real_wp ds = MatricesElem.GetDsQuadratureBoundary(num_point);
// two curvatures k1 and k2
Real_wp k1 = MatricesElem.GetK1QuadratureBoundary(num_point);
Real_wp k2 = MatricesElem.GetK2QuadratureBoundary(num_point);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

FjSurfaceElemDof

This method fills the object res with dof points of the boundary num_loc of element num_elem. This method should be called after a call to FjElem or FjElemDof.

Example :

Mesh<Dimension3> mesh;
mesh.Read("test.mesh");

HexahedronGauss hex;
int order = 4;
hex.ConstructFiniteElement(order);
hex.SetMesh(mesh);

// computing dof points on a given element
int num_elem = 30;
VectR3 s; mesh.GetVerticesElement(num_elem, s);
SetPoints<Dimension3> PointsElem;
hex.FjElemDof(s, PointsElem, mesh, num_elem);

// then we extract dof points on a boundary of the element
int num_loc = 2;
hex.FjElemSurfaceDof(s, PointsElem, mesh, num_elem, num_loc);

// if you need to have coordinates of a single point :
R3 pt = PointsElem.GetPointDofBoundary(3);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

DFjSurfaceElemDof

This method fills the object res with jacobian matrices for the dof points of the boundary num_loc of element num_elem. This method should be called after a call to DFjElem or DFjElemDof.

Example :

Mesh<Dimension3> mesh;
mesh.Read("test.mesh");

HexahedronGauss hex;
int order = 4;
hex.ConstructFiniteElement(order);
hex.SetMesh(mesh);

// computing dof points on a given element
int num_elem = 30;
VectR3 s; mesh.GetVerticesElement(num_elem, s);
SetPoints<Dimension3> PointsElem;
hex.FjElemDof(s, PointsElem, mesh, num_elem);

// and jacobian matrices
SetMatrices<Dimension3> MatricesElem;
hex.DFjElemDof(s, PointsElem, MatricesElem, mesh, num_elem);

// then we extract jacobian matrices on dof points of a boundary of the element
int num_loc = 2;
hex.DFjElemSurfaceDof(s, PointsElem, MatricesElem, mesh, num_elem, num_loc);

// you can access to the jacobian matrix
int num_point = 3;
Matrix3_3 dfj = MatricesElem.GetPointDofBoundary(num_point);

Location :

FiniteElement/ElementReference.hxx
FiniteElement/ElementReference.cxx

PointsQuadInsideND

This method returns the quadrature points on the reference element. The parameter N is the number of quadrature points to extract.

Example :

TriangleGeomReference tri;
int order = 4;
tri.ConstructFiniteElement(order);

// we want to retrieve the first four quadrature points
VectR2 xvec = tri.PointsQuadInsideND(4);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

PointsQuadInsideND

This method returns the quadrature points on the reference element. The parameter N is the number of quadrature points to extract.

Example :

TriangleClassical tri;
int order = 4;
tri.ConstructFiniteElement(order);

// we want to retrieve the quadrature points for integrals over the triangle
VectR2 pts = tri.PointsQuadInsideND();

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

GetNbPointsNodalElt

This method returns the number of nodal points of the reference element.

Example :

TriangleGeomReference tri;
int order = 4;
tri.ConstructFiniteElement(order);

// how many nodal points on the triangle ?
int N = tri.GetNbPointsNodalElt();

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetNbNodalBoundary

This method returns the number of nodal points located on the face (edge in 2-D) num_loc.

Example :

PyramidGeomReference pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// how many nodal points on a face of the pyramid
int nb_nodes_quad = pyr.GetNbNodalBoundary(0); // first face is a quad
int nb_nodes_tri = pyr.GetNbNodalBoundary(1); // other faces are triangles

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetNumNodes2D, GetNumNodes3D

The method GetNumNodes2D returns the node number from its position (i, j) in 2-D. If no argument is provided, it returns directly the matrix containing the node numbers. The method GetNumNodes3D is available in 3-D only and returns the node number from its position (i, j, k). The method GetCoordinateNodes2D (GetCoordinateNodes3D in 3-D) returns the reciprocal array, to know the position (i, j) of a node from its number.

Example :

int order = 4;
TriangleGeomReference tri;
tri.ConstructFiniteElement(order);

int node12 = tri.GetNumNodes2D(1, 2);

// to get all the numbers :
const Matrix<int>& node_num = tri.GetNumNodes2D();

// position of node 13 :
int i = tri.GetCoordinateNodes2D()(13, 0);
int j = tri.GetCoordinateNodes2D()(13, 1);

// 3-D example
HexahedronGeomReference hex;
hex.ConstructFiniteElement(order);
int node102 = hex.GetNumNodes3D(1, 0, 2);
const Array3D<int>& node_hex = hex.GetNumNodes3D();

// position of node 13 :
i = hex.GetCoordinateNodes3D()(13, 0);
j = hex.GetCoordinateNodes3D()(13, 1);
int k = hex.GetCoordinateNodes3D()(13, 2);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

PointsNodalBoundary

This method returns the i-th nodal point of the boundary num_loc. This point is a 1-D nodal point (2-D point in 3-D) and not a point on the reference element. To obtain the point on the reference element, you can call GetLocalCoordOnBoundary.

Example :

int order = 4;
TriangleGeomReference tri;
tri.ConstructFiniteElement(order);

int num_loc = 1;
Real_wp x = tri.PointsNodalBoundary(2, num_loc); // 1-D nodal point

// to get coordinates in the reference element
R2 point; tri.GetLocalCoordOnBoundary(num_loc, x, point);

// 3-D example
HexahedronGeomReference hex;
hex.ConstructFiniteElement(order);

R2 pt2D = hex.PointsNodalBoundary(2, num_loc);

// to get coordinates in the reference element
R3 point3D; hex.GetLocalCoordOnBoundary(num_loc, pt2D, point3D);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetNodalNumber

This method returns the i-th nodal point number of the boundary num_loc.

Example :

int order = 4;
TriangleGeomReference tri;
tri.ConstructFiniteElement(order);

int num_loc = 1; int i = 3;
int n = tri.GetNodalNumber(num_loc, i);

// to get coordinates in the reference element
R2 point = tri.PointsNodalND(n);

// 3-D example
HexahedronGeomReference hex;
hex.ConstructFiniteElement(order);

n = hex.GetNodalNumber(num_loc, i);

// to get coordinates in the reference element
R3 point3D = hex.PointsNodalND(n);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

PointsND

This method returns the i-th quadrature point of the reference element. In the second syntax, you can retrieve all the quadrature points.

Example :

int order = 4;
TriangleClassical tri;
tri.ConstructFiniteElement(order);

// a single quadrature point
R2 pt = tri.PointsND(3);

// or all the quadrature points
const VectR2& all_pts = tri.PointsND();

// 3-D example
HexahedronGauss hex;
hex.ConstructFiniteElement(order);

// a single quadrature point
R3 point = hex.PointsND(3);

// or all the quadrature points
const VectR3& all_pts_3d = hex.PointsND();

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

PointsQuadND

This method returns the quadrature points of the reference element. The difference with PointsND is that the quadrature points of the boundaries are placed after quadrature points for volume integrals even though some quadrature points may coincide (for instance with Gauss-Lobatto points). As a result, the returned array can contain duplicate points, whereas PointsND should return an array without duplicates.

Example :

int order = 4;
TriangleClassical tri;
tri.ConstructFiniteElement(order);

// all the quadrature points (interior and boundaries after)
VectR2 all_pts = tri.PointsQuadND();

// 3-D example
HexahedronLobatto hex;
hex.ConstructFiniteElement(order);

VectR3 all_pts3d = hex.PointsQuadND();

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

PointsDofBoundary

This method returns the dof points of the boundary num_loc. These dof points are 1-D coordinates for 2-D finite elements and 2-D points for 3-D finite elements. They can be used to compute the projection on trace finite element. To obtain the coordinates on the reference element, the method GetLocalCoordOnBoundary can be used.

Example :

int order = 4;
TriangleClassical tri;
tri.ConstructFiniteElement(order);

// dof points for an edge
const VectReal_wp& dof_pts1d = tri.PointsDofBoundary(0);

// 3-D example
PyramidClassical pyr;
pyr.ConstructFiniteElement(order);

// dof points for a face
const VectR2& dof_pts2d = pyr.PointsDofBoundary(0);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

PointsQuadratureBoundary

This method returns the quadrature points of the boundary num_loc. These quadrature points are 1-D coordinates for 2-D finite elements and 2-D points for 3-D finite elements. To obtain the coordinates on the reference element, the method GetLocalCoordOnBoundary can be used. In the second syntax, you can retrieve a single quadrature point.

Example :

int order = 4;
TriangleClassical tri;
tri.ConstructFiniteElement(order);

// quadrature points for an edge
int num_loc = 1;
const VectReal_wp& quad_pts1d = tri.PointsQuadratureBoundary(num_loc);

// single point
int k = 3;
Real_wp x = tri.PointsQuadratureBoundary(k, num_loc);

// 3-D example
PyramidClassical pyr;
pyr.ConstructFiniteElement(order);

// quadrature points for a face
const VectR2& quad_pts2d = pyr.PointsQuadratureBoundary(num_loc);

// single point
R2 pt = pyr.PointsQuadratureBoundary(k, num_loc);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

WeightsQuadratureBoundary

This method returns the quadrature weights of the boundary num_loc. These quadrature weights can be used for 1-D integrals over unit interval for 2-D finite elements.For 3-D finite elements, they can be used for an integral over the unit square (if the face num_loc is a quadrilateral) or the unit triangle (if the face num_loc is a triangle). In the second syntax, you can retrieve a single quadrature weight.

Example :

int order = 4;
TriangleClassical tri;
tri.ConstructFiniteElement(order);

// quadrature weights for unit interval
int num_loc = 1;
const VectReal_wp& quad_weights1d = tri.WeightsQuadratureBoundary(num_loc);

// single weight
int k = 3;
Real_wp w = tri.WeightsQuadratureBoundary(k, num_loc);

// 3-D example
PyramidClassical pyr;
pyr.ConstructFiniteElement(order);

// quadrature weights for unit triangle (face 1 is a triangle)
const VectReal_wp& quad_wts2d = pyr.WeightsQuadratureBoundary(num_loc);

// single weight
w = pyr.WeightsQuadratureBoundary(k, num_loc);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetNbPointsDof

This method returns the number of dof points (interior + boundary). These dof points are points associated with degrees of freedom, and are used to project a function in the finite element basis (boundary dof points can be used to project on the surface finite element).

Example :

int order = 4;
TriangleClassical tri;
tri.ConstructFiniteElement(order);

// total number of dof points
int N = tri.GetNbPointsDof();

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

PointsDofND

This method returns the coordinates of the i-th dof point. You can also retrieve all the dof points. These dof points are points associated with degrees of freedom, and are used to project a function in the finite element basis.

Example :

int order = 4;
TriangleClassical tri;
tri.ConstructFiniteElement(order);

// evaluation of a function on dof points
VectReal_wp feval(tri.GetNbPointsDofInside());
for (int i = 0; i < tri.GetNbPointsDofInside(); i++)
  feval(i) = exp(-Norm(tri.PointsDofND(i)));

// then projection on finite element basis
VectReal_wp u;
tri.ComputeProjectionDofRef(feval, u);

// you can also retrieve all the dof points
const VectR2& pts = tri.PointsDofND();

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetNbPointsQuadrature

This method returns the number of integration points used for volume or surface integrals. The points can be accessed with the method PointsND, and weights with the method WeightsND.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// should return 4^3 (3-D) + 6*4^2 (for faces) =  160
int nb_quad = hex.GetNbPointsQuadrature();
// hex.GetNbPointsQuadratureInside() will return 64 (points for 3-D integrals only)

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetNbQuadBoundary

This method returns the number of integration points used for surface integral over the face (edge in 2-D) num_loc.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// we want to compute a surface integral \int_{\partial_j K} f(x) \hat{\varphi}_i(x) dx
int num_loc = 2;
int nb_quad = hex.GetNbQuadBoundary(num_loc);

// evaluation of the function f = exp(-|| x ||) on quadrature points
VectReal_wp feval(nb_quad);
// here num = hex.GetQuadNumber(num_loc, i) is the quadrature point number
// PointsND(num) will be the coordinates of this point
for (int i = 0; i < nb_quad; i++)
  feval(i) = exp(-Norm2(hex.PointsND(hex.GetQuadNumber(num_loc, i))))
           *hex.WeightsQuadratureBoundary(i, num_loc);

// computation of the surface integral
VectReal_wp u;
hex.ComputeIntegralSurfaceRef(feval, u, num_loc);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetLocalCoordOnBoundary

This method computes the coordinates of point from the local position on the face num_loc. In the second syntax, the reciprocal operation is performed : local position is filled from coordinates on the reference element.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// local position of a point on the face
R2 pt_loc(0.2, 0.5);

// coordinates on the reference element
int num_loc = 1; // face number
R3 point;
hex.GetLocalCoordOnBoundary(num_loc, pt_loc, point);

// point should be equal to (0.2, 0.0, 0.5) for this example

// you can perform the reciprocal operation
R2 pt_loc2;
hex.GetLocalCoordOnBoundary(num_loc, point, pt_loc2);
// pt_loc2 should be equal to (0.2, 0.5) for this example


// example in 2-D
TriangleClassical tri;
tri.ConstructFiniteElement(3);

// local position of a point on the edge
Real_wp xloc = 0.3;

// coordinates on the reference element
num_loc = 1; // edge number
R2 point_tri;
tri.GetLocalCoordOnBoundary(num_loc, xloc, point_tri);

// point should be equal to (0.7, 0.3) for this example

// you can perform the reciprocal operation
Real_wp xloc2;
tri.GetLocalCoordOnBoundary(num_loc, point_tri, xloc2);
// xloc2 should be equal to 0.3 for this example

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetBoundingBox

This method computes the bounding box containing the element defined by its vertices s. box is a bounding polygon, enveloppe the bounding box, and coef is a safety coefficient (which can be used for curved elements for example).

Example :

Mesh<Dimension3> mesh;
mesh.Read("test.mesh");

// bounding box of element 18 ?
VectR3 s;
int n = 18;
mesh.GetVerticesElement(n, s);

// estimating the bounding box with a safety coefficient of 10%
// you can put 0 if the element is straight
VectR3 box(s.GetM());
TinyVector<R3, 2> enveloppe;
ElementGeomReference<Dimension3>::GetBoundingBox(s, 0.1, box, enveloppe);
cout << "the element is included in box " << "[" << enveloppe(0)(0) << "," << enveloppe(1)(0) << "] x ["
     << enveloppe(0)(1) << "," << enveloppe(1)(1) << "] x ["
     << enveloppe(0)(2) << "," << enveloppe(1)(2) << " ]" << endl;

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

IsAffineTransformation

This method returns true if the transformation F_i that transforms the reference element to the given element is affine. If this transformation is affine, it can be written as

in 3-D. Triangles/tetrahedra always conduct to an affine transformation. For quadrilaterals, only parallelograms conduct to an affine transformation.

Example :

Mesh<Dimension3> mesh;
mesh.Read("test.mesh");

// vertices of an element
int n = 18; VectR3 s;
mesh.GetVerticesElement(n, s);

// Fi is affine for this element ?
bool affine = ElementGeomReference<Dimension3>::IsAffineTransformation(s);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetCurvatureNodal

This method computes the curvatures for nodal points (local abscissae are given by lob.Points) from normale and lineic elements. This method is available only in 2-D. On a regular use, if you need curvatures on the quadrature points, the best is to call DFjSurfaceElem, which computes the curvatures in 2-D or 3-D.

Example :

Globatto<Real_wp> lob;
lob.ConstructQuadrature(3, lob.QUADRATURE_LOBATTO);

// normales and lineic element on Gauss-Lobatto points
VectR2 normale(4); VectReal_wp ds(4);
for (int i = 0: i < 4; i++)
  {
    Real_wp teta = lob.Points(i);
    normale(i).Init(cos(teta), sin(teta));
    ds(i) = 1.0;
  }

// h will contain the curvatures for Gauss-Lobatto points (here h should be filled with ones since we chose a circle of radius 1)
VectReal_wp h;
ElementGeomReference<Dimension2>GetCurvatureNodal(lob, normale, ds, h);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetNodalShapeFunctions1D

This method returns the object storing 1-D shape functions based on the nodal points (usually Gauss-Lobatto points).

Example :

TriangleClassical tri;
tri.ConstructFiniteElement(3);

// retrieving 1-D shape functions (on the unit interval)
const Globatto<Real_wp>& lob = tri.GetNodalShapeFunctions1D();

// then you can use the object to evaluate shape functions for example
VectReal_wp phi;
lob.ComputeValuesPhiRef(Real_wp(0.4), phi);

Location :

FiniteElement/FaceGeomReference.hxx
FiniteElement/FaceGeomReference.cxx
FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

IsLocalFaceQuadrilateral

This method returns true if the face num_loc is a quadrilateral. It is relevant only for 3-D finite elements.

Example :

WedgeGeomReference elt;

// face 1 is a quadrangle ?
bool quad = elt.IsLocalFaceQuadrilateral(1);

Location :

FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

TangenteLocX, TangenteLocY

These methods return two tangent vectors of the face num_loc (of the reference element). It is available only for 3-D finite elements.

Example :

  PyramidClassical pyr;
  pyr.ConstructFiniteElement(4);

  // tangent vectors of face 4
  R3 u = pyr.TangenteLocX(4);
  R3 v = pyr.TangenteLocY(4);

Location :

FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetTangentialVector, TransposeTangentialVector

The method GetTangentialVector returns a 3-D tangential vector for the face num_loc from a 2-D vector (on the unit square for quadrilateral faces, the unit triangle for triangular faces). The method TransposeTangentialVector is the reciprocal function.

Example :

  PyramidClassical pyr;
  pyr.ConstructFiniteElement(4);

  // 3-D tangent vector for face 2
  R2 u(0.8, 0.6);
  R3 v = pyr.GetTangentialVector(2, u);

  // recovering u from v :
  u = pyr.TransposeTangentialVector(2, v);

Location :

FiniteElement/VolumeGeomReference.hxx
FiniteElement/VolumeGeomReference.cxx

GetLocalNumber

This method returns the dof number of the i-th degree of freedom of the face num_loc.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// dof i of face num_loc
int num_loc = 1; int i = 5;
int num_dof = hex.GetLocalNumber(num_loc, i);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReferenceInline.cxx

GetNbDofBoundary

This method returns the number of degrees of freedom associated with the face num_loc.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(3);

// number of dofs for face 2 ?
int nb_dof = hex.GetNbDofBoundary(2);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReferenceInline.cxx

ProjectQuadratureToDofRef

This method projects a field on the finite element basis from values on quadrature points.

Example :

HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(3);

// field on quadrature points
// exemple : f = (sin(x), cos(yz), exp(-x-z))
VectReal_wp u_quad(3*hex.GetNbPointsQuadratureInside());
for (int i = 0; i < hex.GetNbPointsQuadratureInside(); i++)
  {
    Real_wp x = hex.PointsND(i)(0), y = hex.PointsND(i)(1), z = hex.PointsND(i)(2);
    u_quad(3*i) = sin(x); u_quad(3*i+1) = cos(y*z); u_quad(3*i+2) = exp(-x-z);
  }

// projection on degrees of freedom
VectReal_wp u(hex.GetNbDof());
hex.ProjectQuadratureToDofRef(u_quad, u);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReferenceInline.cxx

ComputeLocalProlongationLowOrder

This method computes a prolongation operator that can be used to project a field defined on the coarse element to a field defined on the fine element (i.e. current element). This prolongation is computed by considering a subdivided mesh of the coarse element such that each basis function of the coarse element is seen as a first order basis function for the sub-element. With this approach; the prolongation operator is sparser than by calling ComputeLocalProlongation.

Example :

HexahedronHcurlFirstFamily hex_fine;
hex_fine.ConstructFiniteElement(4);

HexahedronHcurlFirstFamily hex_coarse;
hex_coarse.ConstructFiniteElement(2);

// sparse prolongation operator
Matrix<Real_wp> P;
hex_fine.ComputeLocalProlongationLowOrder(hex_coarse, P);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReferenceInline.cxx

ComputeNodalValuesRef

This method computes the values of a field on nodal points of the reference element from components on degrees of freedom.

Example :

HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(4);

// starting from a random vector
VectReal_wp u(hex.GetNbDof());
u.FillRand();

// projection on nodal points
VectReal_wp u_nodal;
hex.ComputeNodalValuesRef(u, u_nodal);

int num_pt = 3;
R3 vec_u;
vec_u.Init(u_nodal(3*num_pt), u_nodal(3*num_pt+1), u_nodal(3*num_pt+2));

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReferenceInline.cxx

ComputeProjectionPointsSurf

This method computes a projection operator to interpolate a scalar field defined on pts_source to a scalar field defined on pts_destination. It is currently implemented for the specific where there are more source points than destination points.

Example :

HexahedronGauss hex;
hex.ConstructFiniteElement(4);

int m = 10;
VectR2 pts_source(m);
pts_source(0).Init(0.0, 0.0);
pts_source(1).Init(1.0, 0.0);
// etc

int n= 4;
VectR2 pts_dest(n);
pts_dest(0).Init(0.2, 0.2);
pts_dest(1).Init(0.8, 0.2);
// etc

int num_loc = 2;
Matrix<Real_wp> P;
hex.ComputeProjectionPointsSurf(num_loc, pts_source, pts_dest, P);

// then if you know a field on pts_source :
VectReal_wp u(pts_source.GetM());
u.FillRand();

// you can interpolate i to pts_dest :
VectReal_wp u_dest(pts_source.GetM());
Mlt(P, u, u_dest);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReferenceInline.cxx

ComputeVariableInterpolation

This method computes the interpolation needed for variable order. This interpolation step is performed when you call ApplySh or ApplyShTranspose. Usually the method should be called to compute the present orders and construct associated interpolators. In this method, you provide directly the orders that are present (without giving the mesh). This method is present only for 2-D finite elements.

Example :

QuadrangleGauss quad;
quad.ConstructFiniteElement(4);

// we want to construct interpolation with order 3 and 5
int rmax = 8;
VectBool order_present(rmax+1);
order_present.Fill(false);
order_present(5) = true; order_present(3) = true;

quad.ComputeVariableInterpolation(rmax, order_present);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx

ComputeIntegralGradientRef

This method is actually equivalent to the method ApplyRh. It computes the integral against the gradient of basis functions

where f is a given function and φ_i are basis functions. The resulting vector is equal to

where x_i are quadrature points of the reference element.

This function is only available for scalar finite elements.

Example :

HexahedronLobatto hex;
int order = 4;
hex.ConstructFiniteElement(order);

// function to evaluate f = (-y^2, z^2, x*y)
VectReal_wp feval(3*hex.GetNbPointsQuadratureInside());
for (int i = 0; i < hex.GetNbPointsQuadratureInside(); i++)
  {
    Real_wp x = hex.PointsND(i)(0), y = hex.PointsND(i)(1), z = hex.PointsND(i)(2);
    Real_wp poids = hex.WeightsND(i);
    feval(3*i) = -y*y*poids; feval(3*i+1) = z*z*poids; feval(3*i+2) = x*y*poids;
  }

// integration against gradient of basis functions
VectReal_wp res(hex.GetNbDof());
hex.ComputeIntegralGradientRef(feval, res);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ComputeIntegralCurlRef

This method is actually equivalent to the method ApplyRh. It computes the integral against the curl of basis functions

where f is a given function and φ_i are basis functions. The resulting vector is equal to

where x_i are quadrature points of the reference element.

This function is only available for edge elements.

Example :

HexahedronHcurlFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// function to evaluate f = (-y^2, z^2, x*y)
VectReal_wp feval(3*hex.GetNbPointsQuadratureInside());
for (int i = 0; i < hex.GetNbPointsQuadratureInside(); i++)
  {
    Real_wp x = hex.PointsND(i)(0), y = hex.PointsND(i)(1), z = hex.PointsND(i)(2);
    Real_wp poids = hex.WeightsND(i);
    feval(3*i) = -y*y*poids; feval(3*i+1) = z*z*poids; feval(3*i+2) = x*y*poids;
  }

// integration against curl of basis functions
VectReal_wp res(hex.GetNbDof());
hex.ComputeIntegralCurlRef(feval, res);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ComputeIntegralDivRef

This method is actually equivalent to the method ApplyRh. It computes the integral against the divergence of basis functions

where f is a given function and φ_i are basis functions. The resulting vector is equal to

where x_i are quadrature points of the reference element.

This function is only available for facet elements.

Example :

HexahedronHdivFirstFamily hex;
int order = 4;
hex.ConstructFiniteElement(order);

// function to evaluate f = x*y*z
VectReal_wp feval(hex.GetNbPointsQuadratureInside());
for (int i = 0; i < hex.GetNbPointsQuadratureInside(); i++)
  {
    Real_wp x = hex.PointsND(i)(0), y = hex.PointsND(i)(1), z = hex.PointsND(i)(2);
    Real_wp poids = hex.WeightsND(i);
    feval(i) = poids*x*y*z;
  }

// integration against divergence of basis functions
VectReal_wp res(hex.GetNbDof());
hex.ComputeIntegralDivRef(feval, res);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ComputeIntegralSurfaceGradientRef

This method is similar to the method ApplyNablaSh. It computes the boundary integral against the gradient basis functions:

where f is a given function and φ_i are basis functions. Since weights are included in input vector feval, the resulting vector is equal to

where x_i are quadrature points of the face num_loc of the reference element.

This function is only available for scalar finite elements.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from evaluation of f  = (cos(x+y), sin(z), exp(x-z)) on quadrature points of a face
int num_loc = 4;
VectReal_wp feval(pyr.GetNbQuadBoundary(num_loc));
for (int i = 0; i < feval.GetM(); i++)
  {
    R2 pt = pyr.PointsQuadratureBoundary(i, num_loc);
    R3 pt3D; pyr.GetLocalCoordOnBoundary(num_loc, pt, pt3D);
    Real_wp x = pt3D(0), y = pt3D(1), z = pt3D(2);
    Real_wp w = pyr.WeightsQuadratureBoundary(i, num_loc);
    feval(3*i) = w*cos(x+y); feval(3*i+1) = w*sin(z); feval(3*i+2) = w*exp(x-z);
  }

VectReal_wp res(pyr.GetNbDof());

// we want to compute the integral against gradient of basis functions
// the integral is made over a face
pyr.ComputeIntegralSurfaceGradientRef(feval, res, num_loc);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ComputeIntegralSurfaceCurlRef

This method is similar to the method ApplyNablaSh. It computes the boundary integral against the curl of basis functions:

where f is a given function and φ_i are basis functions. Since weights are included in input vector feval, the resulting vector is equal to

where x_i are quadrature points of the face num_loc of the reference element.

This function is only available for edge elements.

Example :

PyramidHcurlFirstFamily pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from evaluation of f  = (cos(x+y), sin(z), exp(x-z)) on quadrature points of a face
int num_loc = 4;
VectReal_wp feval(pyr.GetNbQuadBoundary(num_loc));
for (int i = 0; i < feval.GetM(); i++)
  {
    R2 pt = pyr.PointsQuadratureBoundary(i, num_loc);
    R3 pt3D; pyr.GetLocalCoordOnBoundary(num_loc, pt, pt3D);
    Real_wp x = pt3D(0), y = pt3D(1), z = pt3D(2);
    Real_wp w = pyr.WeightsQuadratureBoundary(i, num_loc);
    feval(3*i) = w*cos(x+y); feval(3*i+1) = w*sin(z); feval(3*i+2) = w*exp(x-z);
  }

VectReal_wp res(pyr.GetNbDof());

// we want to compute the integral against curl of basis functions
// the integral is made over a face
pyr.ComputeIntegralSurfaceCurlRef(feval, res, num_loc);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ComputeIntegralSurfaceDivRef

This method is similar to the method ApplyNablaSh. It computes the boundary integral against the divergence of basis functions:

where f is a given function and φ_i are basis functions. Since weights are included in input vector feval, the resulting vector is equal to

where x_i are quadrature points of the face num_loc of the reference element.

This function is only available for facet elements.

Example :

PyramidHdivFirstFamily pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from evaluation of f  = cos(x+y-z) on quadrature points of a face
int num_loc = 4;
VectReal_wp feval(pyr.GetNbQuadBoundary(num_loc));
for (int i = 0; i < feval.GetM(); i++)
  {
    R2 pt = pyr.PointsQuadratureBoundary(i, num_loc);
    R3 pt3D; pyr.GetLocalCoordOnBoundary(num_loc, pt, pt3D);
    Real_wp x = pt3D(0), y = pt3D(1), z = pt3D(2);
    Real_wp w = pyr.WeightsQuadratureBoundary(i, num_loc);
    feval(i) = w*cos(x+y-z);
  }

VectReal_wp res(pyr.GetNbDof());

// we want to compute the integral against divergence of basis functions
// the integral is made over a face
pyr.ComputeIntegralSurfaceDivRef(feval, res, num_loc);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ComputeValueBoundaryRef

This method computes the values of a field on nodal points of the face num_loc of the reference element from components on degrees of freedom.

Example :

HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(4);

// starting from a random vector
VectReal_wp u(hex.GetNbDof());
u.FillRand();

// projection on nodal points of a face
int num_loc = 2; // face number
VectReal_wp u_nodal;
hex.ComputeValueBoundaryRef(u, u_nodal, num_loc);

int num_pt = 3;
R3 vec_u;
vec_u.Init(u_nodal(3*num_pt), u_nodal(3*num_pt+1), u_nodal(3*num_pt+2));

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReferenceInline.cxx

ComputeGradientBoundaryRef

This method computes the gradient of a field on nodal points of the face num_loc of the reference element from components on degrees of freedom.

This method is available only for scalar finite elements.

Example :

HexahedronLobatto hex;
hex.ConstructFiniteElement(4);

// starting from a random vector
VectReal_wp u(hex.GetNbDof());
u.FillRand();

// projection on nodal points of a face
int num_loc = 2; // face number
VectReal_wp grad_u_nodal;
hex.ComputeGradientBoundaryRef(u, grad_u_nodal, num_loc);

int num_pt = 3;
R3 vec_u;
vec_u.Init(grad_u_nodal(3*num_pt), grad_u_nodal(3*num_pt+1), grad_u_nodal(3*num_pt+2));

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReferenceInline.cxx

ComputeCurlBoundaryRef

This method computes the curl of a field on nodal points of the face num_loc of the reference element from components on degrees of freedom.

This method is available only for edge elements.

Example :

HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(4);

// starting from a random vector
VectReal_wp u(hex.GetNbDof());
u.FillRand();

// projection on nodal points of a face
int num_loc = 2; // face number
VectReal_wp curl_u_nodal;
hex.ComputeCurlBoundaryRef(u, curl_u_nodal, num_loc);

int num_pt = 3;
R3 vec_u;
vec_u.Init(curl_u_nodal(3*num_pt), curl_u_nodal(3*num_pt+1), curl_u_nodal(3*num_pt+2));

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReferenceInline.cxx

ComputeDivBoundaryRef

This method computes the divergence of a field on nodal points of the face num_loc of the reference element from components on degrees of freedom.

This method is available only for facet elements.

Example :

HexahedronHdivFirstFamily hex;
hex.ConstructFiniteElement(4);

// starting from a random vector
VectReal_wp u(hex.GetNbDof());
u.FillRand();

// projection on nodal points of a face
int num_loc = 2; // face number
VectReal_wp div_u_nodal;
hex.ComputeDivBoundaryRef(u, div_u_nodal, num_loc);

int num_pt = 3;
Real_wp div_pt = div_u_nodal(num_pt);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReferenceInline.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReferenceInline.cxx

ApplyRhTranspose

This method computes the gradient of a field on quadrature points of the reference element :

where x_i are quadrature points of the reference element. The gradient is replaced by the curl for edge elements and by the divergence for facet elements. The resulting vector is equal to

where φ_j are basis functions.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from a field u (components on basis functions)
VectReal_wp u(pyr.GetNbDof()); u.FillRand();

// we want to know gradient of u for quadrature points
int num_loc = 3;
VectReal_wp gradu_quad(3*pyr.GetNbPointsQuadratureInside());
pyr.ApplyRhTranspose(u, gradu_quad);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ApplyRh

This method is the transpose operation of ApplyRh. It computes the integral against the gradient of basis functions:

where f is a given function and φ_i are basis functions. The gradient is replaced by the curl for edge elements and by the divergence for facet elements. Since weights are included in input vector feval, the resulting vector is equal to

where x_j are quadrature points.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we start from evaluation of f on quadrature points
VectReal_wp feval(3*pyr.GetNbPointsQuadratureInside());
for (int i = 0; i < pyr.GetNbPointsQuadratureInside(); i++)
  {
    R3 pt3D = pyr.PointsND(i);
    feval(3*i) = exp(-Dot(pt3D, pt3D));
    feval(3*i) *= pyr.WeightsND(i);
    feval(3*i+1) = exp(-Dot(pt3D, pt3D)*0.4);
    feval(3*i+1) *= pyr.WeightsND(i);
    feval(3*i+2) = exp(-Dot(pt3D, pt3D)*0.8);
    feval(3*i+2) *= pyr.WeightsND(i);
  }

VectReal_wp res(pyr.GetNbDof());
res.Zero();

// we want to compute the integral against gradient of basis functions
// the integral is made over the reference element
pyr.ApplyRh(feval, res);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ApplyRhSplit

This method is available only for scalar finite elements. It is similar to the method ApplyRh, but the result is split into two vectors (three in 3-D). It computes the integral against the derivatives of basis functions:

where f is a given function and φ_i are basis functions. Since weights are included in input vector feval, the resulting vector is equal to

where x_j are quadrature points. The method ApplyRh actually computes res = vx + vy + vz (res = vx + vy in 2-D).

Example :

HexahedronLobatto hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we start from evaluation of f on quadrature points
VectReal_wp feval(3*hex.GetNbPointsQuadratureInside());
for (int i = 0; i < hex.GetNbPointsQuadratureInside(); i++)
  {
    R3 pt3D = hex.PointsND(i); Real_wp w = hex.WeightsND(i);
    Real_wp x = pt3D(0), y = pt3D(1), z = pt3D(2);
    feval(3*i) = w*exp(-x+y);
    feval(3*i+1) = w*cos(x*z);
    feval(3*i+2) = w*sin(y*z + x);
  }

VectReal_wp vx(hex.GetNbDof()), vy(hex.GetNbDof()), vz(hex.GetNbDof());

// we want to compute the integral against derivatives
 (f_x against x-derivatives, f_y against y-derivatives, f_z against z-derivatives)
hex.ApplyRhSplit(feval, vx, vy, vz);

// ApplyRh actually computes res = vx + vy + vz

// example in 2-D : vz is not present
QuadrangleLobatto quad;
quad.ConstructFiniteElement(order);

feval.Reallocate(2*quad.GetNbPointsQuadratureInside());
feval.FillRand();

quad.ApplyRhSplit(feval, vx, vy);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ApplyRhQuadratureSplit

This method is available only for scalar finite elements. It is similar to the method ApplyRhQuadrature, but the result is split into two vectors (three in 3-D). It computes the integral against the derivatives of basis functions (associated with quadrature points:

where f is a given function and ψ_i are basis functions associated with quadrature points. Since weights are included in input vector feval, the resulting vector is equal to

where x_j are quadrature points. The method ApplyRhQuadrature is very close since the vectors vx, vy and vz are intricated in a single vector res.

Example :

HexahedronLobatto hex;
int order = 4;
hex.ConstructFiniteElement(order);

// we start from evaluation of f on quadrature points
VectReal_wp feval(3*hex.GetNbPointsQuadratureInside());
for (int i = 0; i < hex.GetNbPointsQuadratureInside(); i++)
  {
    R3 pt3D = hex.PointsND(i); Real_wp w = hex.WeightsND(i);
    Real_wp x = pt3D(0), y = pt3D(1), z = pt3D(2);
    feval(3*i) = w*exp(-x+y);
    feval(3*i+1) = w*cos(x*z);
    feval(3*i+2) = w*sin(y*z + x);
  }

int N = hex.GetNbPointsQuadratureInside();
VectReal_wp vx(N), vy(N), vz(N);

// we want to compute the integral against derivatives
 (f_x against x-derivatives, f_y against y-derivatives, f_z against z-derivatives)
hex.ApplyRhQuadratureSplit(feval, vx, vy, vz);

// example in 2-D : vz is not present
QuadrangleLobatto quad;
quad.ConstructFiniteElement(order);

feval.Reallocate(2*quad.GetNbPointsQuadratureInside());
feval.FillRand();

quad.ApplyRhQuadratureSplit(feval, vx, vy);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ApplyConstantRh

This method computes v = R u where R is defined as

where φ_i are basis functions, d is the dimension. As a result, we have :

Therefore, it is similar to the method except that u is given in the finite element basis (instead of values on quadrature points multiplied by weights). The method ApplyConstantRh is available only for scalar finite elements. In the case where the jacobian matrix is uniform in the real element, the gradient matrix can be computed directly from this matrix R. The method ApplyConstantRh is usually used for affine elements that imply a constant jacobian. When the jacobian is not constant, the product with the gradient matrix on a real element is computed by calling ApplyChTranspose, multiply by the needed jacobian coefficients for each quadrature point, and call ApplyRh.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// computing integral of u against gradient of basis functions
// v_i = \int u \cdot \nabla \hat{\varphi}_i
VectReal_wp v(pyr.GetNbDof()), u(3*pyr.GetNbDof());
pyr.ApplyConstantRh(u, v);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ApplyConstantRhSplit

This method computes :

Therefore, it is similar to the method ApplyConstantRh except that v is split into vectors vx, vy, vz (v = vx + vy + vz). This method is available only for scalar elements

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// computing integral of u against derivatives of basis functions
VectReal_wp vx(pyr.GetNbDof()), vy(pyr.GetNbDof()), vz(pyr.GetNbDof()), u(3*pyr.GetNbDof());
pyr.ApplyConstantRhSplit(u, vx, vy, vz);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ApplyConstantRhTranspose

This method computes v = R_T u where R is defined as

where φ_i are basis functions, d is the dimension. As a result, we have :

The method ApplyConstantRhTranspose is available only for scalar finite elements. In the case where the jacobian matrix is uniform in the real element, the gradient matrix can be computed directly from this matrix R. The method ApplyConstantRhTranspose is usually used for affine elements that imply a constant jacobian. When the jacobian is not constant, the transpose product with the gradient matrix on a real element is computed by calling ApplyRhTranspose, multiply by the needed jacobian coefficients for each quadrature point, and call ApplyCh.

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

VectReal_wp u(pyr.GetNbDof()), v(3*pyr.GetNbDof());
pyr.ApplyConstantRhTranspose(u, v);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

AddConstantMassMatrix

This method adds the mass matrix to the matrix A :

A[m:m+N, n:n+N] += M

where N is the number of degrees of freedom. The mass matrix M is given as

where C is a constant and φ_i are basis functions. C is a scalar for scalar finite elements, and a 2x2 matrix (3x3 in 3-D) for vectorial elements. This method is well suited to add a mass matrix when the transformation F_i is affine and when there is no variable physical index. For example if you have the following matrix in the real element K_e :

where ρ is a physical index. This integral is transformed in the reference element (for scalar elements):

where J_e is the determinant of the jacobian matrix DF_e. Therefore, if the element is affine, this jacobian will be constant, and if ρ is also constant, you can set:

and call the method AddConstantMassMatrix. The destination matrix A derives from the class VirtualMatrix, it can be a symmetric or general matrix (even sparse).

Example :

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);

// we want to compute only mass matrix
int N = pyr.GetNbDof();
Real_wp jacob = 2.0, rho = 3.0;
Real_wp C = jacob*rho;
Matrix<Real_wp, Symmetric, RowSymPacked> M(N, N);
M.Zero();
pyr.AddConstantMassMatrix(0, 0, C, M);

// example with edge elements
HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(order);

N = hex.GetNbDof();
M.Reallocate(N, N); M.Zero();

// C is a tiny matrix (symmetric or not) 2x2 in 2-D and 3x3 in 3-D
TinyMatrix<Real_wp, Symmetric, 3, 3> Cs;
Cs.SetIdentity();
hex.AddConstantMassMatrix(0, 0, Cs, M);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

AddVariableMassMatrix

This method adds the mass matrix to the matrix A :

A[m:m+N, n:n+N] += M

where N is the number of degrees of freedom. The mass matrix M is given as

where C is a variable coefficient and φ_i are basis functions. C is a vector of scalars for scalar finite elements, and a vector of 2x2 matrices (3x3 in 3-D) for vectorial elements. This method is well suited to add a mass matrix when the transformation F_i is not affine or when there is a variable physical index. For example if you have the following matrix in the real element K_e :

where ρ is a physical index. This integral is transformed in the reference element (for scalar elements):

where J_e is the determinant of the jacobian matrix DF_e. Therefore, you can fill the vector C with :

where x_j, ω_j are quadrature points and weights. Then you can call the method AddVariableMassMatrix. For vectorial elements, the expression is different due to Piola transform :

The destination matrix A derives from the class VirtualMatrix, it can be a symmetric or general matrix (even sparse). Since the weights are already included in C, the method performs the following operation:

Example :

Mesh<Dimension3> mesh;
mesh.Read("test.mesh");

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);
pyr.SetMesh(mesh);

// computing jacobian matrices DF_e
int num_elem = 31; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
SetPoints<Dimension3> pts; SetMatrices<Dimension3> mat;
pyr.FjElemNodal(s, pts, mesh, num_elem);
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// we want to compute only mass matrix
int N = pyr.GetNbDof(); int Nquad = pyr.GetNbPointsQuadratureInside();
VectReal_wp C(Nquad);
// filling coefficient for each quadrature point (e.g. the jacobian)
// you have to multiply the coeffient by the weight
for (int i = 0; i < Nquad; i++)
  C(i) = Det(mat.GetPointQuadrature(i))*pyr.WeightsND(i);

Matrix<Real_wp, Symmetric, RowSymPacked> M(N, N);
M.Zero();
pyr.AddVariableMassMatrix(0, 0, C, M);

// example with edge elements
PyramidHcurlFirstFamily pyr_edge;
pyr_edge.ConstructFiniteElement(order);

N = pyr_edge.GetNbDof();
M.Reallocate(N, N); M.Zero();

pyr_edge.FjElemNodal(s, pts, mesh, num_elem);
pyr_edge.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// taking into account Piola transform
Vector<Matrix3_3> Cs(Nquad); Matrix3_3 dfjm1;
for (int i = 0; i < Nquad; i++)
  {
    GetInverse(mat.GetPointQuadrature(i), dfjm1);
    MltTrans(dfjm1, dfjm1, C(i));
    C(i) *= Det(mat.GetPointQuadrature(i))*pyr_edge.WeightsND(i);
  }

pyr_edge.AddVariableMassMatrix(0, 0, Cs, M);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

AddVariableElemMatrix

This method is available only for scalar finite elements. It adds an elementary matrix to the matrix A :

A[m:m+N, n:n+N] += B

where N is the number of degrees of freedom. The elementary matrix B is given as

where mass, C, D and E are variable coefficients and φ_i are basis functions. mass is a vector of scalars, C is a vector of d x d matrices (d being the dimension), D and E are vectors of vectors of size d. For example if you have the following matrix in the real element K_e :

where ρ, μ, δ and η are physical indexes. This integral is transformed in the reference element :

where J_e is the determinant of the jacobian matrix DF_e. Therefore, you can fill the vector mass, C, D and E with :

where x_j, ω_j are quadrature points and weights. Then you can call the method AddVariableElemMatrix. The destination matrix A derives from the class VirtualMatrix, it can be a symmetric or general matrix (even sparse). Since the weights are already included in the coefficients, the method performs the following operation:

The argument null_term can be used if you want to skip some terms. If null_term(0) is true, the term with mass is not computed (nor added). If null_term(1) is true, the term with C is not computed. If null_term(2) (resp. null_term(3)) is true, the term with D (resp. E) is not computed.

Example :

Mesh<Dimension3> mesh;
mesh.Read("test.mesh");

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);
pyr.SetMesh(mesh);

// computing jacobian matrices DF_e
int num_elem = 31; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
SetPoints<Dimension3> pts; SetMatrices<Dimension3> mat;
pyr.FjElemNodal(s, pts, mesh, num_elem);
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// we want to compute an elementary matrix
int N = pyr.GetNbDof(); int Nquad = pyr.GetNbPointsQuadratureInside();
VectReal_wp mass(Nquad); Vector<Matrix3_3> C(Nquad);
VectR3 D(Nquad), E(Nquad);
// using constant physical indexes (they can also vary)
Real_wp rho = 2.0; Matrix3_3 mu, tmp; mu.SetDiagonal(3.0);
R3 delta(0.8, 0.4, 0.2), eta(1.5, -0.2, 0.9);
// filling coefficient for each quadrature point
// you have to multiply the coeffients by the weight
for (int i = 0; i < Nquad; i++)
{
  Real_wp jacob = Det(mat.GetPointQuadrature(i));
  Matrix3_3 dfjm1; GetInverse(mat.GetPointQuadrature(i), dfjm1);
  mass(i) = rho*jacob*pyr.WeightsND(i);
  MltTrans(mu, dfjm1, tmp); Mlt(dfjm1, tmp, C(i));
  C(i) *= jacob*pyr.WeightsND(i);
  Mlt(dfjm1, delta, D(i));
  D(i) *= jacob*pyr.WeightsND(i);
  Mlt(dfjm1, eta, E(i));
  E(i) *= jacob*pyr.WeightsND(i);
}

Matrix<Real_wp, Symmetric, RowSymPacked> A(N, N);
A.Zero();
TinyVector<bool, 4> null_term(false, false, false, false);
pyr.AddVariableElemMatrix(0, 0, mass, C, D, E, null_term, A);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

AddConstantElemMatrix

This method is available only for scalar finite elements. It adds an elementary matrix to the matrix A :

A[m:m+N, n:n+N] += B

where N is the number of degrees of freedom. The elementary matrix B is given as

where mass, C, D and E are constant coefficients and φ_i are basis functions. mass is a scalar, C is a d x d matrix (d being the dimension), D and E are vectors of size d. For example if you have the following matrix in the real element K_e :

where ρ, μ, δ and η are constant physical indexes. This integral is transformed in the reference element :

where J_e is the determinant of the jacobian matrix DF_e. If the element is affine, these quantities are constant. Therefore, you can set the coefficients mass, C, D and E with :

Then you can call the method AddConstantElemMatrix. The destination matrix A derives from the class VirtualMatrix, it can be a symmetric or general matrix (even sparse). The argument null_term can be used if you want to skip some terms. If null_term(0) is true, the term with mass is not computed (nor added). If null_term(1) is true, the term with C is not computed. If null_term(2) (resp. null_term(3)) is true, the term with D (resp. E) is not computed.

Example :

Mesh<Dimension3> mesh;
mesh.Read("test.mesh");

PyramidClassical pyr;
int order = 4;
pyr.ConstructFiniteElement(order);
pyr.SetMesh(mesh);

// computing jacobian matrices DF_e
int num_elem = 31; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
SetPoints<Dimension3> pts; SetMatrices<Dimension3> mat;
pyr.FjElemNodal(s, pts, mesh, num_elem);
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// we want to compute an elementary matrix
int N = pyr.GetNbDof();
Real_wp mass; Matrix3_3 C; R3 D, E;
// using constant physical indexes (if they vary, use AddVariableElemMatrix)
Real_wp rho = 2.0; Matrix3_3 mu, tmp; mu.SetDiagonal(3.0);
R3 delta(0.8, 0.4, 0.2), eta(1.5, -0.2, 0.9);
// filling coefficient for each quadrature point
// you have to multiply the coeffients by the weight

Real_wp jacob = Det(mat.GetPointQuadrature(0));
Matrix3_3 dfjm1; GetInverse(mat.GetPointQuadrature(0), dfjm1);
mass = rho*jacob;
MltTrans(mu, dfjm1, tmp); Mlt(dfjm1, tmp, C);
C *= jacob;
Mlt(dfjm1, delta, D);
D *= jacob;
Mlt(dfjm1, eta, E);
E *= jacob;

Matrix<Real_wp, Symmetric, RowSymPacked> A(N, N);
A.Zero();
TinyVector<bool, 4> null_term(false, false, false, false);
pyr.AddConstantElemMatrix(0, 0, mass, C, D, E, null_term, A);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

AddConstantStiffnessMatrix

This method is available for vectorial elements. For scalar finite elements, the user can call AddConstantElemMatrix. This method adds the stiffness matrix to the matrix A :

A[m:m+N, n:n+N] += K

where N is the number of degrees of freedom. The stiffness matrix K is given as

where C is a constant and φ_i are basis functions. C is a scalar for 2-D edge elements or facet elements, and a 3x3 matrix for 3-D edge elements. This method is well suited to add a stiffness matrix when the transformation F_i is affine and when there is no variable physical index. For example if you have the following matrix in the real element K_e (for 3-D edge elements) :

where ρ is a physical index. This integral is transformed in the reference element :

where J_e is the determinant of the jacobian matrix DF_e. Therefore, if the element is affine, this jacobian will be constant, and if ρ is also constant, you can set:

and call the method AddConstantStiffnessMatrix. For facet elements, the stiffness matrix on the real element :

is transformed in the reference element :

For facet elements, the constant C is equal to

The destination matrix A derives from the class VirtualMatrix, it can be a symmetric or general matrix (even sparse).

Example :

  PyramidHdivFirstFamily pyr;
  int order = 4;
  pyr.ConstructFiniteElement(order);

  // we want to compute only stifness matrix
  int N = pyr.GetNbDof();
  Real_wp jacob = 2.0, rho = 3.0;
  Real_wp C = rho/jacob;
  Matrix<Real_wp, Symmetric, RowSymPacked> K(N, N);
  K.Zero();
  pyr.AddConstantStifnessMatrix(0, 0, C, K);

  // example with 3-D edge elements
  HexahedronHcurlFirstFamily hex;
  hex.ConstructFiniteElement(order);

  N = hex.GetNbDof();
  K.Reallocate(N, N); K.Zero();

  // C is a 3x3 tiny matrix (symmetric or not)
  TinyMatrix<Real_wp, Symmetric, 3, 3> Cs;
  Cs.SetIdentity();
  hex.AddConstantStiffnessMatrix(0, 0, Cs, K);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

AddVariableStiffnessMatrix

This method is available for vectorial elements. For scalar finite elements, the user can call AddVariableElemMatrix. This method adds the stiffness matrix to the matrix A :

A[m:m+N, n:n+N] += K

where N is the number of degrees of freedom. The stiffness matrix K is given as

where C is a variable coefficient and φ_i are basis functions. C is a vector of scalars for 2-D edge elements or facet elements, and a vector of 3x3 matrices for 3-D edge elements. This method is well suited to add a stiffness matrix when the transformation F_i is not affine or when there is a variable physical index. For example if you have the following matrix in the real element K_e (for 3-D edge elements):

where ρ is a physical index. This integral is transformed in the reference element :

where J_e is the determinant of the jacobian matrix DF_e. Therefore, you can fill the vector C with :

where x_j, ω_j are quadrature points and weights. Then you can call the method AddVariableStiffnessMatrix. For facet elements, the stiffness matrix on the real element :

is transformed in the reference element :

For facet elements, the vector C is equal to

The destination matrix A derives from the class VirtualMatrix, it can be a symmetric or general matrix (even sparse). Since the weights are already included in C, the method performs the following operation:

Example :

Mesh<Dimension3> mesh;
mesh.Read("test.mesh");

PyramidHdivFirstFamily pyr;
int order = 4;
pyr.ConstructFiniteElement(order);
pyr.SetMesh(mesh);

// computing jacobian matrices DF_e
int num_elem = 31; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
SetPoints<Dimension3> pts; SetMatrices<Dimension3> mat;
pyr.FjElemNodal(s, pts, mesh, num_elem);
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// we want to compute only stiffness matrix
int N = pyr.GetNbDof(); int Nquad = pyr.GetNbPointsQuadratureInside();
VectReal_wp C(Nquad);
// filling coefficient for each quadrature point (e.g. the jacobian)
// you have to multiply the coeffient by the weight
for (int i = 0; i < Nquad; i++)
  C(i) = pyr.WeightsND(i) / Det(mat.GetPointQuadrature(i));

Matrix<Real_wp, Symmetric, RowSymPacked> K(N, N);
K.Zero();
pyr.AddVariableMassMatrix(0, 0, C, K);

// example with edge elements
PyramidHcurlFirstFamily pyr_edge;
pyr_edge.ConstructFiniteElement(order);

N = pyr_edge.GetNbDof();
K.Reallocate(N, N); K.Zero();

pyr_edge.FjElemNodal(s, pts, mesh, num_elem);
pyr_edge.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// taking into account Piola transform
Vector<Matrix3_3> Cs(Nquad); Matrix3_3 dfj_trans;
for (int i = 0; i < Nquad; i++)
  {
    Transpose(mat.GetPointQuadrature(i), dfj_trans);
    MltTrans(dfj_trans, dfj_trans, C(i));
    C(i) *= pyr_edge.WeightsND(i) / Det(mat.GetPointQuadrature(i));
  }

pyr_edge.AddVariableStiffnessMatrix(0, 0, Cs, K);

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx
FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

FindH1RotationTri

This method is available only for 2-D scalar finite elements. It computes how degrees of freedom located on a triangular face are transformed when a rotation is applied to the face. It modifies the output argument nmap with the computed informations. This method is called in ConstructNumberMap of 3-D finite element classes.

Example :

class MyTetra : public TetrahedronReference<1>
{
public:
  void ConstructNumberMap(NumberMap& nmap, int dg_form)
  {
    // constructing ValuePhi : trace of 3-D basis functions on a
triangular face
    int Nquad = this->Points2D_tri().GetM();
    int nb_dof = this->GetNbDofBoundary(0);
    Matrix<Real_wp> ValuePhi(nb_dof, Nquad);
    for (int j = 0; j < Nquad; j++)
      {
        R3 pt; this->GetLocalCoordOnBoundary(0, this->Points2D_tri()(j), pt);
        VectReal_wp phi; this->ComputeValuesPhiRef(pt, phi);
        for (int i = 0; i < nb_dof; i++)
          ValuePhi(i, j) = phi(i);
      }

    // constructing the numbers after a rotation of a triangular face
    // (or linear operators if dofs are not invariant by rotation)
    ElementReference<Dimension2, 1>::FindH1RotationTri(this->order, this->Points2D_tri(), this->Weights2D_tri(), ValuePhi, nmap);
   }

};

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx

FindHdivRotationTri

This method is available only for 2-D facet finite elements. It computes how degrees of freedom located on a triangular face are transformed when a rotation is applied to the face. It modifies the output argument nmap with the computed informations. This method is called in ConstructNumberMap of 3-D facet element classes.

Example :

class MyTetra : public TetrahedronReference<1>
{
public:
  void ConstructNumberMap(NumberMap& nmap, int dg_form)
  {
    // constructing ValuePhi : trace of 3-D basis functions on a
triangular face
    int Nquad = this->Points2D_tri().GetM();
    int nb_dof = this->GetNbDofBoundary(0);
    Matrix<Real_wp> ValuePhi(nb_dof, Nquad);
    for (int j = 0; j < Nquad; j++)
      {
        R3 pt; this->GetLocalCoordOnBoundary(0, this->Points2D_tri()(j), pt);
        VectR3 phi; this->ComputeValuesPhiRef(pt, phi);
        for (int i = 0; i < nb_dof; i++)
          ValuePhi(i, j) = DotProd(phi(i), this->NormaleLoc(0));
      }

    // constructing the numbers after a rotation of a triangular face
    // (or linear operators if dofs are not invariant by rotation)
    ElementReference<Dimension2, 3>::FindHdivRotationTri(this->order, this->Points2D_tri(), this->Weights2D_tri(), ValuePhi, nmap);
   }

};

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx

FindHdivRotationQuad

This method is available only for 2-D facet finite elements. It computes how degrees of freedom located on a quadrangular face are transformed when a rotation is applied to the face. It modifies the output argument nmap with the computed informations. This method is called in ConstructNumberMap of 3-D facet element classes.

Example :

class MyHexa : public HexahedronReference<1>
{
public:
  void ConstructNumberMap(NumberMap& nmap, int dg_form)
  {
    // constructing ValuePhi : trace of 3-D basis functions on a
quadrangular face
    int Nquad = this->Points2D_quad().GetM();
    int nb_dof = this->GetNbDofBoundary(0);
    Matrix<Real_wp> ValuePhi(nb_dof, Nquad);
    for (int j = 0; j < Nquad; j++)
      {
        R3 pt; this->GetLocalCoordOnBoundary(0, this->Points2D_tri()(j), pt);
        VectR3 phi; this->ComputeValuesPhiRef(pt, phi);
        for (int i = 0; i < nb_dof; i++)
          ValuePhi(i, j) = DotProd(phi(i), this->NormaleLoc(0));
      }

    // constructing the numbers after a rotation of a triangular face
    // (or linear operators if dofs are not invariant by rotation)
    ElementReference<Dimension2, 3>::FindHdivRotationQuad(this->order, this->Points2D_quad(), this->Weights2D_quad(), ValuePhi, nmap);
   }

};

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx

FindHcurlRotationTri

This method is available only for 2-D edge elements. It computes how degrees of freedom located on a triangular face are transformed when a rotation is applied to the face. It modifies the output argument nmap with the computed informations. This method is called in ConstructNumberMap of 3-D edge element classes. The last argument is used to select (or not) only interior dofs of the face.

Example :

class MyTetra : public TetrahedronReference<2>
{
public:
  void ConstructNumberMap(NumberMap& nmap, int dg_form)
  {
     // we use the 2-D surface finite element
     element_tri_surf->FindHcurlRotationTri(nmap, this->GetNbDofBoundaries());
   }

};

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx

FindHcurlRotationQuad

This method is available only for 2-D edges elements. It computes how degrees of freedom located on a quadrangular face are transformed when a rotation is applied to the face. It modifies the output argument nmap with the computed informations. This method is called in ConstructNumberMap of 3-D edge element classes. The last argument is used to select (or not) only interior dofs of the face.

Example :

class MyHexa : public HexahedronReference<2>
{
public:
  void ConstructNumberMap(NumberMap& nmap, int dg_form)
  {
     // we use the 2-D surface finite element
     element_quad_surf->FindHcurlRotationQuad(nmap, this->GetNbDofBoundaries());
   }

};

Location :

FiniteElement/FaceReference.hxx
FiniteElement/FaceReference.cxx

ComputeTriangularInterpolationProjectorOrder

This method is present for 3-D finite elements. You can provide manually a list of orders with the associated quadrature points. The interpolators are constructed for triangular faces such that ApplySh and ApplyShTranspose can be called with a order of the list. This construction is done automatically by the method (orders are collected by looking at neighboring elements).

Example :

  TetrahedronClassical tet;
  tet.ConstructFiniteElement(4);

  // computing interpolation for order 3 and 5
  IVect order(2); order(0) = 3; order(1) = 5;
  Vector<VectR2> pts(2); VectReal_wp weights;
  TriangleQuadrature::ConstructQuadrature(2*order(0), pts(0), weights);
  TriangleQuadrature::ConstructQuadrature(2*order(1), pts(1), weights);
  tet.ComputeTriangularInterpolationProjectorOrder(order, pts);

Location :

FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ComputeQuadrangularInterpolationProjectorOrder

This method is present for 3-D finite elements. You can provide manually a list of orders with the associated quadrature points. The interpolators are constructed for quadrangular faces such that ApplySh and ApplyShTranspose can be called with a order of the list. This construction is done automatically by the method (orders are collected by looking at neighboring elements).

Example :

  HexahedronGauss hex;
  hex.ConstructFiniteElement(4);

  // computing interpolation for order 3 and 5
  IVect order(2); order(0) = 3; order(1) = 5;
  Vector<VectR2> pts(2); VectReal_wp weights;
  QuadrangleQuadrature::ConstructQuadrature(2*order(0), pts(0), weights);
  QuadrangleQuadrature::ConstructQuadrature(2*order(1), pts(1), weights);
  hex.ComputeQuadrangularInterpolationProjectorOrder(order, pts);

Location :

FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

GetTriangularSurfaceFiniteElement

This method returns the 2-D finite element for triangles. It is the trace of the 3-D finite element on triangular faces.

Example :

  TetrahedronClassical tet;
  tet.ConstructFiniteElement(4);

  // if you need the 2-D finite element (trace on triangular faces)
  const ElementReference<Dimension2, 1>& tri = tet.GetTriangularSurfaceFiniteElement();

  // example with edge elements
  WedgeHcurlFirstFamily wed;
  wed.ConstructFiniteElement(4);

  const ElementReference<Dimension2, 2>& tri_edge = wed.GetTriangularSurfaceFiniteElement();

Location :

FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

GetQuadrangularSurfaceFiniteElement

This method returns the 2-D finite element for quadrilaterals. It is the trace of the 3-D finite element on quadrangular faces.

Example :

  HexahedronGauss hex;
  hex.ConstructFiniteElement(4);

  // if you need the 2-D finite element (trace on quadrangular faces)
  const ElementReference<Dimension2, 1>& quad = hex.GetQuadrangularSurfaceFiniteElement();

  // example with edge elements
  WedgeHcurlFirstFamily wed;
  wed.ConstructFiniteElement(4);

  const ElementReference<Dimension2, 2>& quad_edge = wed.GetQuadrangularSurfaceFiniteElement();

Location :

FiniteElement/VolumeReference.hxx
FiniteElement/VolumeReference.cxx

ComputeValuesPhi

This method computes the basis functions on the real element. They are linked with basis functions on the reference element with the following relations :

where J_i is the determinant of jacobian matrix DF_i. This method also takes into account the effect of face orientations (if there are signs or linear operators to compute global degrees of freedom from local degrees of freedom), such that the values of global basis functions is given.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
hex.FjElemNodal(s, pts, mesh, num_elem);

// if you want to compute phi_i for a given point
R3 pt_loc(0.4, 0.1, 0.2); // point on the reference element
// compute the jacobian matrix dfj = DFi(pt_loc) and its inverse
Matrix3_3 dfj, dfjm1;
hex.DFj(s, pts, pt_loc, dfj, mesh, num_elem);
GetInverse(dfj, dfjm1);

// then you can evaluate the basis functions (one component for scalar elements)
Vector<TinyVector<Real_wp, 1> > phi;
pyr.ComputeValuesPhi(pt_loc, phi, dfjm1, mesh_num, num_elem);

// example with edge elements :
HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(3);

// then you can evaluate the basis functions
VectR3 phi_hex;
hex.ComputeValuesPhi(pt_loc, phi_hex, dfjm1, mesh_num, num_elem);

VectReal_wp u(mesh_num.GetNbDof());
u.FillRand();

// they can be used directly to compute the solution on the chosen point
// (signs and rotation of dofs are already treated in ComputeValuesPhi)
R3 u_pt = 0;
for (int i = 0; i < phi_hex.GetM(); i++)
  u_pt += u(mesh_num.Element(num_elem).GetNumberDof(i)) * phi_hex(i);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeValuesGradientPhi

This method computes the gradient of basis functions on the real element. For edge elements, the curl is computed, whereas the divergence is computed for facet elements. These quantities are linked with the basis functions on the reference element with the following relations :

where J_i is the determinant of jacobian matrix DF_i. This method also takes into account the effect of face orientations (if there are signs or linear operators to compute global degrees of freedom from local degrees of freedom), such that the gradient (or curl/div) of global basis functions is given.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
hex.FjElemNodal(s, pts, mesh, num_elem);

// if you want to compute phi_i for a given point
R3 pt_loc(0.4, 0.1, 0.2); // point on the reference element
// compute the jacobian matrix dfj = DFi(pt_loc) and its inverse
Matrix3_3 dfj, dfjm1;
hex.DFj(s, pts, pt_loc, dfj, mesh, num_elem);
GetInverse(dfj, dfjm1);

// then you can evaluate the gradient of basis functions
VectR3 grad_phi;
pyr.ComputeValuesGradientPhi(pt_loc, grad_phi, dfjm1, mesh_num, num_elem);

// example with edge elements :
HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(3);

// then you can evaluate the curl of basis functions
VectR3 curl_phi;
hex.ComputeValuesGradientPhi(pt_loc, curl_phi, dfjm1, mesh_num, num_elem);

VectReal_wp u(mesh_num.GetNbDof());
u.FillRand();

// they can be used directly to compute the curl of solution on the chosen point
// (signs and rotation of dofs are already treated in ComputeValuesGradientPhi)
R3 curl_u_pt = 0;
for (int i = 0; i < curl_phi.GetM(); i++)
  curl_u_pt += u(mesh_num.Element(num_elem).GetNumberDof(i)) * curl_phi(i);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

GetCurlFromGradient

This method allows to compute the curl of a field from gradients for edge elements. For facet elements, this method will compute the divergence of the field. For scalar finite elements, this method equals curl_u to grad_u.

Example :

// in 3-D, we consider a field E with three components Ex, Ey, and Ez
// three gradients per components => nine values in total
// if you have several unknowns, you can allocate grad_E with 9*nb_unknowns
// and the curl will be computed for all the unknowns
Vector<VectReal_wp> grad_E(9);

// for each value, we allocate with the number of points (the curl is computed for each point)
int nb_pts = 20;
for (int i = 0; i < 9; i++)
  grad_E(i).Reallocate(nb_pts);

// filling the gradient of Ex for the first point :
int num_pt = 0;
grad_E(0)(num_pt) = 0.2; grad_E(1)(num_pt) = 0.5; grad_E(2)(num_pt) = 0.8; // grad(Ex) = (0.2, 0.5, 0.8) for this point

// gradient of Ey
grad_E(3)(num_pt) = 0.9; grad_E(4)(num_pt) = 0.3; grad_E(5)(num_pt) = 1.7;

// gradient of Ez
grad_E(6)(num_pt) = -0.5; grad_E(7)(num_pt) = -2.1; grad_E(8)(num_pt) = 0.1;

// then you can fill gradient for the next point
num_pt++;
grad_E(0)(num_pt) = 0.4; grad_E(1)(num_pt) = 2.7; grad_E(2)(num_pt) = 2.6;
grad_E(3)(num_pt) = 2.2; grad_E(4)(num_pt) = -1.3; grad_E(5)(num_pt) = -3.2;
grad_E(6)(num_pt) = -3.1; grad_E(7)(num_pt) = 1.8; grad_E(8)(num_pt) = 1.9;
// etc

// then you compute the curl for all points
Vector<VectReal_wp> curl_E;
FiniteElementHcurl<Dimension3>::GetCurlFromGradient(grad_E, curl_E);

// curl on the first point
num_pt = 0;
R3 curl1(curl_E(0)(num_pt), curl_E(1)(num_pt), curl_E(2)(num_pt));
// on the next point
num_pt++;
R3 curl2(curl_E(0)(num_pt), curl_E(1)(num_pt), curl_E(2)(num_pt));
// etc

// for facet elements, we compute the divergence
Vector<VectReal_wp> div_E;
FiniteElementHdiv<Dimension3>::GetCurlFromGradient(grad_E, div_E);

// divergence on the first point
num_pt = 0;
Real_wp div1 = div_E(0)(num_pt);
// on the next point
num_pt++;
Real_wp div2 = div_E(0)(num_pt);
// etc

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeValuesPhiBoundary

This method computes the basis functions on the real element for quadrature points on the given boundary. They are linked with basis functions on the reference element with the following relations :

where J_i is the determinant of jacobian matrix DF_i. This method also takes into account the effect of face orientations (if there are signs or linear operators to compute global degrees of freedom from local degrees of freedom), such that the values of global basis functions is given. The values of basis functions are stored in a matrix with the following convention

where x_k is the k-th quadrature point of the face (edge in 2-D) num_loc of the element num_elem.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemNodal(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for quadrature points
SetMatrices<Dimension3> mat;
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// and for the face
int num_loc = 1;
pyr.FjSurfaceElem(s, pts, mesh, num_elem, num_loc);
pyr.DFjSurfaceElem(s, pts, mat, mesh, num_elem, num_loc);

// then you can evaluate the basis functions on quadrature points of the face
Matrix<TinyVector<Real_wp, 1> > phi; // one component for scalar elements
pyr.ComputeValuesPhiBoundary(phi, mat, mesh_num, num_elem, num_loc);

// phi on first quadrature point :
int j = 3, num_pt = 0;
Real_wp phi_j = phi(j, num_pt);
// here j is the local dof number on the element, and not on the boundary
// because for some elements, all basis functions may contribute to the boundary

// example with edge elements :
HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(3);

// then you can evaluate the basis functions on quadrature points of the face
Matrix<R3> phi_hex;
hex.ComputeValuesPhiBoundary(phi_hex, mat, mesh_num, num_elem, num_loc);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeValuesGradientPhiBoundary

This method computes the gradient of basis functions on the real element for quadrature points on the given boundary. For edge elements, the curl is computed, whereas the divergence is computed for facet elements. These quantities are linked with basis functions on the reference element with the following relations :

where J_i is the determinant of jacobian matrix DF_i. This method also takes into account the effect of face orientations (if there are signs or linear operators to compute global degrees of freedom from local degrees of freedom), such that the gradient (or curl/div) of global basis functions is given. The gradient of basis functions are stored in a matrix with the following convention

where x_k is the k-th quadrature point of the face (edge in 2-D) num_loc of the element num_elem.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts;
VectR3 s; int num_elem = 40;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemNodal(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for quadrature points
SetMatrices<Dimension3> mat;
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// and for the face
int num_loc = 1;
pyr.FjSurfaceElem(s, pts, mesh, num_elem, num_loc);
pyr.DFjSurfaceElem(s, pts, mat, mesh, num_elem, num_loc);

// then you can evaluate the gradient of basis functions on quadrature points of the face
Matrix<R3> grad_phi;
pyr.ComputeValuesGradientPhiBoundary(grad_phi, mat, mesh_num, num_elem, num_loc);

// grad(phi) on first quadrature point :
int j = 3, num_pt = 0;
R3 grad_phi_j = grad_phi(j, num_pt);
// here j is the local dof number on the element, and not on the boundary
// because for some elements, all basis functions may contribute to the boundary

// example with edge elements :
HexahedronHcurlFirstFamily hex;
hex.ConstructFiniteElement(3);

// then you can evaluate the curl of basis functions on quadrature points of the face
Matrix<R3> curl_phi_hex;
hex.ComputeValuesGradientPhiBoundary(curl_phi_hex, mat, mesh_num, num_elem, num_loc);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeNodalValues

This method computes the nodal values of a field (in the real space) from components of this field on degrees of freedom of the element num_elem. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in Uloc(m) where m is the unknown number.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global solution on all the mesh
int nb_unknowns = 2;
VectReal_wp u_glob(mesh_num.GetNbDof()*nb_unknowns);
u_glob.FillRand();

// extracting the local components of the solution on the selected element
int num_elem = 40; Vector<VectReal_wp> u_loc(nb_unknowns);
mesh_num.number_map.GetLocalUnknownVector(mesh_num, u_glob, num_elem, u_loc);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemNodal(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for nodal points
SetMatrices<Dimension3> mat;
pyr.DFjElemNodal(s, pts, mat, mesh, num_elem);

// computation of the solution on nodal points of the element
Vector<VectReal_wp> u_nodal;
pyr.ComputeNodalValues(mat, u_loc, u_nodal, mesh, num_elem);

// value on a node
int num_unknown = 0, num_pt = 4;
Real_wp u = u_nodal(num_unknown)(num_pt);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeQuadratureValues

This method computes the values of a field (in the real space) on quadrature points from components of this field on degrees of freedom of the element num_elem. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in Uloc(m) where m is the unknown number.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global solution on all the mesh
int nb_unknowns = 2;
VectReal_wp u_glob(mesh_num.GetNbDof()*nb_unknowns);
u_glob.FillRand();

// extracting the local components of the solution on the selected element
int num_elem = 40; Vector<VectReal_wp> u_loc(nb_unknowns);
mesh_num.number_map.GetLocalUnknownVector(mesh_num, u_glob, num_elem, u_loc);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemNodal(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for quadrature points
SetMatrices<Dimension3> mat;
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// computation of the solution on quadrature points of the element
Vector<VectReal_wp> u_quad;
pyr.ComputeQuadratureValues(mat, u_loc, u_quad, mesh, num_elem);

// value on a point
int num_unknown = 0, num_pt = 4;
Real_wp u = u_quad(num_unknown)(num_pt);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeProjectionDof

This method projects a function (in real space) on degrees of freedom of the element num_elem. The input array feval contains the evaluation of the function on dof points. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in feval(m) where m is the unknown number. The projection is performed on global basis functions, such that the result can be directly inserted in the global solution.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global projected field on the mesh
VectReal_wp f_glob(mesh_num.GetNbDof());
int num_elem = 15;

// computing transformation Fi for dof points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemDof(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for dof points
SetMatrices<Dimension3> mat;
pyr.DFjElemDof(s, pts, mat, mesh, num_elem);

// evaluation of the functions to be projected
// f0 = sin(x+y*z), f1 = cos(x*y - z)
// these functions must be evaluated on dof points
int nb_unknowns = 2;
Vector<VectReal_wp> f_eval(nb_unknowns), f_proj;
f_eval(0).Reallocate(pyr.GetNbPointsDof()); f_eval(1).Reallocate(pyr.GetNbPointsDof());
for (int i = 0; i < pyr.GetNbPointsDof(); i++)
  {
    Real_wp x = pts.GetPointDof(i)(0), y = pts.GetPointDof(i)(1), z = pts.GetPointDof(i)(2);
    f_eval(0)(i) = sin(x + y*z); f_eval(1)(i) = cos(x*y - z);
  }

// projection on the element
pyr.ComputeProjectionDof(mat, f_eval, f_proj, mesh_num, num_elem);

// then you can insert the values on the global vector (here we insert only first unknown)
for (int i = 0; i < pyr.GetNbDof(); i++)
  f_glob(mesh_num.Element(num_elem).GetNumberDof(i)) = f_proj(i);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeProjectionSurfaceDof

This method projects a function (in real space) on degrees of freedom of the face num_loc of the element num_elem. The input array feval contains the evaluation of the function on dof points of the face. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in feval(m) where m is the unknown number. The projection is performed on global basis functions, such that the result can be directly inserted in the global solution.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global projected field on the mesh
VectReal_wp f_glob(mesh_num.GetNbDof());
int num_elem = 15;

// computing transformation Fi for dof points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemDof(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for dof points
SetMatrices<Dimension3> mat;
pyr.DFjElemDof(s, pts, mat, mesh, num_elem);

// points of the face
int num_loc = 1;
pyr.FjSurfaceElemDof(s, pts, mesh, num_elem, num_loc);
pyr.DFjSurfaceElemDof(s, pts, mat, mesh, num_elem, num_loc);

// evaluation of the functions to be projected
// f0 = sin(x+y*z), f1 = cos(x*y - z)
// these functions must be evaluated on dof points of the boundary
int nb_unknowns = 2;
Vector<VectReal_wp> f_eval(nb_unknowns), f_proj;
int N = pyr.GetNbPointsDofSurface(num_loc);
f_eval(0).Reallocate(N); f_eval(1).Reallocate(N);
for (int i = 0; i < N; i++)
  {
    Real_wp x = pts.GetPointDofBoundary(i)(0), y = pts.GetPointDofBoundary(i)(1), z = pts.GetPointDofBoundary(i)(2);
    f_eval(0)(i) = sin(x + y*z); f_eval(1)(i) = cos(x*y - z);
  }

// projection on the face of the element
pyr.ComputeProjectionSurfaceDof(mat, f_eval, f_proj, mesh_num, num_elem, num_loc);

// then you can insert the values on the global vector (here we insert only first unknown)
for (int i = 0; i < pyr.GetNbDofBoundary(num_loc); i++)
  {
    int j = pyr.GetLocalNumber(num_loc, i);
    f_glob(mesh_num.Element(num_elem).GetNumberDof(j)) = f_proj(i);
  }

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeIntegral

This method computes the integral of a function over the real element K_e against basis functions of the element num_elem:

The input array feval contains the evaluation of the function on quadrature points. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in feval(m) where m is the unknown number. The integral is performed with global basis functions, such that the result can be directly added to the global vector.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global results
VectReal_wp res_glob(mesh_num.GetNbDof()); res_glob.Zero();
int num_elem = 15;

// computing transformation Fi for quadrature points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemQuadrature(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for quadrature points
SetMatrices<Dimension3> mat;
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// evaluation of the functions to be treated
// f0 = sin(x+y*z), f1 = cos(x*y - z)
// these functions must be evaluated on quadrature points
int nb_unknowns = 2;
Vector<VectReal_wp> f_eval(nb_unknowns), res_loc;
int N = pyr.GetNbPointsQuadratureInside();
f_eval(0).Reallocate(N); f_eval(1).Reallocate(N);
for (int i = 0; i < N; i++)
  {
    Real_wp x = pts.GetPointQuadrature(i)(0), y = pts.GetPointQuadrature(i)(1), z = pts.GetPointQuadrature(i)(2);
    f_eval(0)(i) = sin(x + y*z); f_eval(1)(i) = cos(x*y - z);
  }

// integral against basis functions (on the real element)
pyr.ComputeIntegral(mat, f_eval, res_loc, mesh_num, num_elem);

// then you can add the values on the global vector (here we add only first unknown)
for (int i = 0; i < pyr.GetNbDof(); i++)
  res_glob(mesh_num.Element(num_elem).GetNumberDof(i)) += res_loc(i);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeIntegralGradient

This method computes the integral of a function over the real element K_e against gradient (or curl/div) of basis functions of the element num_elem:

The input array feval contains the evaluation of the function on quadrature points. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in feval(m) where m is the unknown number. The integral is performed with global basis functions, such that the result can be directly added to the global vector.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global results
VectReal_wp res_glob(mesh_num.GetNbDof()); res_glob.Zero();
int num_elem = 15;

// computing transformation Fi for quadrature points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemQuadrature(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for quadrature points
SetMatrices<Dimension3> mat;
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// evaluation of the function to be treated
// f = (sin(x+y*z), cos(x*y - z), exp(x+y+z))
// these functions must be evaluated on quadrature points
int nb_unknowns = 1;
Vector<VectReal_wp> f_eval(nb_unknowns), res_loc;
int N = pyr.GetNbPointsQuadratureInside(); f_eval(0).Reallocate(3*N);
for (int i = 0; i < N; i++)
  {
    Real_wp x = pts.GetPointQuadrature(i)(0), y = pts.GetPointQuadrature(i)(1), z = pts.GetPointQuadrature(i)(2);
    f_eval(0)(3*i) = sin(x + y*z); f_eval(0)(3*i+1) = cos(x*y - z); f_eval(0)(3*i+2) = exp(x+y+z);
  }

// integral against gradient of basis functions (on the real element)
// for edge elements, gradient is replaced by the curl
pyr.ComputeIntegralGradient(mat, f_eval, res_loc, mesh_num, num_elem);

// then you can add the values on the global vector
for (int i = 0; i < pyr.GetNbDof(); i++)
  res_glob(mesh_num.Element(num_elem).GetNumberDof(i)) += res_loc(i);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeGaussIntegralSurface

This method computes the integral of a function over the boundary num_loc of the real element K_e against basis functions of the element num_elem:

The integral is computed with Gauss-Legendre points (even if the finite element is based on Gauss-Lobatto points), such that the result should be more accurate than with ComputeIntegralSurface. The input array feval contains the evaluation of the function on quadrature points of the boundary. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in feval(m) where m is the unknown number. The integral is performed with global basis functions, such that the result can be directly added to the global vector.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

HexahedronLobatto hex;
hex.ConstructFiniteElement(3);
hex.SetMesh(mesh);

// global results
VectReal_wp res_glob(mesh_num.GetNbDof()); res_glob.Zero();
int num_elem = 15; int num_loc = 2;

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
hex.FjElemNodal(s, pts, mesh, num_elem);

VectR2 points_sq; VectReal_wp weights_sq;
QuadrangleQuadrature::ConstructQuadrature(2*hex.GetOrder(), points_sq, weights_sq);

int N = points_sq.GetM();
Vector<Matrix3_3> dfjm1(N);
VectReal_wp weights(N), ds(N);

// evaluation of the function to be treated
// f = sin(x+y*z)
// these functions must be evaluated on quadrature points
int nb_unknowns = 1; Matrix3_3 dfj; R3 normale;
Vector<VectReal_wp> f_eval(nb_unknowns), res_loc;
f_eval(0).Reallocate(N);
for (int i = 0; i < N; i++)
  {
    // point in 3-D on the reference element
    R3 point_loc, point_glob;
    hex.GetLocalCoordOnBoundary(num_loc, points_sq(i), point_loc);

    // quadrature point on the real element
    hex.Fj(s, pts, point_loc, point_glob, mesh, num_elem);
    hex.DFj(s, pts, point_loc, dfj, mesh, num_elem);
    GetInverse(dfj, dfjm1(i));
    hex.GetNormale(dfjm1(i), normale, ds(i), num_loc);
    weights(i) = ds(i)*weights_sq(i);

    Real_wp x = point_glob(0), y = point_glob(1), z = point_glob(2);
    f_eval(0)(i) = sin(x + y*z);
  }

// integral against basis functions (on a boundary of the real element)
hex.ComputeGaussIntegralSurface(dfjm1, weights, ds, f_eval, res_loc, mesh_num, num_elem, num_loc);

// then you can add the values on the global vector
for (int i = 0; i < hex.GetNbDof(); i++)
  res_glob(mesh_num.Element(num_elem).GetNumberDof(i)) += res_loc(i);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeIntegralSurface

This method computes the integral of a function over the boundary num_loc of the real element K_e against basis functions of the element num_elem:

The input array feval contains the evaluation of the function on quadrature points. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in feval(m) where m is the unknown number. The integral is performed with global basis functions, such that the result can be directly added to the global vector.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global results
VectReal_wp res_glob(mesh_num.GetNbDof()); res_glob.Zero();
int num_elem = 15;

// computing transformation Fi for quadrature points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemQuadrature(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for quadrature points
SetMatrices<Dimension3> mat;
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// points on the boundary
int num_loc = 2;
pyr.FjElemSurface(s, pts, mesh, num_elem, num_loc);
pyr.DFjElemSurface(s, pts, mat, mesh, num_elem, num_loc);

// evaluation of the functions to be treated
// f0 = sin(x+y*z), f1 = cos(x*y - z)
// these functions must be evaluated on quadrature points
int nb_unknowns = 2;
Vector<VectReal_wp> f_eval(nb_unknowns), res_loc;
int N = pyr.GetNbQuadBoundary(num_loc);
f_eval(0).Reallocate(N); f_eval(1).Reallocate(N);
for (int i = 0; i < N; i++)
  {
    R3 pt_glob = pts.GetPointQuadratureBoundary(i);
    Real_wp x = pt_glob(0), y = pt_glob(1), z = pt_glob(2);
    f_eval(0)(i) = sin(x + y*z); f_eval(1)(i) = cos(x*y - z);
  }

// integral against basis functions (on the boundary of the real element)
pyr.ComputeIntegralSurface(mat, f_eval, res_loc, mesh_num, num_elem, num_loc);

// then you can add the values on the global vector (here we add only first unknown)
for (int i = 0; i < pyr.GetNbDof(); i++)
  res_glob(mesh_num.Element(num_elem).GetNumberDof(i)) += res_loc(i);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeIntegralSurfaceGradient

This method computes the integral of a function over the boundary num_loc of the real element K_e against gradient (or curl/div) of basis functions of the element num_elem:

The input array feval contains the evaluation of the function on quadrature points. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in feval(m) where m is the unknown number. The integral is performed with global basis functions, such that the result can be directly added to the global vector.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global results
VectReal_wp res_glob(mesh_num.GetNbDof()); res_glob.Zero();
int num_elem = 15;

// computing transformation Fi for quadrature points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemQuadrature(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for quadrature points
SetMatrices<Dimension3> mat;
pyr.DFjElemQuadrature(s, pts, mat, mesh, num_elem);

// points on the boundary
int num_loc = 2;
pyr.FjElemSurface(s, pts, mesh, num_elem, num_loc);
pyr.DFjElemSurface(s, pts, mat, mesh, num_elem, num_loc);

// evaluation of the function to be treated
// f = (sin(x+y*z), cos(x*y - z), exp(x+y+z))
// these functions must be evaluated on quadrature points
int nb_unknowns = 1;
Vector<VectReal_wp> f_eval(nb_unknowns), res_loc;
int N = pyr.GetNbQuadBoundary(num_loc);
f_eval(0).Reallocate(3*N);
for (int i = 0; i < N; i++)
  {
    R3 pt_glob = pts.GetPointQuadratureBoundary(i);
    Real_wp x = pt_glob(0), y = pt_glob(1), z = pt_glob(2);
    f_eval(0)(3*i) = sin(x + y*z); f_eval(0)(3*i+1) = cos(x*y - z); f_eval(0)(3*i+2) = exp(x+y+z);
  }

// integral against gradient of basis functions (on a face of the real element)
// for edge elements, gradient is replaced by the curl
pyr.ComputeIntegralSurfaceGradient(mat, f_eval, res_loc, mesh_num, num_elem, num_loc);

// then you can add the values on the global vector
for (int i = 0; i < pyr.GetNbDof(); i++)
  res_glob(mesh_num.Element(num_elem).GetNumberDof(i)) += res_loc(i);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeValueBoundary

This method computes the values of a field for nodal points of the boundary num_loc of the element num_elem. The computation is made on the real element. The input array u_loc contains the components of the field on the degrees of freedom of the element. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in u_loc(m) where m is the unknown number.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global field
VectReal_wp u_glob(mesh_num.GetNbDof());
u_glob.FillRand();

// we extract the local components for an element
int num_elem = 15; int nb_unknowns = 1;
Vector<VectReal_wp> u_loc(1);
mesh_num.number_map.GetLocalUnknownVector(mesh_num, u_glob, num_elem, u_loc);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemNodal(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for nodal points
SetMatrices<Dimension3> mat;
pyr.DFjElemNodal(s, pts, mat, mesh, num_elem);

// DFi on nodal points of boundary
int num_loc = 1;
mat.ComputeNodalBoundary(num_loc, pyr);

// values of u on nodal points of a boundary
Vector<Vector<TinyVector<Real_wp, 1> > > u_nodal;
// number of components is 1 for scalar elements, 2 or 3 for vectorial elements
pyr.ComputeValueBoundary(mat, u_loc, u_nodal, mesh, num_elem, num_loc);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeGradientBoundary

This method computes the gradient of a field for nodal points of the boundary num_loc of the element num_elem. For edge elements, the gradient is replaced by the curl, and for facet elements by the divergence. The computation is made on the real element. The input array u_loc contains the components of the field on the degrees of freedom of the element. The field can comprise several unknowns, that's why a vector of vectors is required, each unknown is stored in u_loc(m) where m is the unknown number.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global field
VectReal_wp u_glob(mesh_num.GetNbDof());
u_glob.FillRand();

// we extract the local components for an element
int num_elem = 15; int nb_unknowns = 1;
Vector<VectReal_wp> u_loc(1);
mesh_num.number_map.GetLocalUnknownVector(mesh_num, u_glob, num_elem, u_loc);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemNodal(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for nodal points
SetMatrices<Dimension3> mat;
pyr.DFjElemNodal(s, pts, mat, mesh, num_elem);

// DFi on nodal points of boundary
int num_loc = 1;
mat.ComputeNodalBoundary(num_loc, pyr);

// gradient of u on nodal points of a boundary
Vector<Vector<TinyVector<Real_wp, 3> > > grad_u_nodal;
// number of components is 2 or 3 for scalar elements, 1 or 3 for vectorial elements
pyr.ComputeGradientBoundary(mat, u_loc, grad_u_nodal, mesh, num_elem, num_loc);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeValueNodalBoundary

This method extracts the values of u on nodal points of the boundary num_loc from values on nodal points of the element.

Example :

Mesh<Dimension3> mesh;
MeshNumbering<Dimension3> mesh_num(mesh);

PyramidClassical pyr;
pyr.ConstructFiniteElement(3);
pyr.SetMesh(mesh);

// global solution on all the mesh
int nb_unknowns = 2;
VectReal_wp u_glob(mesh_num.GetNbDof()*nb_unknowns);
u_glob.FillRand();

// extracting the local components of the solution on the selected element
int num_elem = 40; Vector<VectReal_wp> u_loc(nb_unknowns);
mesh_num.number_map.GetLocalUnknownVector(mesh_num, u_glob, num_elem, u_loc);

// computing transformation Fi for nodal points
SetPoints<Dimension3> pts; VectR3 s;
mesh.GetVerticesElement(num_elem, s);
pyr.FjElemNodal(s, pts, mesh, num_elem);

// computing jacobian matrices DFi for nodal points
SetMatrices<Dimension3> mat;
pyr.DFjElemNodal(s, pts, mat, mesh, num_elem);

// computation of the solution on nodal points of the element
Vector<VectReal_wp> u_nodal;
pyr.ComputeNodalValues(mat, u_loc, u_nodal, mesh, num_elem);

// you can compute the value on nodal points of a boundary
int num_loc = 1; VectReal_wp u_boundary;
pyr.ComputeValueNodalBoundary(u_nodal(0), u_boundary, num_loc);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ComputeLocalProlongation

This method computes the prolongation matrix that can be used to compute the prolongation of a field from a coarse order to a fine order. If the fine order is lower than GetMaximalOrderRestriction(), the projection matrix is stored. If the order is higher, the matrix is not stored, and the object proj is filled. To apply the prolongation operator, the method ProjectScalar is called. For the restriction operator, the method TransposeProjectScalar is called.

Example :

HexahedronGauss hex_fine;
hex_fine.ConstructFiniteElement(4);

HexahedronGauss hex_coarse;
hex_coarse.ConstructFiniteElement(2);

// prolongation operator
Matrix<Real_wp> LocalProlongation;
FiniteElementProjector* proj;
proj = hex_fine->GetNewNodalInterpolation();
hex_fine.ComputeLocalProlongation(*proj, LocalProlongation, elt_coarse, elt_fine);

// example of use for the object proj
VectReal_wp Uc(hex_coarse.GetNbDof()); U.FillRand();
VectReal_wp Uf(hex_fine.GetNbDof());
proj->ProjectScalar(Uc, Uf); // prolongation : Uf = P Uc

proj->TransposeProjectScalar(Uf, Uc); // restriction : Uc = P^T Uf

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ApplyRotationCyclic

This method applies a rotation on the provided vector u. This rotation is applied only for vectorial elements (u is not modified for scalar elements). The vector u is replaced by vector v given as

The angle α is provided by the parameter fft.

Example :

// number of points for FFT
int N = 8;
FftInterface<Complex_wp> fft;
fft.Init(N); // computation of alpha = 2pi/N, sin and cos of this angle

// vector to rotate
TinyVector<Complex_wp, 3> v;
v.Init(complex<double>(0.5, 0.2), complex<double>(2.3, 1.7), complex<double>(-0.4, -1.8));

// applying the rotation
int n = 3; // mode number
FiniteElementHcurl<Dimension3>::ApplyRotationCyclic(n, fft, v);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx

ApplyInverseRotationCyclic

This method applies a rotation on the provided vector u. This rotation is applied only for vectorial elements (u is not modified for scalar elements). The vector u is replaced by vector v given as

The angle α is provided by the parameter fft.

Example :

// number of points for FFT
int N = 8;
FftInterface<Complex_wp> fft;
fft.Init(N); // computation of alpha = 2pi/N, sin and cos of this angle

// vector to rotate (with angle -n alpha)
TinyVector<Complex_wp, 3> v;
v.Init(complex<double>(0.5, 0.2), complex<double>(2.3, 1.7), complex<double>(-0.4, -1.8));

// applying the rotation
int n = 3; // mode number
FiniteElementHcurl<Dimension3>::ApplyInverseRotationCyclic(n, fft, v);

// if you have several vectors to rotate, you can put them in a single vector
int nb_vec = 2;
Vector<Complex_wp> u(3*nb_vec);
u(0) = v(0); u(1) = v(1); u(2) = v(2); // first vector to rotate
u(3) = complex<double>(2.5, -0.7); u(4) = complex<double>(-2.9, 1.1); u(5) = complex<double>(-2.4, 1.5); // second vector to rotate

// the two vectors are rotated
FiniteElementHcurl<Dimension3>::ApplyInverseRotationCyclic(n, fft, u);

Location :

FiniteElement/FiniteElementH1.hxx   FiniteElement/FiniteElementH1.cxx
FiniteElement/FiniteElementHcurl2D.hxx   FiniteElement/FiniteElementHcurl2D.cxx
FiniteElement/FiniteElementHcurl3D.hxx   FiniteElement/FiniteElementHcurl3D.cxx
FiniteElement/FiniteElementHdiv.hxx   FiniteElement/FiniteElementHdiv.cxx
